The future of the HD truck suspension world is here. Carli suspension has spent months developing this dynamic valving shock package that responsively and constantly adapts to the terrain for the smoothest ride possible. An on board computer and advanced algorithm constantly adjusts the shocks hundreds of times per second. Carli pre-programed three presets for highway, rock crawling, and high speed off road driving.
The system uses a sensor mounted on top of the engine to determine vehicle pitch/roll as well as sensors tied into the OBD2 to read the truck's speed, brake pedal position, accelerator pedal position, and steering wheel rotation. That info then gets interpreted by an algorithm to allow individual adjustment of each shock.
Damping is variable in any setting, meaning the truck can be supple on small chatter, then detect a large impact, rise or dip, and ramp up instantly. That variable damping dramatically reduces body roll in corners in any setting as well and allows for insane small bump sensitivity without giving up big hit composure. This system will be available for both 2.5 and 4.5 heights.
If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package. We recommend this block for trucks with a two piece driveshaft and this block for trucks with a one piece driveshaft.
This system fits Ford F-250 and Ford F-350 4x4 trucks from 2017, 2018, 2019, 2020, 2021, 2022, 2023 and Current
Please note if your truck is a 2023+ Platinum/Limited trim equipped with factory headlight angle / load scale sensors you will need these brackets to fix the sensors in place and remove the sensor linkage.
SPECIFICATIONS
-2.5" Front Lift/ 3.5" lift on 2020+ trucks
-Dramatically improved on and off road performance
-Custom coil spring rate
-Maintains steering geometry
APPLICATIONS
This kit will fit all 2017-2019 Ford F250/F350 Super Duty 4x4 pickups.
FITMENT GUIDE
Year Model Part Number
2017-19 FORD F250 / F350 4x4 CS-FLVL-PT25-17
| Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|
| 9″ | 13″ | 2.5″ | 37″ x 12.5″ |
| F250/350 Lift Height | TREMOR Lift Height |
|---|---|
| 3.5″ | 1.5″ |

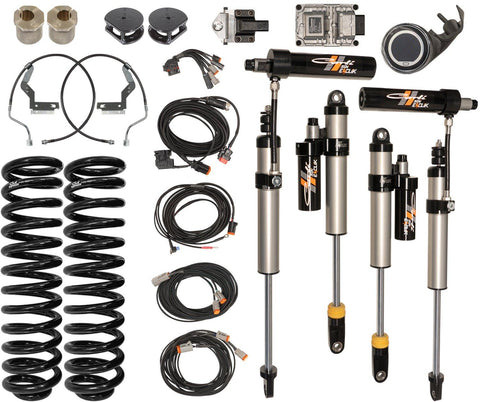

BASE KIT INCLUDES:
CS-FLC-05 Front Leveling Coils

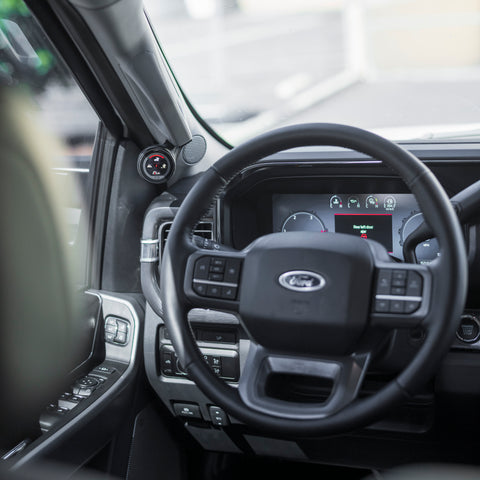

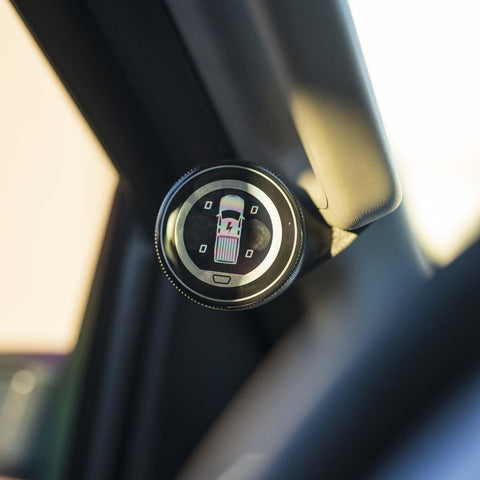

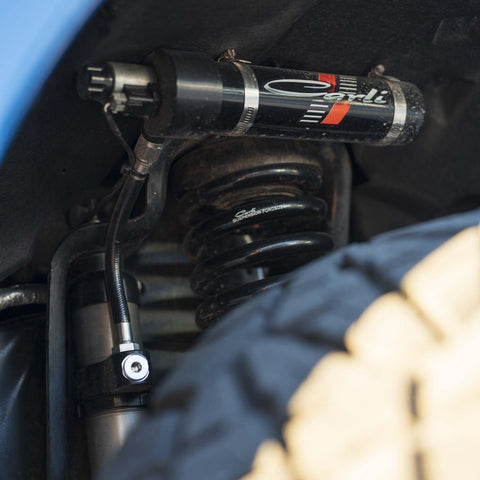

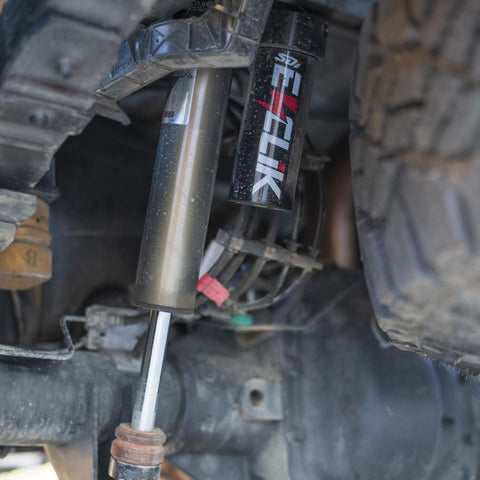

CS-FEV25SPKG-LVL-05 Carli/SDI Custom Tuned 2.5" Shocks, Harnesses, ECU, Touch Screen, & IMU
CS-FORDBBL-LVL-17-F Front Brake Lines
CS-FCASTERSHIM-2.5 2° Caster Shims
CS-FBDF-2.5-17 High Clearance Bump Stop Drops, Front
CS-FATB-17 Track Bar
Customer Reviews
I can’t say enough good things about CJC! Every single person that was involved in the transformation of my 22’ F-250 from a stock Tremor to a now fully capable BIG truck was on point! Great communication, easy to deal with, great scheduling and the truck was completed when they said it would be. I as well as many others highly recommend CJC they are one of few companies that are doing it right in every area.
I know the question was about the E-Venture System and it is amazing as well!!
This is by far the best level kit I have ever bought. Carli Eventire 3.5, added all the options including Baja design lights and winch. CJC really knows how to analyze the needsl of the customer and install professionally.
Carli knows how to build a suspensiontsystems that work on and off road. I would highly recommend!
A Very happy customer!
This system is well-built, rides well, and is very tunable.
CJC also did an amazing job of packing and shipping all the parts to me. They were up-front about lead times and helped answer some basic and detailed questions from me during the install.
The Good:
Once installed, the system is much smoother on local streets and highways. In street mode, it rides about the same as stock except it takes out about 10% to 15% of the harshness in the ride over small and big bumps, but still feels stable and didn't make me feel like I need to re-learn how to drive the truck. Switching to Desert mode changes the behavior, allowing the body to lean more on bigger dips, but getting less unsettled on bigger changes like potholes at highway speed. Switching between the 3 different modes is seemless and really changes the behavior of the truck.
All the components are well built, and went together very smoothly.
The Other:
Beware that this lift kit isn't necessarily for the home DIYer who doesn't regularly work on heavy duty trucks.
I installed the full kit including radius arms and long travel leaves in my driveway with floor jacks and jackstands by myself, so it is definitely doable. I would highly suggest that you have one or more friends available to help with holding and manipulating some of the larger components. Also, make sure you have a solid weekend (if not more) if you are doing it in your driveway / without a lift.
This kit also requires some bigger tools that your average home DIYer may not have, such as a Torque wrench that goes over 250 ft-lbs, a 1 5/16 socket and wrench, or a 1 3/16" crows foot. I have bigger tools, but in several cases didn't have the exact size(s) needed for this kit as they are getting outside of my "normal tool" collection for cars I regularly work on. If you regularly work on your Diesel trucks suspension, or big equipment you may have all of these tools, but I did not.
If I had it to do over again, I would likely end up paying someone to do the install for me, or ensure I had secured at least 1 friend with a lift who works on bigger vehicles just to cut down on slow downs and delays.
The only other warning I will give is that the E-Venture system requires use of the ODB-2 port and may not be compatible with other OBD-2 devices. I did see that the system used OBD-2, but had assumed that the system was tested to work with other common OBD-2 devices you see on newer Diesel trucks, so as a piggy-back tuner. I had planned to install a tuner at the same time, but after reaching out to Carli and SDI, I found that the suspension system is not compatible with the tuner I was planning to use. There may be a workable solution to this long term, but at this time I opted to bypass on installing the tuner. That said, had I known about this limitation I likely would have gone with the Carli Pintop system instead.
None of the "others" listed here are negatives on either CJC or Carli. The suspension system and support provided was great. They are just some notes to try and help others who may be in a similar situation that I was.
Great products and very knowledgeable staff
Who would know that a power stroke could ride as good as a F150 or even better?
This Carly kit is unbelievably awesome!
