The future of the HD truck suspension world is here. Carli suspension has spent months developing this dynamic valving shock package that responsively and constantly adapts to the terrain for the smoothest ride possible. An on board computer and advanced algorithm constantly adjusts the shocks hundreds of times per second. Carli pre-programed three presets for highway, rock crawling, and high speed off road driving.
The system uses a sensor mounted on top of the engine to determine vehicle pitch/roll as well as sensors tied into the OBD2 to read the truck's speed, brake pedal position, accelerator pedal position, and steering wheel rotation. That info then gets interpreted by an algorithm to allow individual adjustment of each shock.
Damping is variable in any setting, meaning the truck can be supple on small chatter, then detect a large impact, rise or dip, and ramp up instantly. That variable damping dramatically reduces body roll in corners in any setting as well and allows for insane small bump sensitivity without giving up big hit composure. This system will be available for both 2.5 and 4.5 heights.
If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package. We recommend this block for trucks with a two piece driveshaft and this block for trucks with a one piece driveshaft.
This system fits Ford F-250 and Ford F-350 4x4 trucks from 2017, 2018, 2019, 2020, 2021, 2022, 2023 and Current
Please note if your truck is a 2023+ Platinum/Limited trim equipped with factory headlight angle / load scale sensors you will need these brackets to fix the sensors in place and remove the sensor linkage.
SPECIFICATIONS
-2.5" Front Lift/ 3.5" lift on 2020+ trucks
-Dramatically improved on and off road performance
-Custom coil spring rate
-Maintains steering geometry
APPLICATIONS
This kit will fit all 2017-2019 Ford F250/F350 Super Duty 4x4 pickups.
FITMENT GUIDE
Year Model Part Number
2017-19 FORD F250 / F350 4x4 CS-FLVL-PT25-17
Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
---|---|---|---|
9″ | 13″ | 2.5″ | 37″ x 12.5″ |
F250/350 Lift Height | TREMOR Lift Height |
---|---|
3.5″ | 1.5″ |
BASE KIT INCLUDES:
CS-FLC-05 Front Leveling Coils

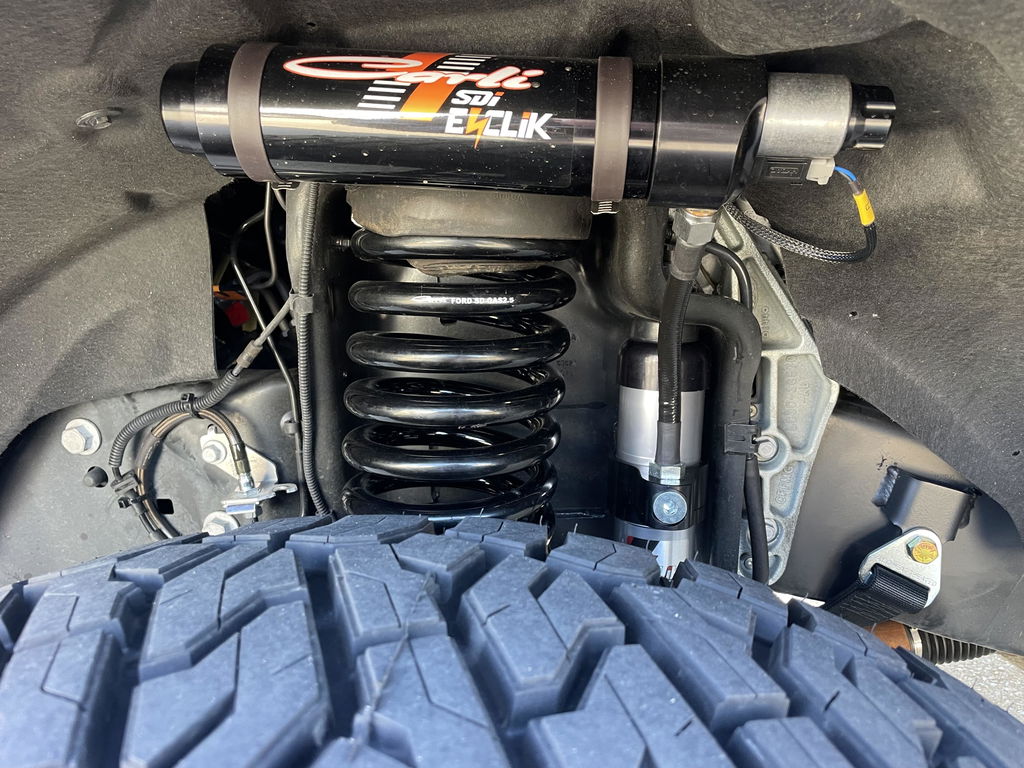

CS-FEV25SPKG-LVL-05 Carli/SDI Custom Tuned 2.5" Shocks, Harnesses, ECU, Touch Screen, & IMU
CS-FORDBBL-LVL-17-F Front Brake Lines
CS-FCASTERSHIM-2.5 2° Caster Shims
CS-FBDF-2.5-17 High Clearance Bump Stop Drops, Front
CS-FATB-17 Track Bar
