Carli 2017-2022 Ford Super Duty Carli Pathfinder 2.5 (Level Height) Suspension System

Name: Carli 2017-2022 Ford Super Duty Carli Pathfinder 2.5 (Level Height) Suspension System
Brand: Carli Suspension
SKU: CS-FLVL-PF-17
Price: 3889.0 USD
Availability: InStock

CS-FLVL-PF-17

Free Ships in 1-5 Business Days

$3,889.00

Application

Diesel

Gas

Quantity

USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.

CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The Pintop 2.5 system offers phenomenal capability and ride no matter the situation thanks to the increased shock diameter and reservoirs for heat dissipation.

SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck’s ride. To keep the factory ride, select the end link option.

LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.

RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.

The Carli Pathfinder level height system is designed to be the perfect middle ground system between the Backcountry and Pintop. It has the smooth on road ride of the Backcountry with the controlled, planted feel of a larger 2.5" diameter shock. If you're looking to have a do it all truck but don't need the all out off road capability of the King shock tuning options, this is the system for you. If you have constant load like a camper etc, we recommend the Pintop system as we offer HD valving options for that shock package.

The Carli Pathfinder 2.5 suspension system offers a smooth and controlled ride ideal for light to moderate off-road adventures, though it’s less suited for aggressive, high-speed terrain compared to the Pintop. On paved roads, it excels by absorbing small to medium bumps effortlessly, providing a comfortable ride without demanding a sporty driving style.

Designed for drivers who prioritize daily comfort but want reliable off-road performance, it features Carli-SPEC 2.5” aluminum shocks with a durable hard-anodized finish and black-anodized billet components for a sleek, premium look. High-performance red shock oil ensures consistent damping and long-lasting reliability. With 55% more piston surface area than 2.0” shocks, it manages heat better and extends maintenance intervals. The Pathfinder strikes the perfect balance for Super Duty owners seeking a premium, affordable, and road-focused suspension that can handle tough off-road conditions.

For the best ride, we recommend adding the Carli torsion sway bar and full replacement rear leaf packs. Both are a massive upgrade on and of road, and address key weak points of the factory parts.

The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1″ and the rear 1″-1.5″ depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 2.5″ Lift Systems from the previous generation, 2017-19, are now 3.5″ for the 2020.

If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package. If you find your truck is rear low because the factory block is Iess than 3" tall, we recommend this block kit.

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2017 to 2022.

SPECIFICATIONS

-2.5" Front Lift/ 3.5" lift on 2020+ trucks

-Significantly improved on and off road performance

-Custom coil spring rate

-Maintains steering geometry

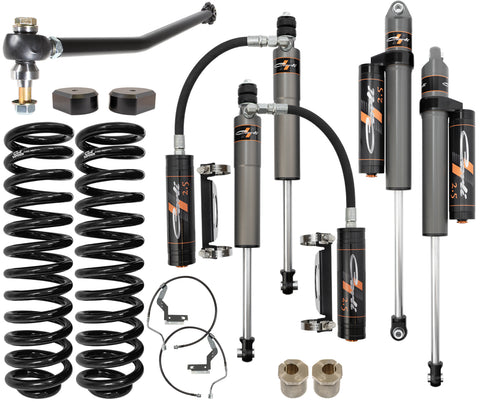

COMPONENTS

-Carli Front Ford Super Duty 2.5" Leveling Coils

-Carli 2017+ Ford Pathfinder SPEC 2.5 Shock Package

-Carli 2017+ Ford Super Duty Adjustable Track Bar

-Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines

-Caster Correction Shims
