USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The Carli Pathfinder 2.5 shocks offer a comfortable on road ride, but pack more off road capability than the Backcountry shocks.
SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck’s ride. To keep the factory ride, select the end link option.
LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.
RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.
The Pathfinder system strikes a balance between the Backcountry and Pintop, designed for Super Duty owners who want smooth on-road comfort with reliable off-road capability. It offers a controlled ride for light to moderate off-roading while excelling on pavement by absorbing bumps effortlessly for a comfortable daily drive. Featuring Carli-SPEC 2.5” aluminum shocks with a durable hard-anodized finish and high-performance red shock oil, it ensures lasting performance and heat resistance. With a 4.5" or 5.5” front lift depending on the year, progressive coil springs, and upgraded suspension components, the Pathfinder delivers a premium, dependable ride that enhances both comfort and capability.
The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (eliminates the factory block and maintains payload capacity; pairs with a rear bump stop drop). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack (2 main leaf springs) than its 350 counterpart (3 main leaf springs). The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If you own an F250 built with the Tremor or high-capacity tow package, these are equipped with an F350 rear spring and should avoid the add-a-pack, as well. If capacity is a concern, an aftermarket airbag system should be installed to complement the Full Progressive Leaf Springs to restore the F350 capacity. We recommend a system that will allow the airbags to disconnect from the lower mount during suspension cycling to ensure you’re able to take advantage of all your rear suspension travel. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.
5.5" Lift - 2020+ F250/350 4x4 Diesel, Base Kit
4.5" Lift - 2017-19 F250/350 4x4 Diesel, Base Kit
Lift Height Note: 2020 Super Duties were lowered 1” from the factory when comparing to the 2017-19. Further, the Tremor Package is a factory 2” lift on the 20-22 platform putting them 1” taller than the 17-19. As these all START at different heights yet utilize the same lifts, the stated lift height is different. They’ll all end up measuring the same with the lift installed!
This system fits Ford F-250 and Ford F-350 4x4 trucks from 2017, 2018, 2019, 2020, 2021, and 2022
CS-F45-PF-17

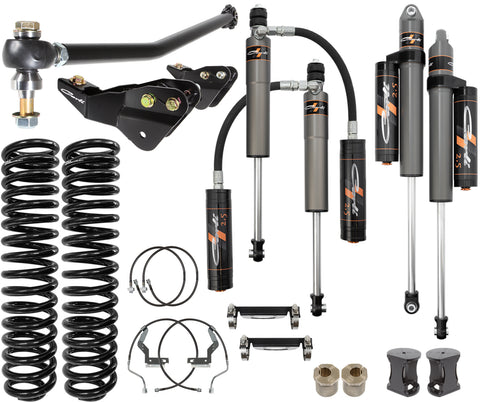

Base Kit Includes:
CS-FMRC-05 Multi-Rate Coils
CS-F45SPKG-CS25RR-A Carli Custom Tuned Carli-SPEC 2.5" Remote Reservoir Shocks & Reservoir Mounts
CS-FATB-17 Track Bar
CS-FORDBBL-45-17 Brake Lines
CS-FCASTERSHIM-4.5 1° Caster Shims
CS-FBDF-4.5-17 High Clearance Bump Stop Drops, Front
CS-FRAD-17 Radius Arm Drops
| Front Lift |
Rear Lift |
Front Travel |
Rear Travel |
Shock Diameter |
Tire Fitment |
| 5.5″ |
3″-4″ |
10″ |
12.9″ |
2.5″ |
37″ x 13.5″ |
