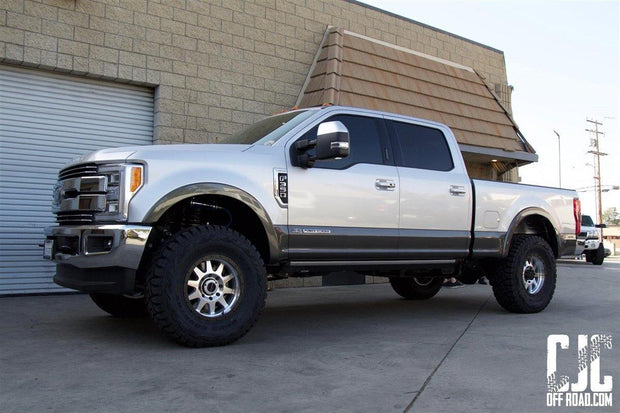

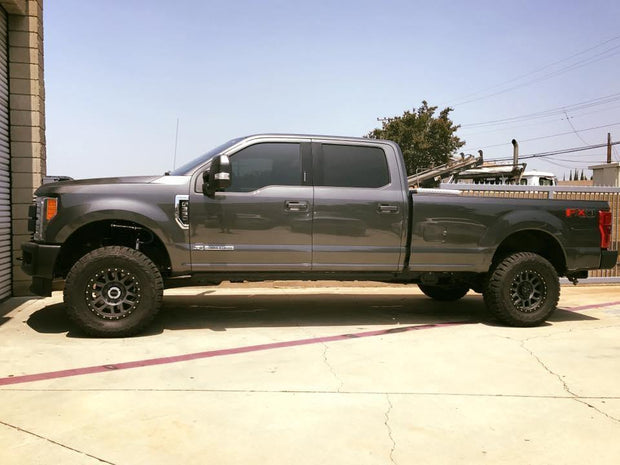

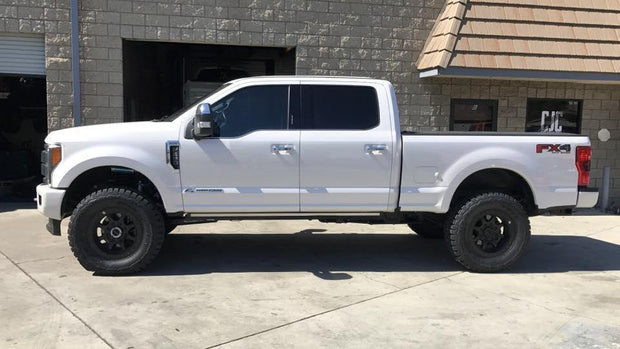

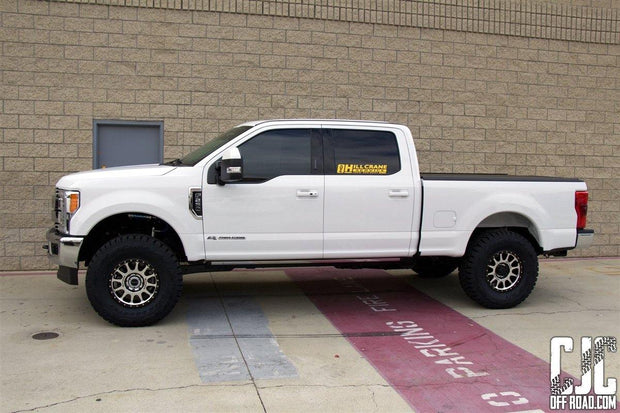

The Pintop level height system is designed to be the do it all jack of trades for 17+ Super Duty trucks. Need to tow a trailer, commute to work and handle heavy off road driving with one suspension system? This is it.

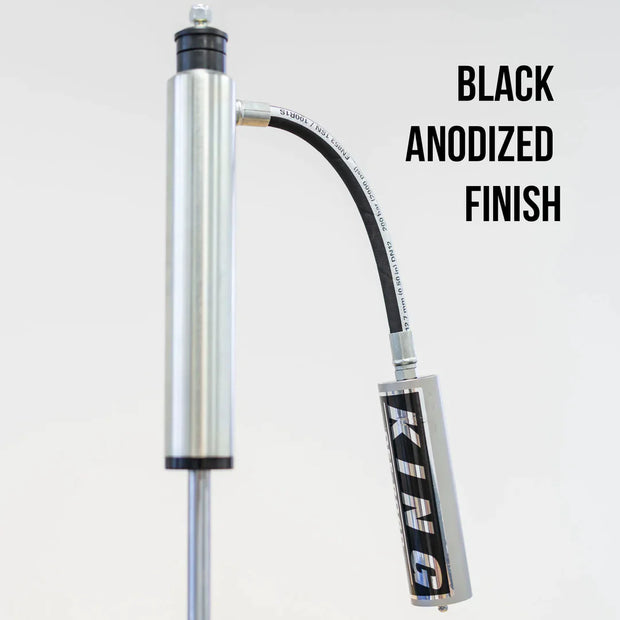

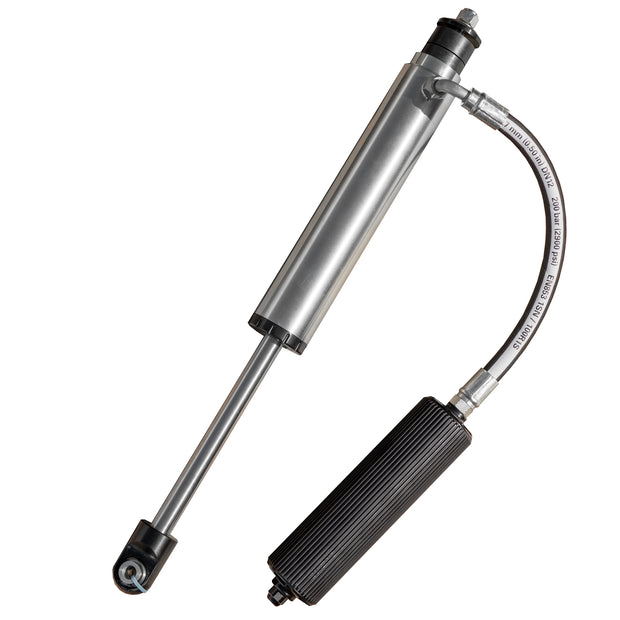

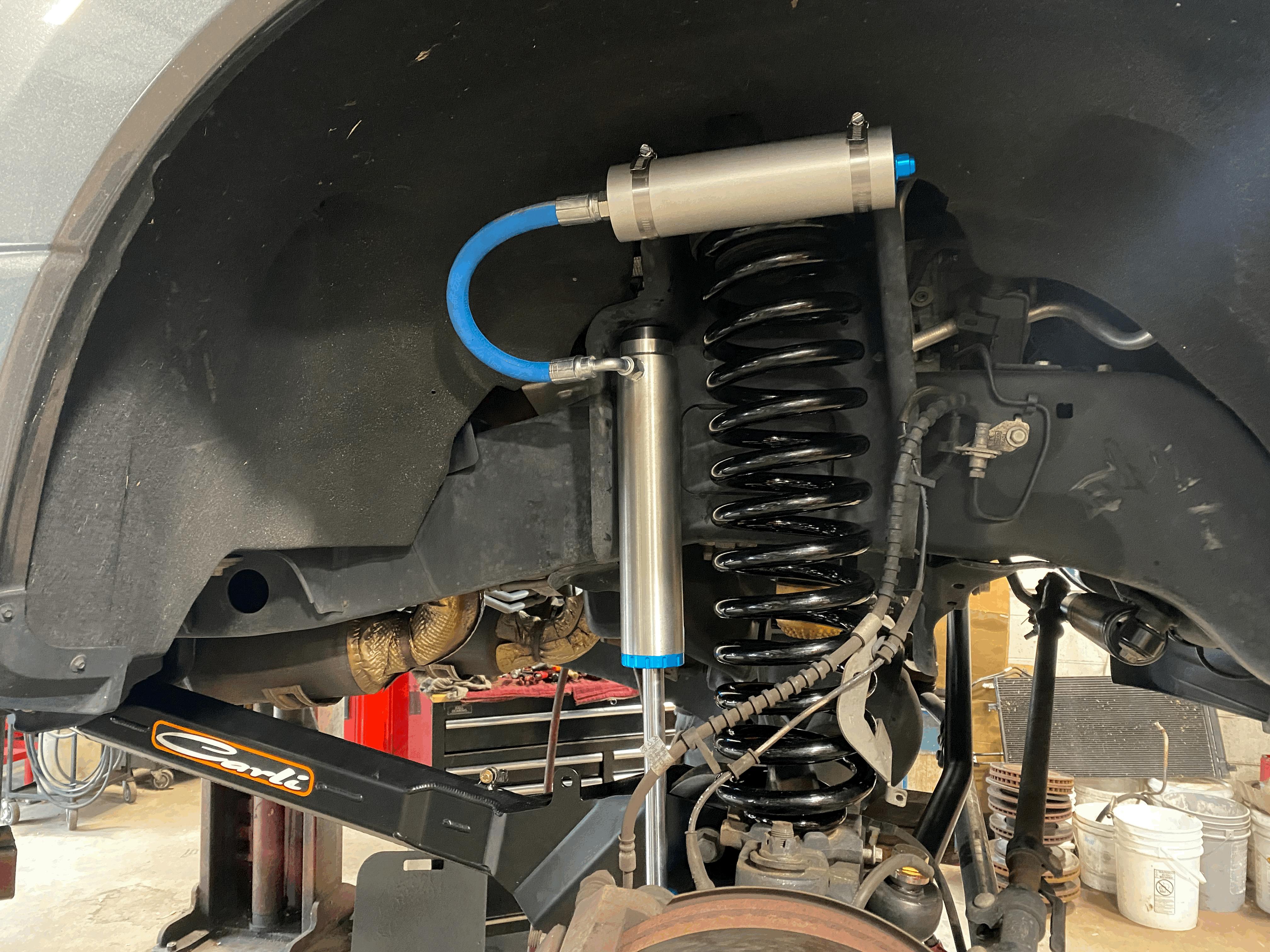

The Pintop 2.5 kit boasts 2.5″ Remote Reservoir King Shocks designed and tuned by Carli Suspension. This kit offers substantial on-road and off-road performance improvement. Customers can expect more control and bottom-out resistance than the Backcountry, but still have excellent on road ride. A “Base Kit” must be accompanied by a Sway Bar option to form a complete system, but everything else is an optional add on to improve ride and handling.
For the best ride, we recommend adding the Carli torsion sway bar and full replacement rear leaf packs. Both are a massive upgrade on and of road, and address key weak points of the factory parts.
The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1″ and the rear 1″-1.5″ depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 2.5″ Lift Systems from the previous generation, 2017-19, are now 3.5″ for the 2020.
If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package. If you find your truck is rear low, we recommend this block kit.

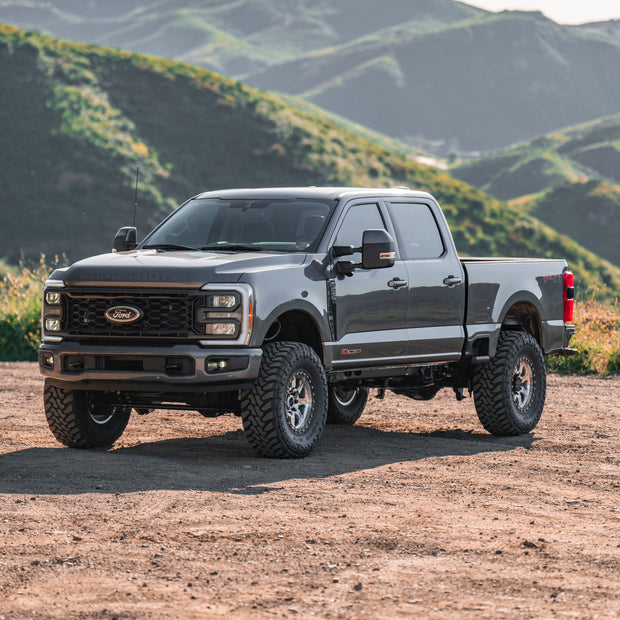

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2017 to current.
Please note if your truck is a 2023+ Platinum/Limited trim equipped with factory headlight angle / load scale sensors you will need these brackets to fix the sensors in place and remove the sensor linkage.
SPECIFICATIONS
-2.5" Front Lift/ 3.5" lift on 2020+ trucks
-Significantly improved on and off road performance
-Custom coil spring rate
-Maintains steering geometry

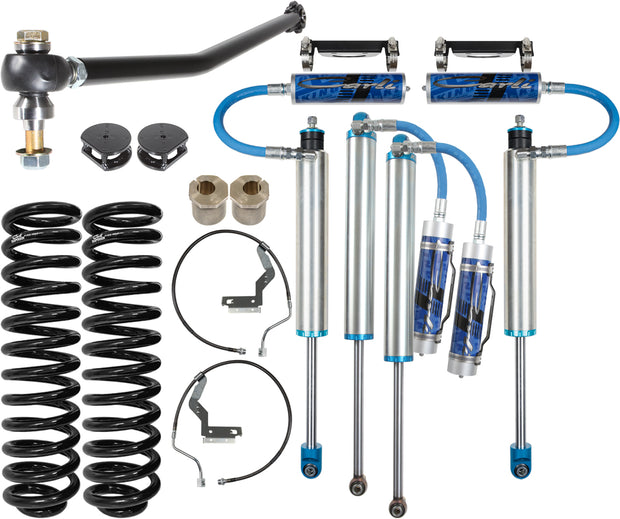

COMPONENTS
-Carli Front Ford Super Duty 2.5" Leveling Coils

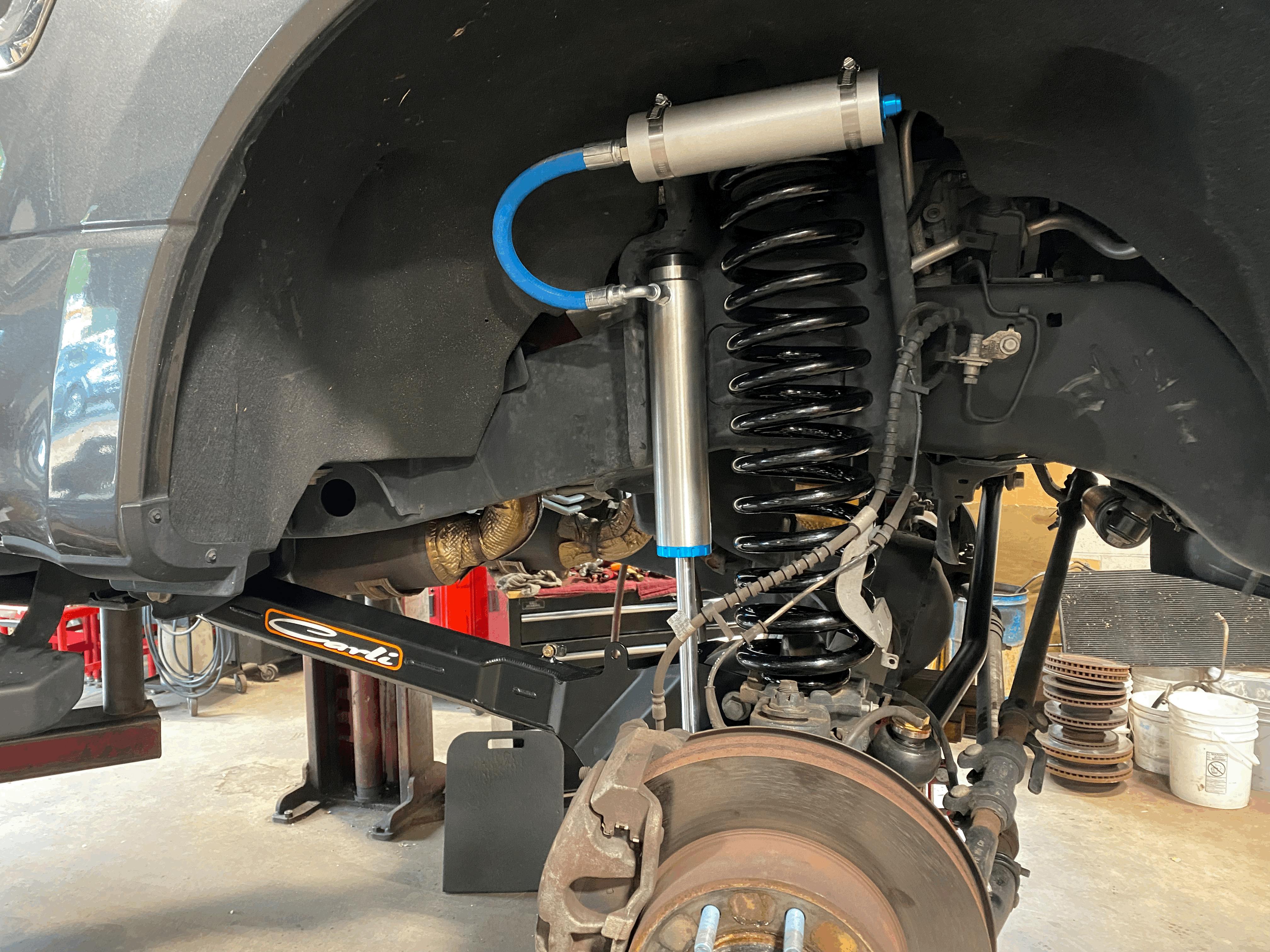

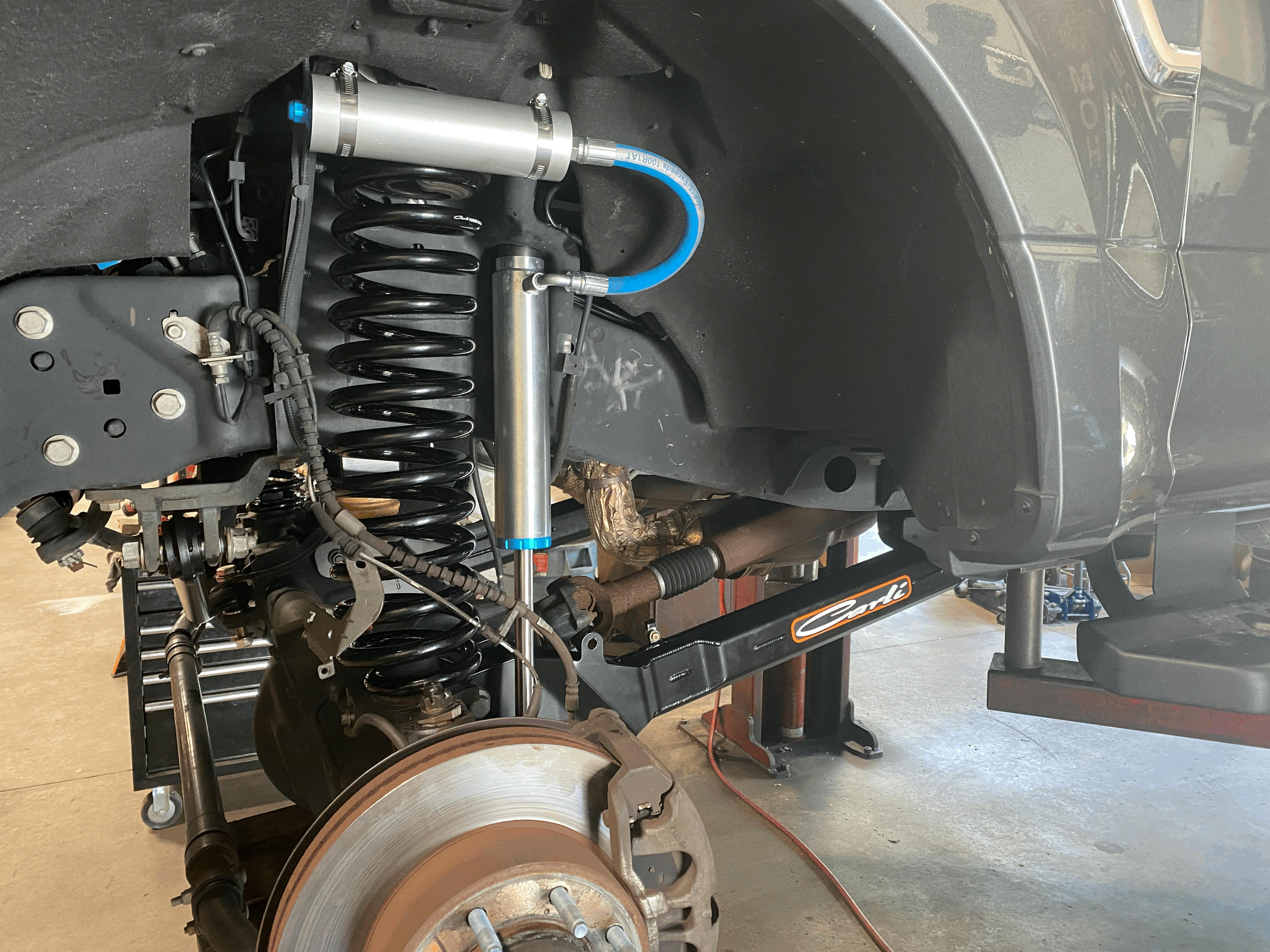

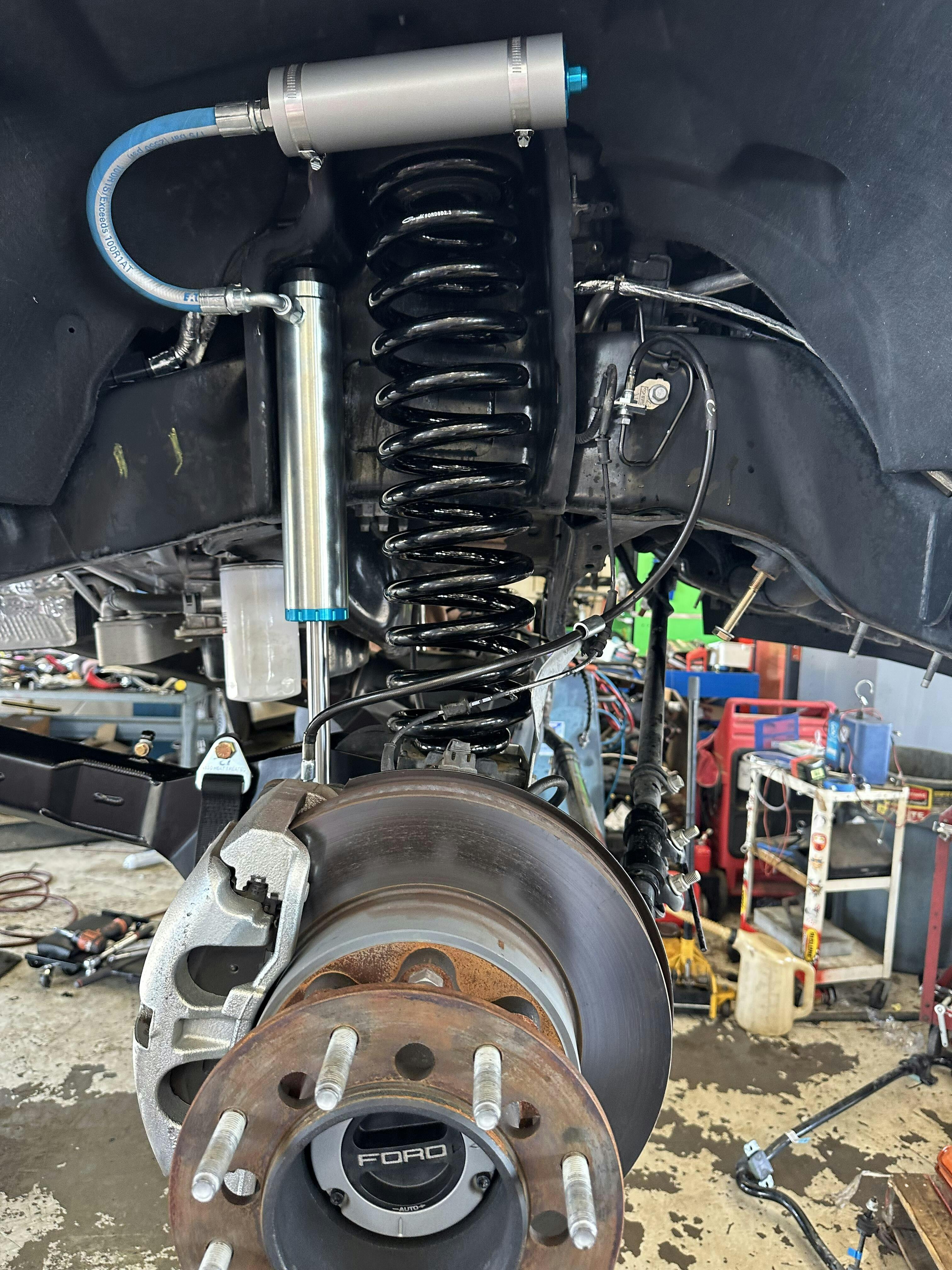

-Carli 2017+ Ford Pintop King 2.5 Shock Package
-Carli 2017+ Ford Super Duty Adjustable Track Bar
-Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines
-Carli Leveling Front Bump Stop Drops
OPTIONAL
-Carli 2017+ Ford Progressive Add-A-Packs & Rear Bump Drops
-Carli 2017+ Ford Full Progressive Rear Leaf Springs
-Carli Ford Super Duty Fabricated Radius Arms
-Carli 2017+ Front Sway Bar Drop Brackets
APPLICATIONS
This kit will fit all 2017-2019 Ford F250/F350 Super Duty 4x4 pickups.
FITMENT GUIDE
Year Model Part Number
2017-19 FORD F250 / F350 4x4 CS-FLVL-PT25-17
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 3.5″ | 0-2.5″ | 9″ | 13″ | 2.5″ | 35″ x 12.5″ |
