);">The Carli Suspension 2023+ Super Duty Pathfinder system offers a comfortable on road ride, but packs more damping and big hit absorption capacity than the Backcountry system. If your truck is doing dual duty on the street and dirt, but the King Pintop system is out of the price range and you aren't looking to hit whoops or jump the truck, this is your system. The goal here was to pair the control of a 2.5" diameter shock package with a lower price point and street ride not offered in the King shock Pintop system.
The core of this suspension system features Carli’s fully custom Pathfinder 2.5" diameter reservoir shocks. Unlike competitors who rely on standard shocks, Carli engineered these specifically for the 2017+ Super Duty models, with tailored valving for both gas and diesel engines. These Remote Reservoir Shocks deliver a smoother, more comfortable ride on the road while offering excellent performance off-road.
We do not recommend running a Pathfinder system with stock rear leaf packs, as the shock valving was designed around the softer rate Carli leaf springs. If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package as some stock blocks are shorter than 3" tall. If you find your truck is rear low, we recommend this block kit.
If you have a full time camper or other constant in bed weight over about 400 pounds, we recommend the Pintop system as we offer custom shock tunes to account for Carli's HD capacity leaf packs and the additional weight of the truck. That will be a better fit than the Pathfinder shocks tuned for an empty or towing truck.
This system fits Ford F-250 and Ford F-350 4x4 trucks from 2023 to Current
Please note if your truck is a 2023+ Platinum/Limited trim equipped with factory headlight angle / load scale sensors you will need the load scale brackets from the options list to fix the sensors in place and remove the sensor linkage. We include those free with Carli systems.

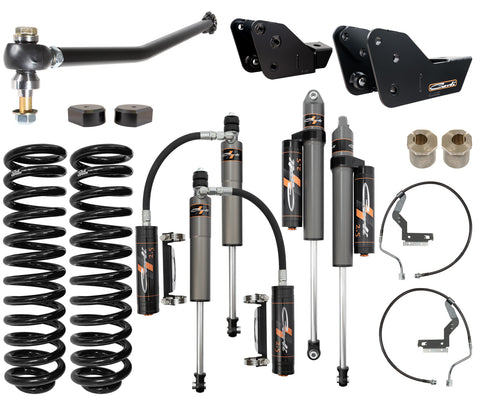

COMPONENTS
-Carli Front Ford Super Duty 2.5" Leveling Coils
-Carli Pathfinder 2.5 Front/Rear Custom Tuned Shock Package
-Carli 2017+ Ford Super Duty Adjustable Track Bar
-Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines
-Caster Correction Shims
-Carli Leveling Front Bump Stop Drops
-Carli front radius arm drops
Part Number: CS-FLVL-PF-23
| F250/350 Lift Height | TREMOR Lift Height |
|---|---|
| 3.5″ | 1.5″ |
| Front Travel | Rear Travel |
|---|---|
| 8.7″ | 12.9″ |
| Shock Diameter | Tire Fitment |
|---|---|
| 2.5″ | 37″ x 12.5″ |
