Boost Tube Upgrade Kit 2013-2018 RAM 6.7L

25992

Regular price $419.00 Save $-419.00

Up to 103% greater flow area than stock tubes
Increase hot side flow area up to 103% over the stock 2-3/4" boost tubes with Banks' huge 3-1/2" OEM left and right side boost tubes. Stock hot side tube is dented at the factory, bringing it's diameter down to a tiny 2-1/4". Banks boost tubes are 3-1/2" constant diameter mandrel bent with larger radius bends. More air allows for more fuel which means more horsepower.
50 State Compliant:
CARB E.O. D-161-122

This kit is designed to work with the stock elbow or new Banks Monster-Ram (3.5" or 4") and the stock intercooler (or aftermarket intercooler with stock inlet and outlet size and location).

Are you running the new bad-ass Banks Monster-Ram for the 6.7L Cummins? Banks boost tubes are larger than the factory pipe and designed to work with the stock elbow or new Banks Monster-Ram (3.5" or 4") which will improve airflow, and allow the turbocharger to spool up faster.

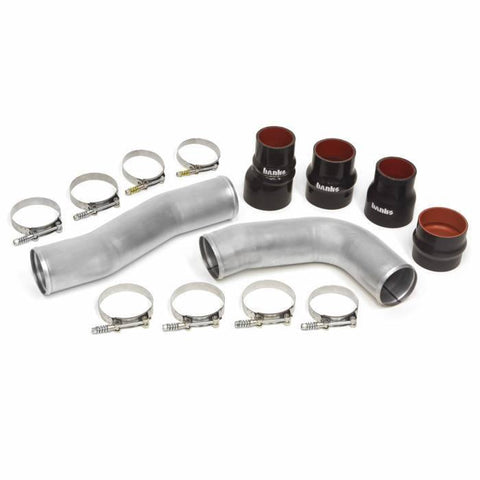

Banks hot and cold side tubes have up to 103% percent greater flow area than stock tubes. Produced from high-quality aluminized steel, the tubes are mandrel bent and constant diameter. This allows for quicker turbo spool. Better flowing intercooler tubes improve retention of boost pressure (increases density) between turbo, intercooler, and intake resulting in maximum horsepower. Our natural finish tubes give you the freedom to paint or powder-coat to your color of choice. The bead-rolled ends allow for better grip ensuring our 4- and 5-ply heavy-duty high-temperature silicone couplers hold tight under high-boost conditions. Spring-loaded constant tension clamps maintain a stronger grip to prevent leaks or blown boots.

  • Huge increase in size and flow over stock (3.5" vs 2.75")
  • Greater cooling capacity
  • Lower EGTs
  • Mandrel-bent aluminized steel construction
  • Constant diameter tubing for the best flow
  • Perfect fit and finish
  • 4- and 5-ply heavy-duty silicone couplers
  • Spring-loaded constant tension clamps
  • Combine with Banks 3.5" or 4" Monster Ram for maximum power
  • Works with stock intercooler or aftermarket intercooler with stock inlet and outlet size and location

Emissions Compliant: D-161-122


Details:

  •  Diameter: 3.5"
  •  Material: Aluminized Steel
  •  Finish: Natural

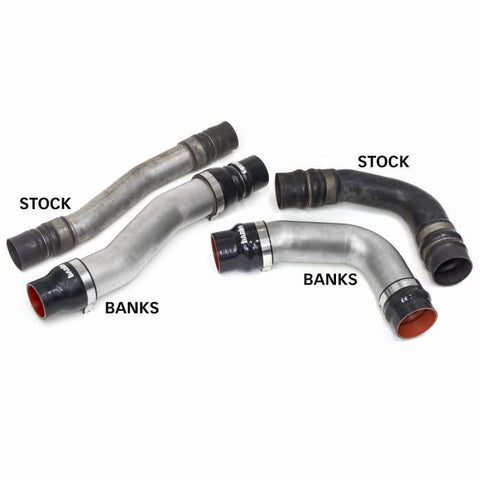

Larger Diameter (hot side):

  •  Banks: 3.5 inch (103% greater flow area)
  •  Stock: 2.75 inch with dent

Larger Diameter (cold side):

  •  Banks: 3.5 inch (67% greater flow area)
  •  Stock: 2.75 inch

Banks hot side has  103% greater   flow area than OEM hot side.
Banks cold side has  67% greater   flow area than OEM cold side.

Better flowing intercooler tubes results in less boost pressure loss allowing for more air and fuel to be delivered to your engine resulting in maximum horsepower.

This kit is designed to work with the stock intercooler (or aftermarket intercooler with stock inlet and outlet size and location).
