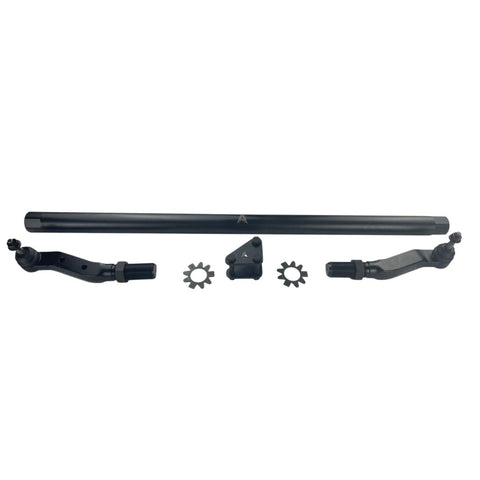

Apex 2014-Current Ram 2500/3500 HD Tie Rod Kit KIT186 is a direct replacement extreme duty Tie Rod assembly to replace your underperforming OE steering. Oversized tie rod ends, connected by a massive DOM tube, eliminates death wobble and tightens up steering under the most extreme conditions.
A direct replacement extreme duty Tie Rod assembly to replace your underperforming OE steering. Oversized tie rod ends, connected by a massive DOM, Polished Aluminum or Black Aluminum tube, eliminates death wobble and tightens up steering under the most extreme conditions. Weak adjusting sleeve is replaced via tie rod ends threading directly into the connecting rods, secured by jam nuts and our NEW ProLock washers. This kit also includes our TR203 OE location damper bracket.
This will change the way your vehicle drives forever!
Fitment Notes:
This is compatible with Carli low mount steering stabilizers using the Carli bracket provided in the Carli kit.
Not compatible with Rough Country Dual Steering Stabilizer or most dual kits. Due to the oversized tie rod ends, modifications may need to be made to dual stabilizer kit, tie rod end brackets to fit. NOT compatible with Fox TS or ATS stabilizers.
WHAT IT FITS:
Dodge Ram 2500 (2014-2024) 4WD
Dodge Ram 3500 (2014-2024) 4WD
THE SPECIAL SAUCE:
HOUSING:

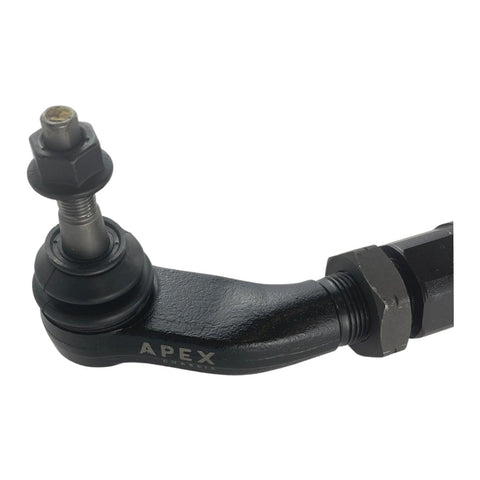

- SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
- CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
- SAE 4140 Hot Forged Chromoly Ball Studs: For the strongest possible metallurgy.
- Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
- Rolled Threads: Made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
- Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued (installer choice).
- Rugged Metal to Metal Bearing
- CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
- Accordion Boot: Ideal for high-articulation components, more flexibility means longer life.

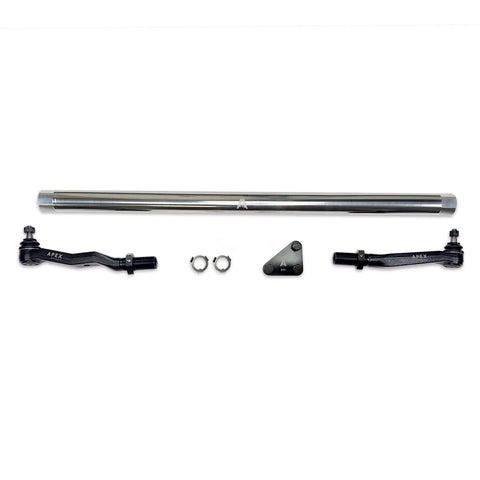

- Polished Aluminum: Highly polished, raw aluminum

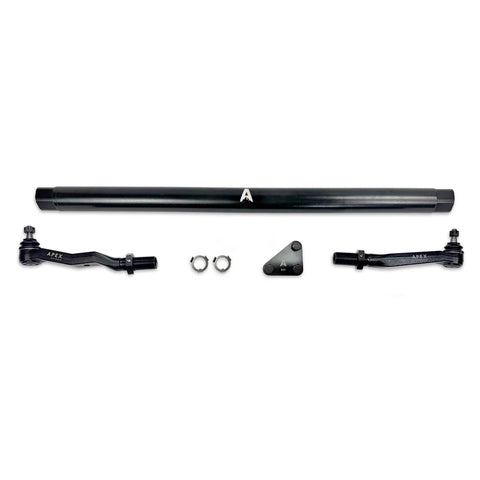

- Black Aluminum and DOM Steel: Powder coated black
- Grade 8 - Class 10.9 Hardware: Superior tensile strength.
- Castle Nut: Industry standard where high vibration loads occur.
- Tie Rod: 2" DOM SAE 1020 Tube: Heavy walled steel tubing provides the tightest most robust steering on the market.
- Tie Rod: 2.125" 7075-T6 Aluminum Rod: The best aluminum available for this application. Extremely durable but has some flex and memory if you really bash it into something.
- Pre Threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
- Greaseable: Because it should be.
- Pre-Greased: Just in case you forget, we have you covered.
- Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
- Zerk Fittings: Included for every application.
- ProLock Link Connect System (TM): Exclusively from APEX - This patent pending system utilizes a precision keyway cut into the threads of our tie rod ends, and a pre-bent keyway washer that locks onto the wrench flats of the connecting rod to completely stop any tie rod rotation once the jam nut is set. The jam nut, once torqued to spec, is then locked in place with 3 set-screws inset into the jam nut.
- Greaseable, High Articulation Spherical Bushing: For extreme durability our passenger side tie rod is fitted with an oversized greaseable high articulation spherical bushing. This allows for maximum articulation and load disbursement, for better performance, and longer life.
