- 144” Dually Vans, 170” Crew Vans (1 row of seats), vans with plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member, or Storyteller XO (accommodation coming soon)
2023+ Vans: Part # 10-1032 is a shorter 40 gallon tank and will work for 170" Crew Vans and vans with plumbing 5"+ behind the OEM tank
2019-2022 Vans: Part # 10-1027 is a shorter 40 gallon tank and will work for 170" Crew Vans, 144” Dually Vans, and vans with plumbing 5"+ behind the OEM tank
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call your Mercedes dealer to confirm if you have this option. If you don’t have it, you will need TI1349-00 or TI1527-00. We recommend TI1527-00 as it also reprograms your Miles to Empty reading.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
PLUG AND PLAY INSTALLATION

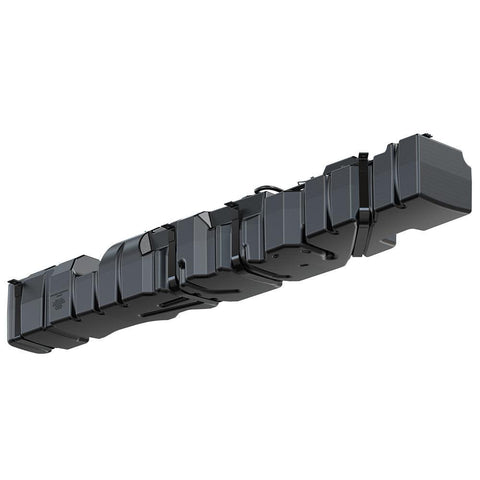

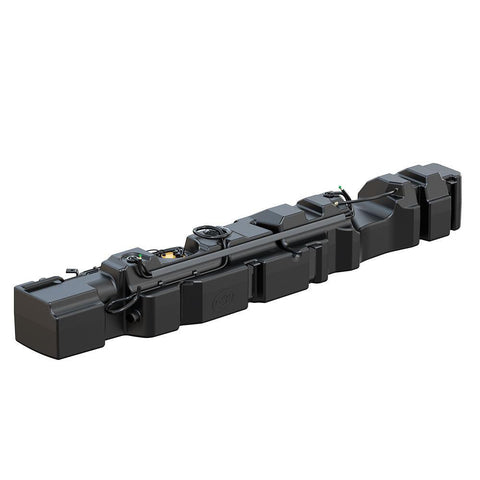

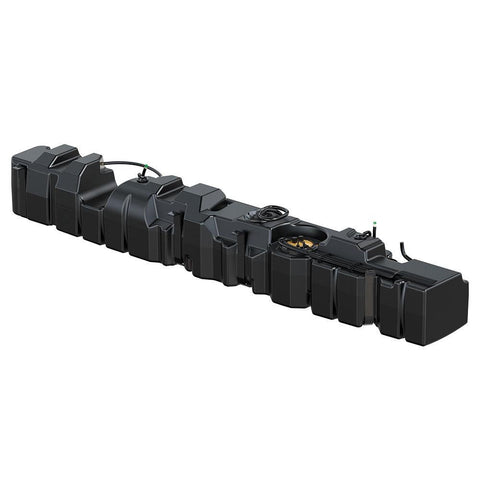

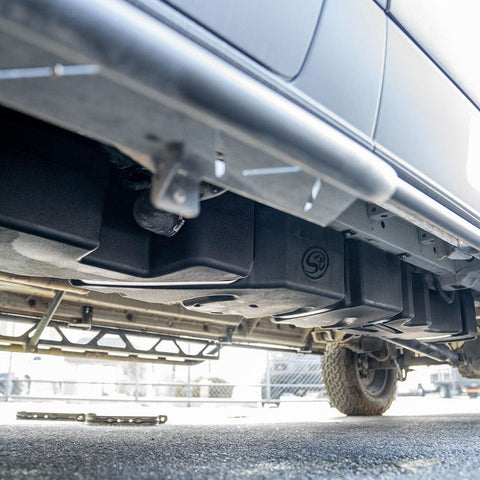

The S&B Tank comes with all the components to remove your 24 gallon tank and replace it with our 47 gallon tank. The tank mounts in the stock location with an additional rear strap. The tank occupies the space forward and rearward of the original tank and does not stick out anymore toward the driver side than the original tank.
YOUR FUEL GAUGE
WORKS AS NORMAL.
Even with more fuel on board, your fuel gauge will remain accurate thanks to S&B’s tank design. The guage will stay on full for the first 5-7 gallons, but then continue to move as normal. The distance to empty however will still be calculated based on the stock fuel capacity. For example, @ 20mpg and a full tank (47 gallons) you will have 940 miles to empty but your vehicle will show you have 480 miles to empty.
BUILT TO LAST. BACKED BY A LIFETIME WARRANTY.
Made out of ¼” thick crosslink polyethylene, these tanks are built to last and are backed by our lifetime warranty.
WATCH THE
INSTALLATION VIDEO.
Planning on installing your S&B replacement tank yourself? Check out our step by step installation video and we'lll walk you through the complete process.
This tank will NOT fit 170" Crew Vans or 144" Dual Rear Wheel Vans. part # 10-1027 will work for both.
Do you have an Auxiliary Fuel Tank? Read why using these with our tanks will void the Lifetime Warranty.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). Please call S&B, send a message with your VIN, or consult with your installer to confirm if your van has J51.
