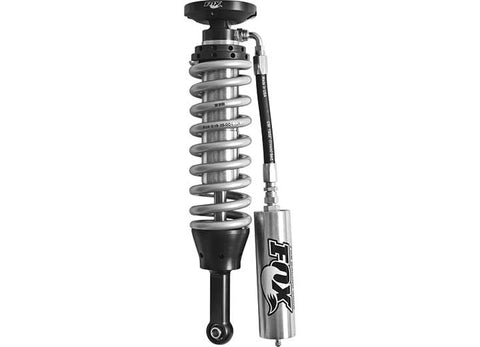

![[Open Box] Fox 07-ON Chevy 1500 w/ UCA Front Coilover, 2.5 Series, R/R, 5.3", 3" Lift (Pair)](http://www.cjcoffroad.com/cdn/shop/files/FOX880-02-525-2_{width}x.jpg?v=1718404610)
![[Open Box] Fox 07-ON Chevy 1500 w/ UCA Front Coilover, 2.5 Series, R/R, 5.3", 3" Lift (Pair)](http://www.cjcoffroad.com/cdn/shop/files/IMG_6911_{width}x.jpg?v=1718404496)
*Sold as is with no returns
*Parts are new in box
| Body | 2.5” smooth bore zinc plated seamless steel body |
|---|---|
| Body Plating | Zinc-plated and double-clear coated for long lasting finish |
| Reservoir | 2.5" Smooth bore and honed seamless alloy reservoir |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Spring | Application specific, adjustable 3.0 Eibach® racing springs |
| Shaft | 7/8" hard chrome plated steel shafts |
| Piston | 6061-T6 hard-anodized, high flow aluminum piston |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Bearing | PTFE-lined, heat-treated, alloy steel spherical |
| Adjustments | Ride height preload ring |
| Extended | 19.400 |
| Compressed | 14.100 |
| Travel | 5.300 |
| Top Mount | OEM |
| Bottom Mount | Bar Pin |
| Fitment notes | Requires Upper Control Arm I Does not fit magnetic suspension |
