CJC OFF ROAD 2013-2018 Ram Switch Pros Dash Mount - CJC Off Road

CJC OFF ROAD 2013-2018 Ram Switch Pros Dash Mount

Name: CJC OFF ROAD 2013-2018 Ram Switch Pros Dash Mount
Brand: CJC Off Road
SKU: CJC-SP-4G-MOUNT
Price: 99.99 USD
Availability: InStock

CJC-SP-4G-MOUNT

Free Ships in 1-5 Business days

$99.99

Quantity

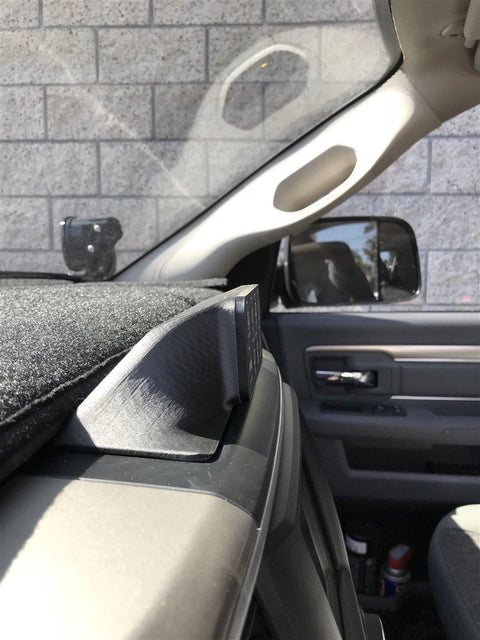

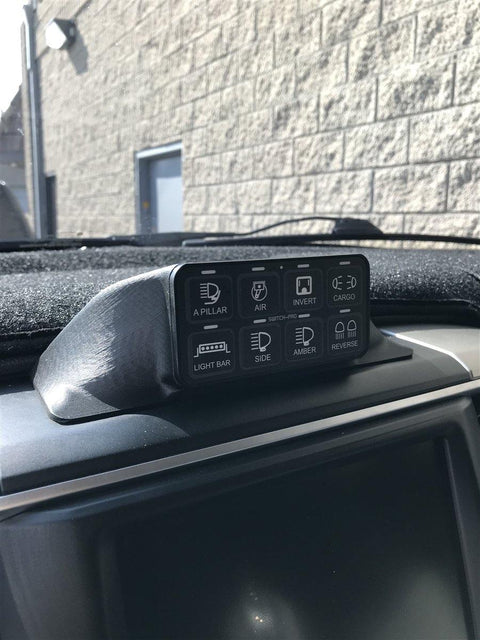

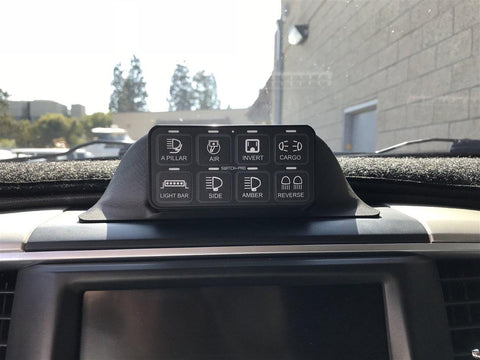

Our all-new upper dash mount kit designed to fit the 2013-2018 Ram trucks made from a carbon fiber filament 3D printed to bolt in perfectly in the pen tray. It was specifically designed to work with the Switch Pros 9100 switch unit to provide a perfect mounting solution for the 4th generation Ram trucks.

These mounts are precisely printed with a chopped carbon filament. This filament is rated to withstand much higher temperatures than standard PLA printed filament. What this means for you is a part that will last, at least as long as the factory dashboard, and one that will not crack or deform under heat. In addition, the filament provides a beautiful matte black finish.

Awesome product, great communication

Great communication from the CJC team when I ordered this. They were just finishing up printing more and will ship out ASAP. Really appreciate the communication and the fit of the product! Super simple to install and most importantly, Looks incredible with their mount!

100 User-selectable switch legends (not shown)
Eight user-programmable switches
Four 35A circuits and four 20A circuits
Waterproof, Solid State 125A Power Module
RGB Backlighting provides unlimited color options, using Color Picker on App
Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
Switches can be programmed for:
On/Off or Momentary
Ignition or Battery Input
Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
Memory Function
Master Mode, with the ability to turn multiple outputs On AND Off with one-touch
Automatic Power-Up upon vehicle start-up
Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
Lighting outputs can dim from 100% to 10%, with the ability to dim during Flash or Strobe patterns
Sleep Mode for minimal power consumption
Color-Coded circuit wires
LED Input Status Indicators for easy troubleshooting
Time Delay Off function available for all circuits
Splash-proof switch panel with Polycarbonate overlay faceplate
Program and control the system from switch panel pad or smartphone
Bluetooth interface with FREE Apple or Android App
Battery Voltage Readout on App screen
No Fuses or Bulky Relay box
Built-In Bluetooth Module

Switch Panel Specs:

RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
Orange LED switch indicators
100 User Selectable Legends

Power Module Specs:

8 Outputs: 4 rated @ 35A, 4 rated @ 20A
125A maximum rating
Waterproof and Solid State
6”L x 3”W x .5”H (excluding connectors)
LED Input Status Indicators for easy troubleshooting
Underhood rated 125° to -40°C

Kit Also Includes:

11’ of Communication Cable between Switch Panel and Power Module
Color-Coded Output wires
Wire harness with Waterproof, sealed automotive grade connectors
Power Cable with 125A inline fuse

Switches can be programmed to be: On/Off or Momentary, ignition or battery-powered, flash, strobe, low voltage disconnect, and memorize previous settings. There is also a programming function to adjust the brightness of backlighting and indicator LEDs.

SWITCH-PROS SP-9100 8-SWITCH PANEL POWER SYSTEM

Great fit and FAST shipping

Worth every penny!

I’ve had the cheap switch controller systems and this switch pro’s unit is so much better! Easy to install and easy/reliable to use. Pair it with the CJC 3rd Gen Dodge Ram switch panel mount and it makes it such a clean/easy install with no drilling through your dash!
