2011 - Current Chevy | GMC 2500HD / 3500 0-2" Lift Suspension System - Stage 2

K78101

Usually Ships in 12-15 Weeks

Regular price $1,921.24 Sale price $1,825.17 Save $96.07

0 in stock

Overview:

The 2011-UP GM 2500HD / 3500HD requires significant shock damping to comply with the massive spring rate of the factory torsion bar system. ICON Vehicle Dynamics has developed a range of suspension systems with optimized vehicle specific shock damping. These systems offer excellent on and offroad driveability. While driving the construction site or trails to your favorite dirt bike location, ICON wants you to get there in comfort just like your drive to work. ICON's Stage 2 system is comprised of V.S. 2.5 Series IFP front shocks, 2.0 Aluminum Series IFP rear shocks, and tubular uniball upper control arms. The ICON vehicle specific tuned 2.5" shocks are the key to attaining optimum ride quality and getting that desired comfort with the 3/4 & 1 ton working capability. Additionaly uniball upper control arms add strength and durability, with the ability to use a longer extended length shock offering 25% more droop travel.

Key Features:

• Vehicle specific tuned 2.5" front and rear shocks for superior shock damping and control

• Improved ride quality over stock with no change in towing capacity

• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

• 6061 Aircraft grade aluminum CNC machined components

• Corrosion resistant plated shock bodies

• Made in the USA

Wheel & Tire Fitment Info:

OEM Wheels & Tires: Yes

Aftermarket Wheels: 8" Wide Wheel With 5" Backspace

Aftermarket Tires: 33" Tall Tires

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)

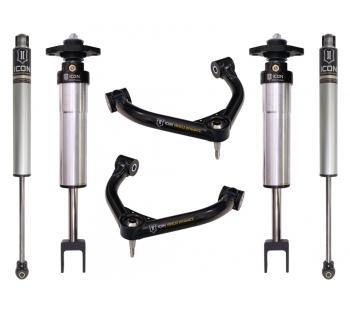

System Components:

78500 (QTY - 1) - 2011-Up GM 2500HD / 3500 2wd & 4WD Tubular Uniball Upper Control Arms

77606 (QTY - 2) - 2011-Up GM 2500HD / 3500 2wd & 4WD (0-2" Lift) V.S. 2.5 Series IFP Front Shocks for use with uniball UCA

76529 (QTY - 2) - 2011-Up GM 2500HD / 3500 2wd & 4WD (0-2" Lift) 2.0 Aluminum Series IFP Rear Shocks

Options:

77732 2011-Up GM 2500HD / 3500 2wd & 4WD V.S. 2.5 Series piggyback reservoir front shocks for use with uniball UCA

77701 2011-Up GM 2500HD / 3500 2wd & 4WD V.S. 2.5 Series piggyback reservoir rear shocks

77701C 2011-Up GM 2500HD / 3500 2wd & 4WD V.S. 2.5 Series piggyback reservoir w/ CDCV rear shocks

191011 ICON tubular UCA uniball cover caps
