LogIQ AirIQ SD1 1-Channel Air Management w/ Standard Duty Air Compressor
LogIQ AirIQ SD1 1-Channel Air Management w/ Standard Duty Air Compressor
LogIQ AirIQ SD1 1-Channel Air Management w/ Standard Duty Air Compressor

LogIQ AirIQ SD1 1-Channel Air Management w/ Standard Duty Air Compressor

50-41100

Regular price $799.95 Save $-799.95

0 in stock

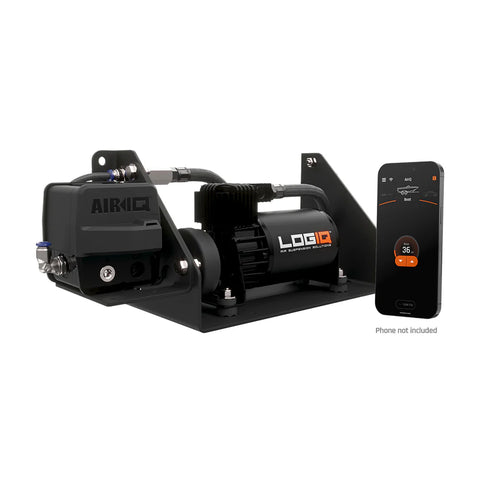

AirIQ delivers the ultimate control for your load leveling air suspension and helper bags. Complete air management packages are factory assembled and tested for guaranteed performance. This kit is upgraded to independent corner control with dual channel valving to manage offset loads with ease.

1-Channel AirIQ Bluetooth Management System for parallel control of two air springs from the AirIQ App + LOGIQ 25% duty cycle, 150 psi compressor with 2.03 CFM @ 0 psi + plumbing kit and wiring + Easy Frame Mounting Brackets

(1) AirIQ SD1 Air Management System with 20 ft wiring harness pre-installed
(4) Frame Mounting Brackets and Hardware Kit
(1) AirIQ SD1 Installation Kit: Tee Fitting, 20ft 1/4" air line, fuse taps, 18ft wire loom

Compressor Output: 2.03 CFM @ 0psi
Compressor Duty Cycle: 25% @ 100 psi
Ingress Protection Rating: IP54 Compressor / IP67 Other Components
Max Pressure: 150 psi Voltage: 12 Volts
Current Draw: 30 Amps

Installation Instrucitons
