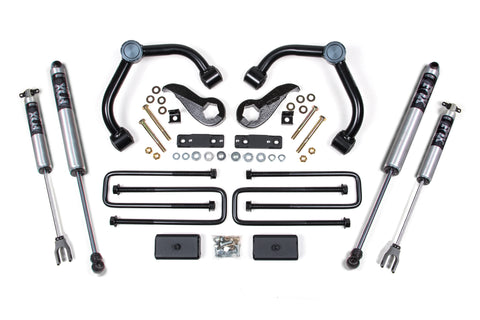

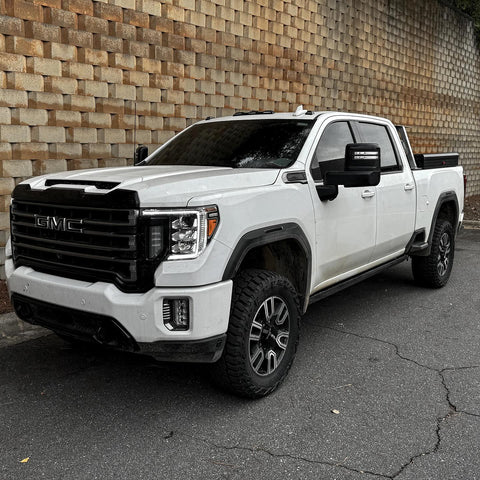

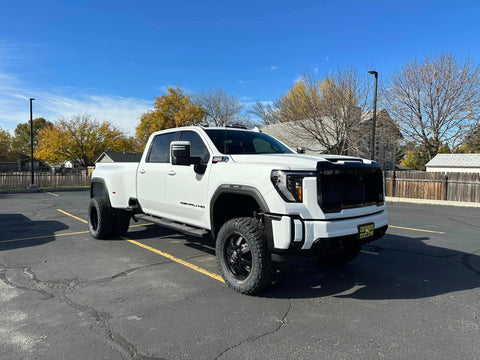

Achieve a leveled look for your 2020-2024 Chevy Silverado or GMC Sierra 2500HD 4WD truck while enhancing its performance with this 3-inch leveling lift kit from BDS Suspension. It comes equipped with FOX 2.0 Performance Series IFP shocks and heavy duty tubular upper control arms for added strength. This kit also includes indexed cast steel torsion bar keys, a differential relocation kit, and sway bar relocation brackets to ensure proper operating angles and clearance for up to 35" tires. In the rear, a 2" block and u-bolt kit provide a level to slightly raised stance when unloaded. Expertly tuned FOX 2.0 performance series IFP shocks complete this comprehensive kit for a smooth ride over any terrain.
FOX 2.0 IFP Shocks
Enhance your vehicle's performance and handling with these FOX 2.0 Performance Series monotube shocks. Constructed with a 2.0" extruded and machined 6061 T6 aluminum body for improved heat dispersion, these shocks also feature an internal floating piston (IFP) to prevent oil aeration in extreme conditions. With FOX's exclusive internals and a 5/8" hard chrome plated heat-treated alloy shaft, these shocks are designed for simple installation. Additionally, they are precision-tuned with application specific valving, providing a predictable ride quality that can handle even the toughest road conditions.
HD Upper Control Arms
Engineered for optimal strength, improved performance, and extended range, these upper control arms easily install on most lifted/leveled trucks. Constructed with 1.5" OD x .120-wall tubing and featuring an indexed ball joint cup, these arms correct ball joint positioning for enhanced downward travel and camber adjustments. High-quality, maintenance-free rubber bushings are used at the frame ends, while quality greaseable ball joints provide smooth, quiet operation and exceptional durability. With a sleek black powder coat finish and a billet aluminum dust cap, these arms are ready for immediate installation upon arrival.
Rear Lift Option:
Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
Features & Benefits
FOX 2.0 Performance Series shocks offer improved performance and damper capacity.
Performance UCAs increase strength and allow for more suspension travel
High strength cast torsion bar keys use an indexed design to provide additional ride height.
Sway bar relocation for proper clearance
Differential relocation to improve CV operating angle.
Rear block and u-bolt kit provides lift while maintaining spring function and load capacity
FITMENT:
Will NOT work with AT4X or ZR2 models, lower control arm profile is different. Fits all other 2020-2024 GM/Chevy 2500/3500 trucks.Recommended Tires & Wheels
(Trimming may be required)
35 x 12.5 with 20 x 9 and 5.75 in. Backspace
295 / 60 with 20 x 9 and 5.75 in. Backspace
285 / 65 with 20 x 9 and 6.18 in. Backspace
