Carli 1994-2002 2nd Gen Dodge Ram 2500/3500 Full Progressive Leaf Spring Pack Level Height

CS-DFSP-94

In Stock Usually Ships in 1-5 Business Days

Regular price $1,570.00 Save $-1,570.00

-223 in stock

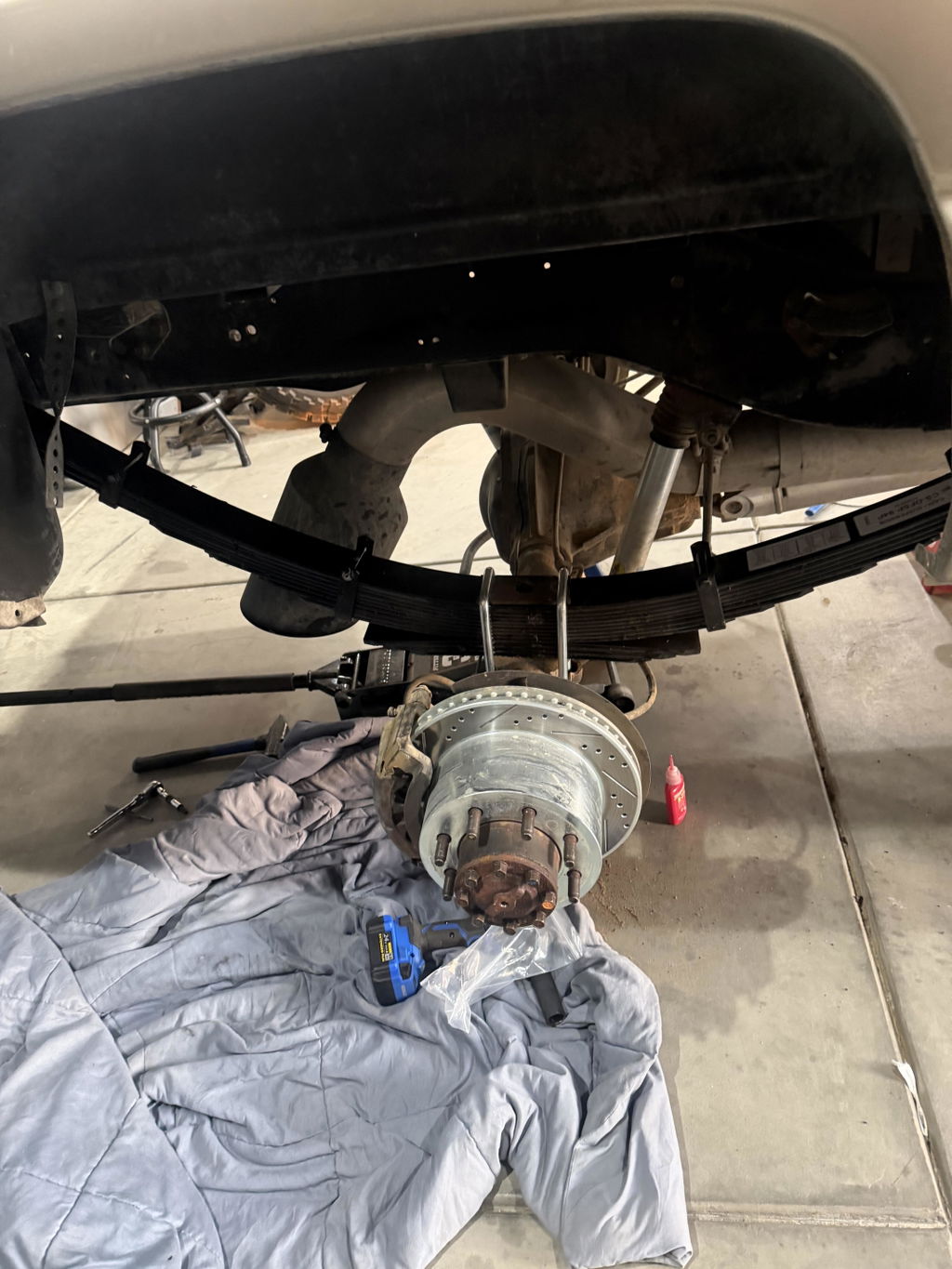

These full length progressive spring packs for second Gen Ram 2500/3500 trucks are built by Deaver Spring MFG specifically for Carli Suspension. These springs were designed as a two stage spring pack, enabling the truck to still have an admirable weight capacity while offering smooth and comfortable street driving performance. Unlike other brands, these leaf packs INCLUDE U-bolts!

These leaf packs are designed to improve travel and articulation compared to stock, and dramatically improve ride quality by softening the spring rate and using a higher count of thinner leaf packs compared to factory.


SPECIFICATIONS

-Sold as a Pair (both rear leaf springs) and INCLUDES U-Bolts

FITMENT GUIDE

These leaf packs provide 1-2" lift to match Carli front coils.

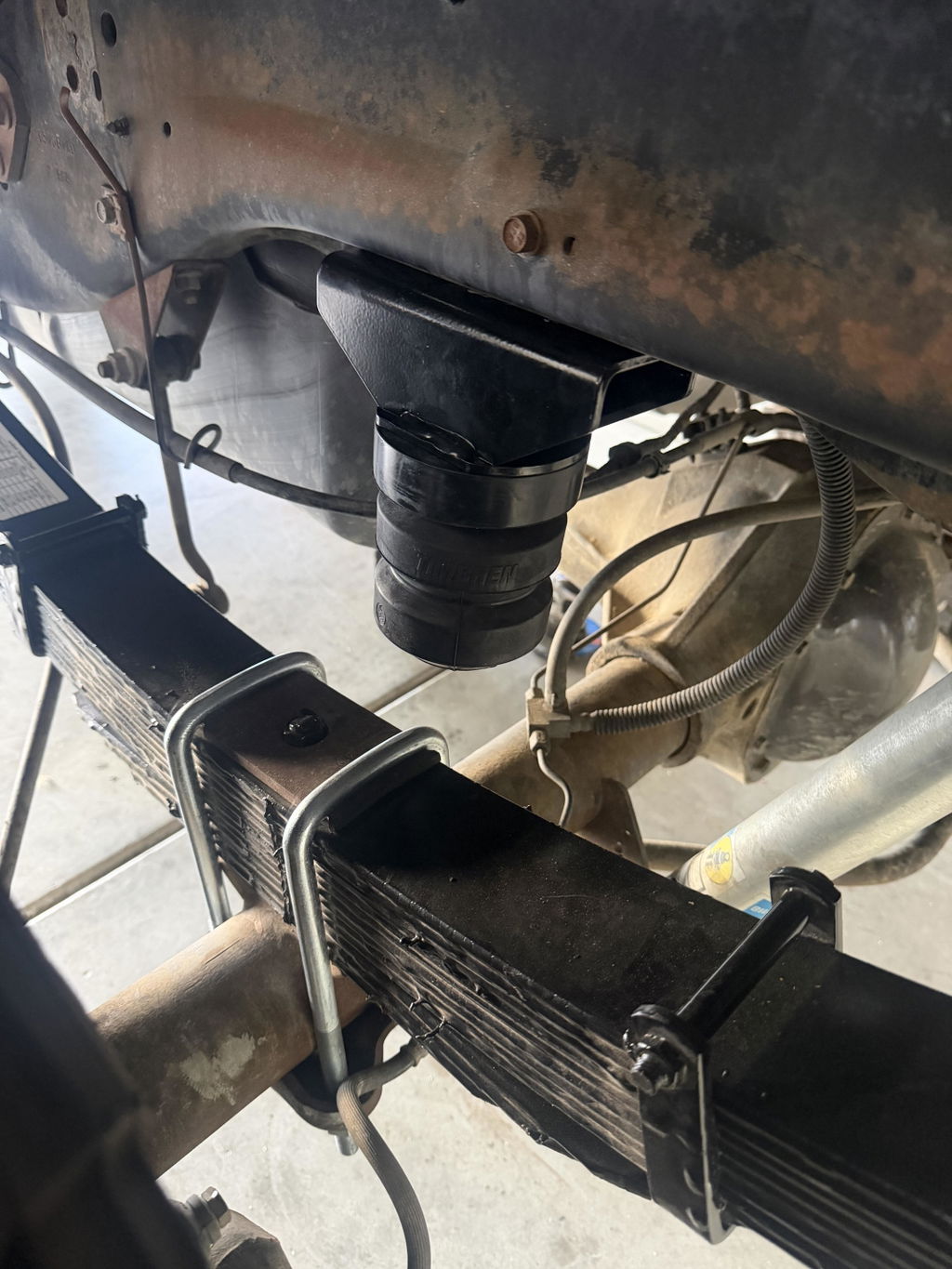

Please note that 2nd gens with these rear leaf springs will also need rear Timbren bump stops, as these leaf packs remove the factory block, which is what the factory bump stop contacts at full compression. The addition of that Timbren part number will allow for proper suspension cycling after block removal be essentially acting as the needed bump stop drop.

Year Model Part Number

1994-2002 DODGE RAM 2500/3500 4x4 Diesel CS-DFSP-94


Installation Instructions

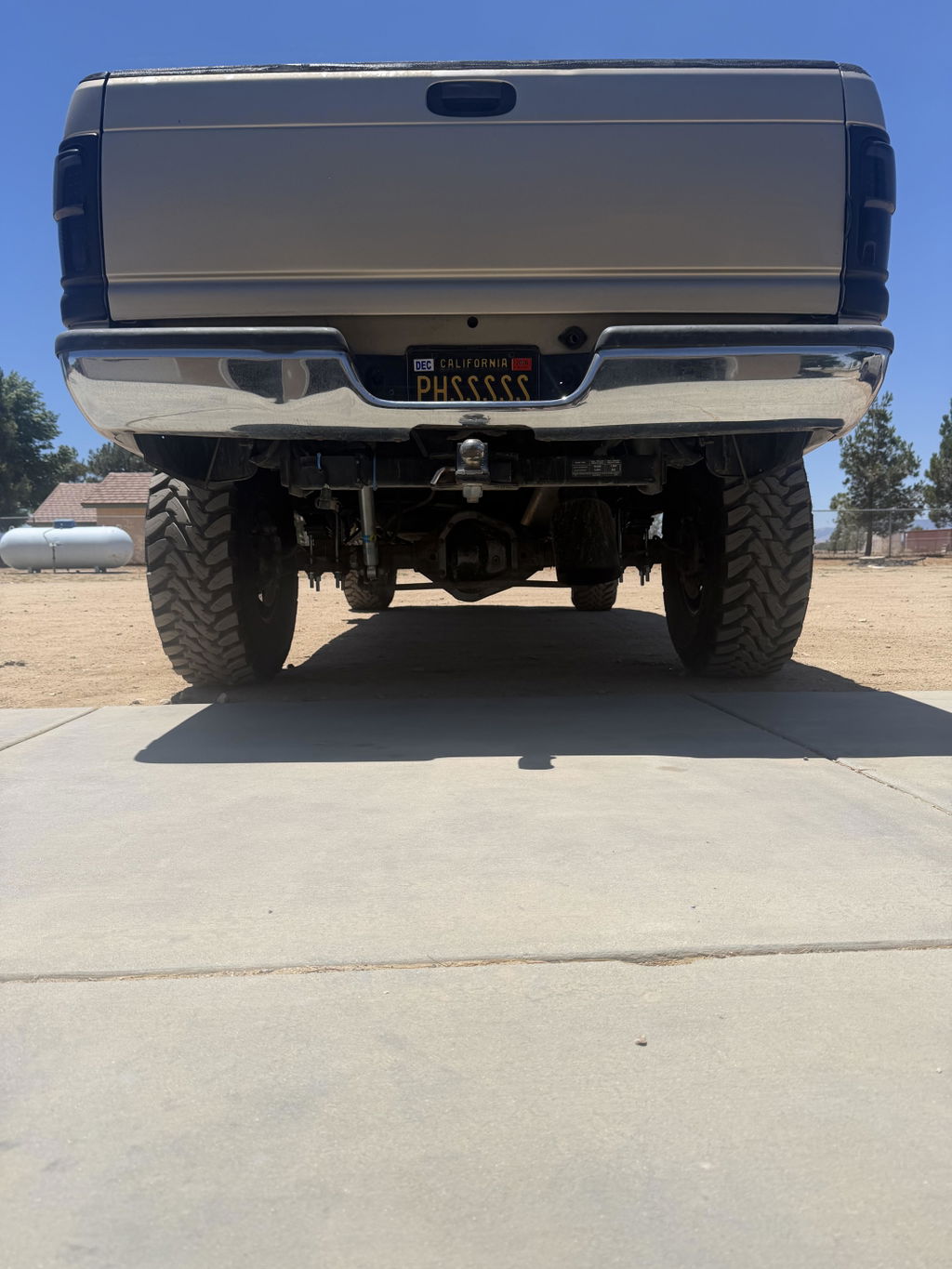

*NOTE: the 1994-02 Ram 2500/3500 trucks are notorious for a driver’s side lean up to 1.5″ (lower on the driver’s side than the passenger’s side). Carli Coil Springs and Leaf Springs for the 1994-02 are designed side-specific to lift the Driver’s side more than the Passenger’s side to lessen/eliminate this common lean. However, we’ve had trucks require the taller spring be installed on the passenger’s side to achieve a level stance and trucks that require the same heigh springs be installed on both sides to achieve a leveled stance. These trucks are not an exact science and were designed long before CAD programs and design standardization. For this reason, we cannot guarantee the truck will sit level side to side nor is the corrective action a “warranty”. Our choice was either discontinue the product line OR present the customer with the design oddities so they know what they’re getting into. As there are not many performance options for the 2nd gen trucks, we elected to keep the product line as the side to side correction can be alleviated with the use of small spring spacers with NO performance degradation.
