Carli 2017+ Ford Super Duty Commuter 2.0 (4.5"/5.5" Lift) Suspension System

CS-F45-C20-17

Availability: Usually Ships in 4 to 6 Weeks

Regular price $2,735.00 Save $-2,735.00

0 in stock
USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The Commuter shock package has the smoothest possible ride on road, but can still handle basic, low speed off roading.
SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck’s ride. To keep the factory ride, select the end link option.
RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.
Carli's Suspension's 2017+ Ford Super Duty Commuter 2.0 system is designed for people seeking the best ride on road an in light off road situations.

The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1″ and the rear 1″-1.5″ depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 4.5″ Lift Systems from the previous generation, 2017-19, are now 5.5″ for the 2020.

The truck will sit 4.5”/5.5" higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while the Sway Bar Link & Drop Brackets Kit resets the sway bar engagement point. The End Link Kit is listed as an “option”, but it’s necessary to run. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, Carli includes Caster Shims to help achieve proper caster. While other "lifts" may cheap out on all these parts, Carli includes everything you need for the best ride and geometry possible.

The Commuter is the beginning of Carli's no-compromise, custom tuned suspensions. The 4.5” lift variation was tuned with the Progressive Add-a-Pack atop the Carli Fabricated 2” Block. The Add-a-Pack installs in place of the lower, factory overload spring to increase small bump sensitivity while maintaining payload and towing spec. The custom tuning in the rear Fox 2.0” shock is optimized to control the combination of our Progressive Add-a-Pack combined with the factory main pack, so we don't advise using the full leaf pack with this system.

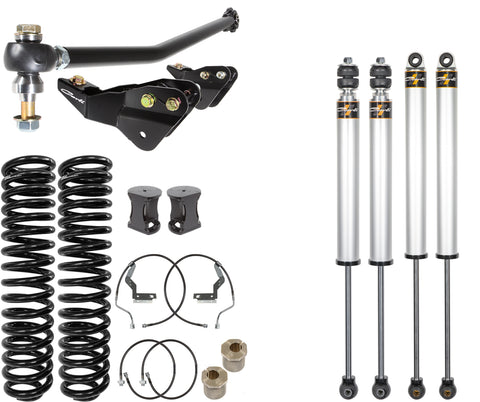

COMPONENTS

-CS-FMRC-05 Carli 4.5" Progressive Coil Springs
-CS-FATB-17 Carli 2017+ Ford Super Duty Adjustable Track Bar
-CS-FC20SPKG-45-05 Carli Commuter 4.5" Shock Package
-CS-FORDBBL-4.5-17 Carli 2017+ Ford Stainless Brake Lines
-CS-FRAD-17 Carli 2017+ Ford Super Duty Radius Arm Drop Brackets
-CS-FBDF-4.5-17 Carli 2017+ Ford 4.5" Front Bump Stop Drops
-CS-FCASTERSHIM-4.5 Carli Ford Super Duty Caster Correction Shims

ALTERED VEHICLE CHARACTERISTICS

-4.5" of Lift on the Front
-2.5" of Lift on the Rear
-Vehicle is "Leveled"
-10.0" of Front Wheel Travel
-12.0" of Rear Wheel Travel

SWAY BAR/REAR SPRINGS

Carli provides the option to select whether or not sway bar drops/end links and rear springs/add a packs are included. In order to complete this system, you will need to select front sway bar drops/end links as well as either rear add a packs/blocks or rear full progressive leaf springs.

-Carli 2017+ Ford Sway Bar End Links - 4.5" Lift
-Carli 2017+ Ford Progressive Add a Packs
-Carli 2017+ Ford Super Duty Full Progressive Leaf Springs - 4.5" Lift

FITMENT GUIDE

Year Model Part Number

2017-2019 FORD F250 / F350 4x4 CS-F45-C20-17

Installation Instructions
