CS-FLVL-PT25-17

Free Ships in 1-5 Business Days

Regular price $4,450.00 Save $-4,450.00

0 in stock
USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The Pintop 2.5 system offers phenomenal capability and ride no matter the situation thanks to the increased shock diameter and reservoirs for heat dissipation.
SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck’s ride. To keep the factory ride, select the end link option.
LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.
RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.

 The Pintop level height system is designed to be the do it all jack of trades for 17+ Super Duty trucks. Need to tow a trailer, commute to work and handle heavy off road driving with one suspension system? This is it.

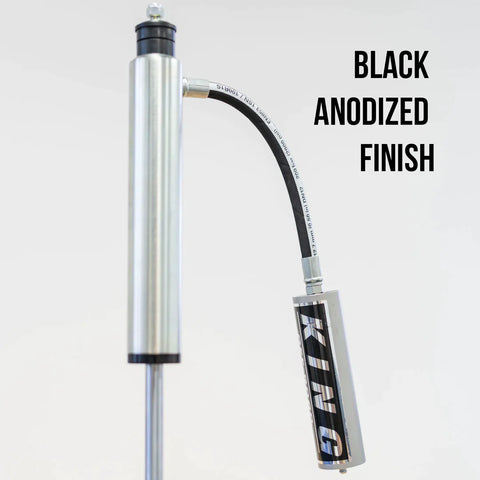

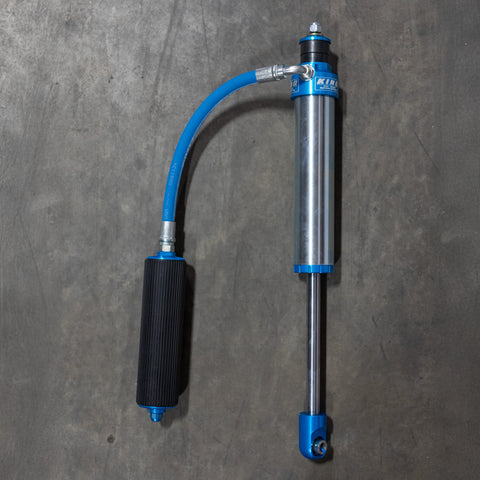

The Pintop 2.5 kit boasts 2.5″ Remote Reservoir King Shocks designed and tuned by Carli Suspension. This kit offers substantial on-road and off-road performance improvement. Customers can expect more control and bottom-out resistance than the Backcountry, but still have excellent on road ride. A “Base Kit” must be accompanied by a Sway Bar option to form a complete system, but everything else is an optional add on to improve ride and handling.

For the best ride, we recommend adding the Carli torsion sway bar and full replacement rear leaf packs. Both are a massive upgrade on and of road, and address key weak points of the factory parts.

The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1″ and the rear 1″-1.5″ depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 2.5″ Lift Systems from the previous generation, 2017-19, are now 3.5″ for the 2020.

If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package. If you find your truck is rear low, we recommend this block kit.

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2017 to current.

Please note if your truck is a 2023+ Platinum/Limited trim equipped with factory headlight angle / load scale sensors you will need these brackets to fix the sensors in place and remove the sensor linkage.

SPECIFICATIONS


-2.5" Front Lift/ 3.5" lift on 2020+ trucks

-Significantly improved on and off road performance

-Custom coil spring rate

-Maintains steering geometry


COMPONENTS


-Carli Front Ford Super Duty 2.5" Leveling Coils

-Carli 2017+ Ford Pintop King 2.5 Shock Package

-Carli 2017+ Ford Super Duty Adjustable Track Bar

-Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines

-Caster Correction Shims

-Carli Leveling Front Bump Stop Drops



OPTIONAL


-Carli 2017+ Ford Progressive Add-A-Packs & Rear Bump Drops

-Carli 2017+ Ford Full Progressive Rear Leaf Springs

-Carli Ford Super Duty Fabricated Radius Arms

-Carli 2017+ Front Sway Bar Drop Brackets


APPLICATIONS


This kit will fit all 2017-2019 Ford F250/F350 Super Duty 4x4 pickups.


FITMENT GUIDE


Year Model Part Number


2017-19 FORD F250 / F350 4x4 CS-FLVL-PT25-17

Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
3.5″ 0-2.5″ 9″ 13″ 2.5″ 35″ x 12.5″
