Carli 2017-22 Ford Super Duty Pintop (4.5"/5.5" Lift) Suspension System

Carli 2017-22 Ford Super Duty Pintop (4.5"/5.5" Lift) Suspension System

Name: Carli 2017-22 Ford Super Duty Pintop (4.5/5.5 Lift) Suspension System
Brand: Carli Suspension
SKU: CS-F45-PT25-17
Price: 5280.0 USD
Availability: InStock

CS-F45-PT25-17

Free Ships in 1-5 Business Days

$5,280.00

Shock Option

Standard Blue Anodizing with Blue Hoses

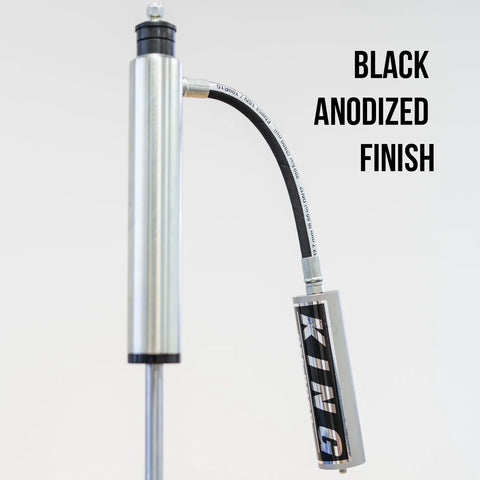

Black Anodizing with Black Hoses

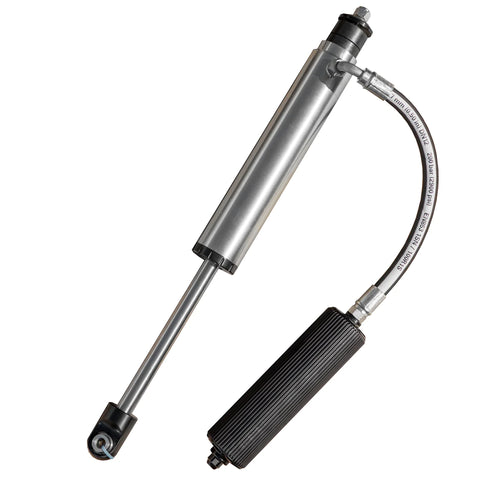

Black Anodizing with Finned Reservoirs

Blue Anodizing with Finned Reservoirs

Quantity

[{"id":39845789761634,"title":"Standard Blue Anodizing with Blue Hoses","option1":"Standard Blue Anodizing with Blue Hoses","option2":null,"option3":null,"sku":"CS-F45-PT25-17","requires_shipping":true,"taxable":true,"featured_image":{"id":28044334170210,"product_id":3706359873588,"position":1,"created_at":"2021-06-01T14:32:42-07:00","updated_at":"2021-11-29T17:10:21-08:00","alt":"Carli 2017+ Ford Super Duty Pintop (4.5\"\/5.5\" Lift) Suspension System - CJC Off Road","width":1500,"height":1255,"src":"\/\/www.cjcoffroad.com\/cdn\/shop\/products\/CS-F45-PT25-17.jpg?v=1638234621","variant_ids":[39845789761634]},"available":true,"name":"Carli 2017-22 Ford Super Duty Pintop (4.5\"\/5.5\" Lift) Suspension System - Standard Blue Anodizing with Blue Hoses","public_title":"Standard Blue Anodizing with Blue Hoses","options":["Standard Blue Anodizing with Blue Hoses"],"price":528000,"weight":68039,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","featured_media":{"alt":"Carli 2017+ Ford Super Duty Pintop (4.5\"\/5.5\" Lift) Suspension System - CJC Off Road","id":20361016770658,"position":1,"preview_image":{"aspect_ratio":1.195,"height":1255,"width":1500,"src":"\/\/www.cjcoffroad.com\/cdn\/shop\/products\/CS-F45-PT25-17.jpg?v=1638234621"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39845789794402,"title":"Black Anodizing with Black Hoses","option1":"Black Anodizing with Black Hoses","option2":null,"option3":null,"sku":"CS-F45-PT25-17-BLACKANO","requires_shipping":true,"taxable":true,"featured_image":{"id":28641920942178,"product_id":3706359873588,"position":4,"created_at":"2022-07-08T12:01:43-07:00","updated_at":"2022-07-08T12:01:44-07:00","alt":"Carli 2017+ Ford Super Duty Pintop (4.5\"\/5.5\" Lift) Suspension System - CJC Off Road","width":1080,"height":1080,"src":"\/\/www.cjcoffroad.com\/cdn\/shop\/products\/BlackAnodizedCarliKingPhoto_72a59230-ea91-401d-ae50-33b334bb2e1d.webp?v=1657306904","variant_ids":[39845789794402]},"available":true,"name":"Carli 2017-22 Ford Super Duty Pintop (4.5\"\/5.5\" Lift) Suspension System - Black Anodizing with Black Hoses","public_title":"Black Anodizing with Black Hoses","options":["Black Anodizing with Black Hoses"],"price":578000,"weight":68039,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","featured_media":{"alt":"Carli 2017+ Ford Super Duty Pintop (4.5\"\/5.5\" Lift) Suspension System - CJC Off Road","id":20978490015842,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/www.cjcoffroad.com\/cdn\/shop\/products\/BlackAnodizedCarliKingPhoto_72a59230-ea91-401d-ae50-33b334bb2e1d.webp?v=1657306904"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":40463378317410,"title":"Black Anodizing with Finned Reservoirs","option1":"Black Anodizing with Finned Reservoirs","option2":null,"option3":null,"sku":"CS-F45-PT25-17-BLACKANO-FIN","requires_shipping":true,"taxable":true,"featured_image":{"id":29633565720674,"product_id":3706359873588,"position":5,"created_at":"2023-09-25T17:13:23-07:00","updated_at":"2023-09-25T17:13:23-07:00","alt":null,"width":1080,"height":1080,"src":"\/\/www.cjcoffroad.com\/cdn\/shop\/products\/DSC9866_1080x_f21521c4-286a-456c-9466-aa2e7204ba2b.webp?v=1695687203","variant_ids":[40463378317410]},"available":true,"name":"Carli 2017-22 Ford Super Duty Pintop (4.5\"\/5.5\" Lift) Suspension System - Black Anodizing with Finned Reservoirs","public_title":"Black Anodizing with Finned Reservoirs","options":["Black Anodizing with Finned Reservoirs"],"price":618000,"weight":68039,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":21993235480674,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/www.cjcoffroad.com\/cdn\/shop\/products\/DSC9866_1080x_f21521c4-286a-456c-9466-aa2e7204ba2b.webp?v=1695687203"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51814681346418,"title":"Blue Anodizing with Finned Reservoirs","option1":"Blue Anodizing with Finned Reservoirs","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli 2017-22 Ford Super Duty Pintop (4.5\"\/5.5\" Lift) Suspension System - Blue Anodizing with Finned Reservoirs","public_title":"Blue Anodizing with Finned Reservoirs","options":["Blue Anodizing with Finned Reservoirs"],"price":568000,"weight":68039,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.

CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The Pintop 2.5 system offers phenomenal capability and ride no matter the situation thanks to the increased shock diameter and reservoirs for heat dissipation.

SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck’s ride. To keep the factory ride, select the end link option.

LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.

RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.

Carli's 4.5" Super Duty suspension systems are the premier option for 2017-22 Ford Super Duty pickups. Carli has spent countless time tuning the shocks in this system, offering the best in both on road and off road ride quality and handling. This kit offers substantial on-road and off-road performance improvement. Customers can expect more control and bottom-out resistance than the Backcountry, but still have excellent on road ride. With the 4.5" system, there is also an increase in travel and ride quality over the 2.5" kits.

Carli designed a custom piston and custom tuned the King shocks to ride as smooth as possible on and off road. All of Carli's King shock shafts are machined and polished from a solid piece of 17-4 Stainless. The shocks are finished with King oil good to -55° F.

The truck will sit 4.5/5.5" higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while the Sway Bar Link & Drop Brackets Kit resets the sway bar engagement point. The End Link Kit is listed as an “option”, but it’s necessary to run. Carli plans to release a Torsion Sway Bar in the near future so the end-link options were pulled from the base kit and made selectable in anticipation of the second option. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle, and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, Carli includes Caster Shims to help achieve proper caster.

The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1″ and the rear 1″-1.5″ depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 4.5″ Lift Systems from the previous generation, 2017-19, are now 5.5″ for the 2020.

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 -Current

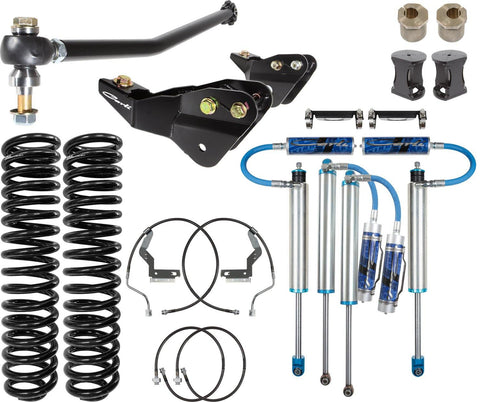

COMPONENTS

-CS-FMRC-05 Carli 4.5" Progressive Coil Springs
-CS-FATB-17 Carli 2017+ Ford Super Duty Adjustable Track Bar
-CS-FPTSPKG-4.5-17 Carli Ford Super Duty Pintop Shock Package
-CS-FORDBBL-4.5-17 Carli 2017+ Ford Stainless Brake Lines
-CS-FRAD-17 Carli 2017+ Ford Super Duty Radius Arm Drop Brackets
-CS-FBDF-4.5-17 Carli 2017+ Ford 4.5" Front Bump Stop Drops
-CS-FCASTERSHIM-4.5 Carli Ford Super Duty Caster Correction Shims

ALTERED VEHICLE CHARACTERISTICS

-4.5" of Lift on the Front/ 5.5" on 2020+ trucks
-2.5" of Lift on the Rear
-Vehicle is "Leveled"
-10.0" of Front Wheel Travel
-12.0" of Rear Wheel Travel

SWAY BAR/REAR SPRINGS

Carli provides the option to select whether or not sway bar drops/end links and rear springs/add a packs are included. In order to complete this system, you will need to select front sway bar drops/end links as well as either rear add a packs/blocks or rear full progressive leaf springs.

-Carli 2017+ Ford Sway Bar End Links - 4.5" Lift
-Carli 2017+ Ford Progressive Add a Packs
-Carli 2017+ Ford Super Duty Full Progressive Leaf Springs - 4.5" Lift

FITMENT GUIDE

Year Model Part Number

2017-2019 FORD F250 / F350 4x4 CS-F45-PT25-17

Front Lift	Rear Lift	Front Travel	Rear Travel	Shock Diameter	Tire Fitment
5.5″	3″-4″	11″	13″	2.5″	37″ x 13.5″

Installation Instructions

Incredible upgrades!

The Carli lift and Pintop suspension upgrades made a huge difference in my truck! The 40” BFG HD tires look and perform very well on the road and are capable for these HD trucks. Off-road capabilities and ride are also far improved. I liked my truck before but I love it now!! CJC are the best and I’d highly recommend them to anyone who wants to upgrade their ride!!

One of the best lifts I've ever seen.

Fantastic company, The kit CJC Off Road sent was immaculate! Nothing missing, Instructions were a breeze. All the parts were perfect. What a great company
4.5” Carli Pintop installed on a 2020 F350 tremor

Superduty Pintop

I could immediately tell the difference and what a difference it is. Absorbs so much more, it isn't even a comparison. Feels like a completely different truck. Honestly this is how they should come from the factory. Took it out to the desert and ran it through everything I could from flat dirt roads, to whoops (slow and fast speeds), to rocks. Handled everything with ease. The team at CJC were incredibly professional, nice, and quick. Hands down the best suspension on the market and would definitely recommend to anyone thinking about it.

Pintop for the Dub

Everything about this kit is perfect. Started with the backcountry 2.0 but shourtiy after, upgraded to the Pintop with all the extras and running 38’s. Couldn’t be happier. Rides like a boss on the dirt and smooth as eggs on the highway.

BEST KIT ON THE MARKET

Nothing can make a 7000+lb truck ride like it does with this kit! 100% recommend!
