CS-F45-CO25-BYP-11

Regular price $8,545.00 Save $-8,545.00

0 in stock
USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. You won't find a better riding coil over system on the market, especially one with the raw off road capability of this kit!
LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.
RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.

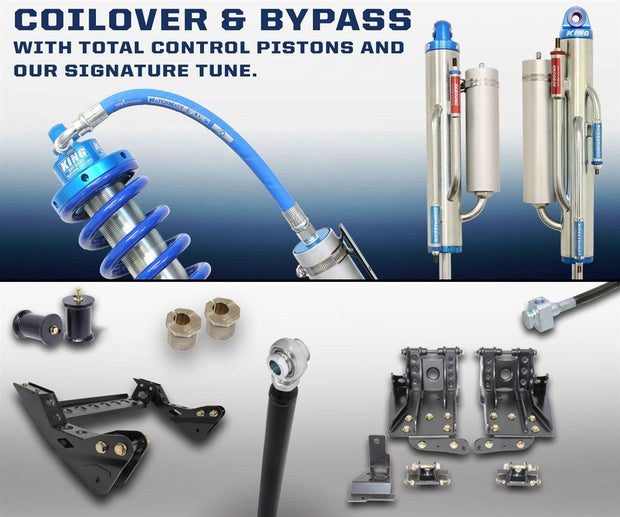

Carli Suspension's Ford Super Duty 2.5 Coilover/Bypass suspension system is intended to be the baddest coilover system available for your Ford Super Duty. Featuring Full Progressive Rear Deaver Leaf Springs, and Front and Rear Bypass Shocks, this system offers all of the fixings!

FEATURES

-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Corrosion-Resistant Stainless Shock Shafts
-Tighter street feel Driving Characteristics
-Increased Suspension Response
-Steering geometry is all within OEM specs, no additional components are necessary
-Towing/hauling capacity is the same as OEM, no reduction of capability

WHEEL TRAVEL

-10 Inches of Front Wheel Travel
-12 Inches of Rear Wheel Travel

ALTERED VEHICLE CHARACTERISTICS

-4.5 Inches of Lift on the Front
-2.5 Inches of Lift on the Rear
-Vehicle is "Leveled" from Stock Setup

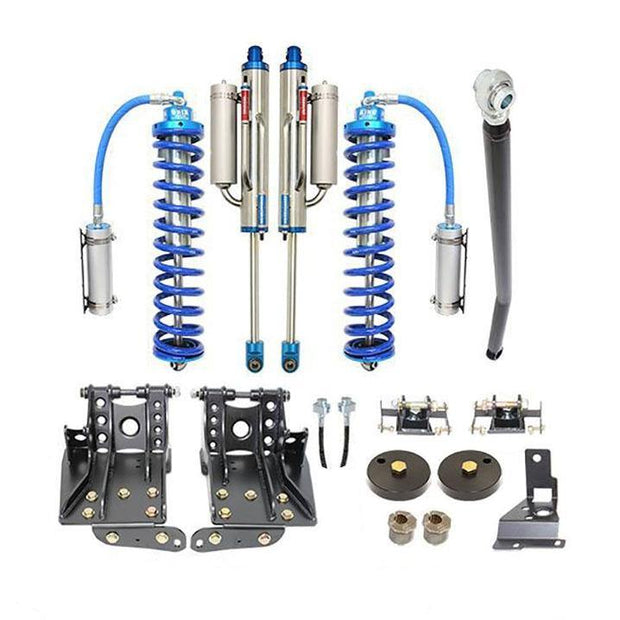

COMPONENTS

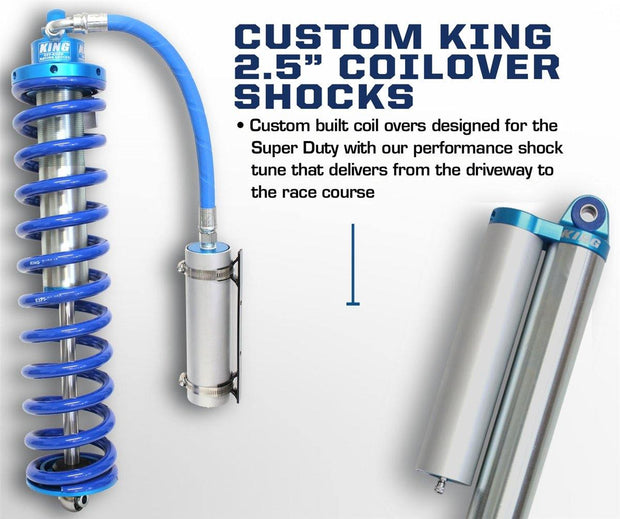

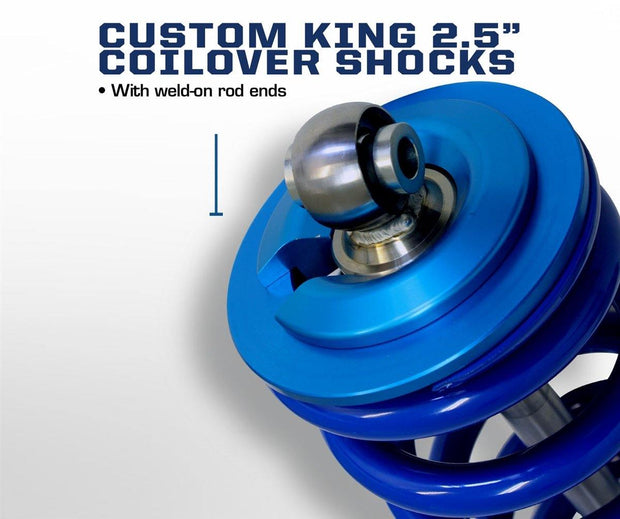

-KING 2.5"x10" Custom Front Coil Over Shocks
-KING 2.5" Front Bypass Shocks
-KING 2.5 3-Tube Rear Bypass Shocks with 3.0" Rebound

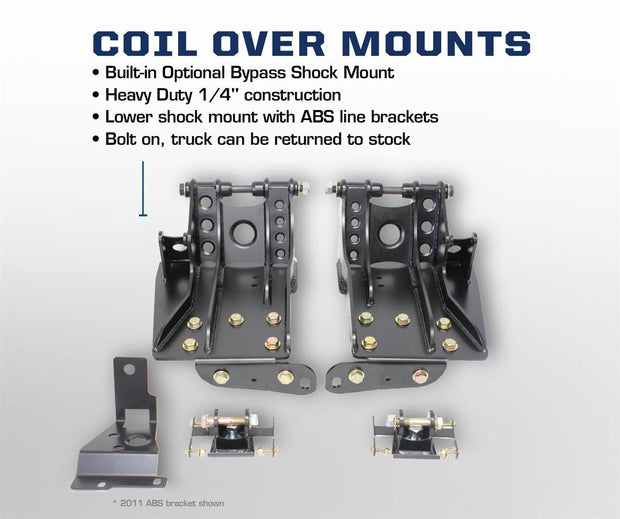

-Coil Over Mounting Kit
-Limit Straps

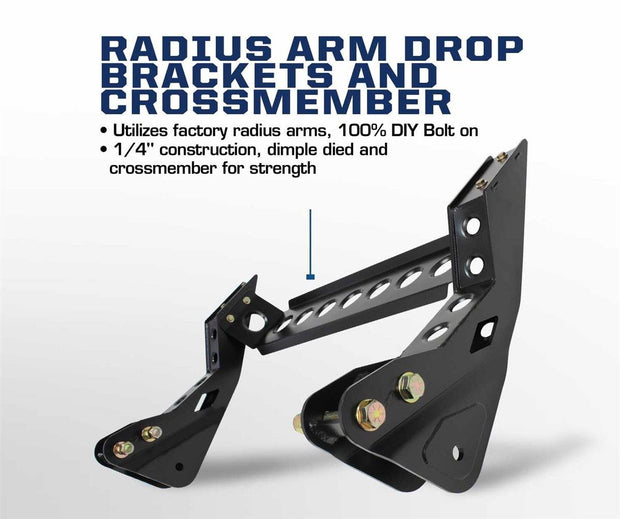

-Radius Arm Drop Bracket Kit with Dimple Die Cross Member

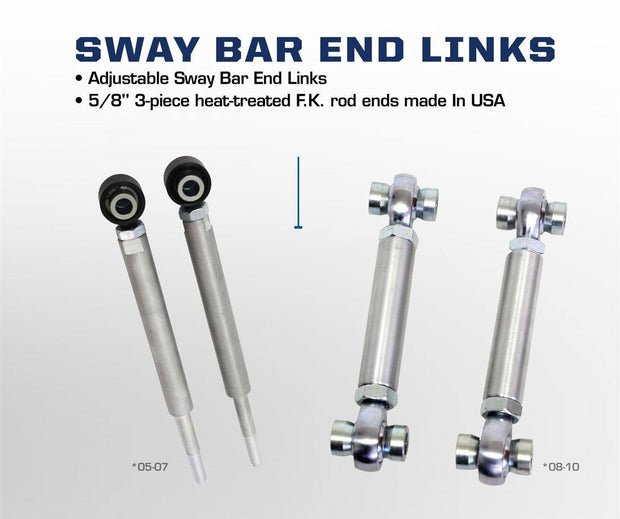

-Sway Bar End Links

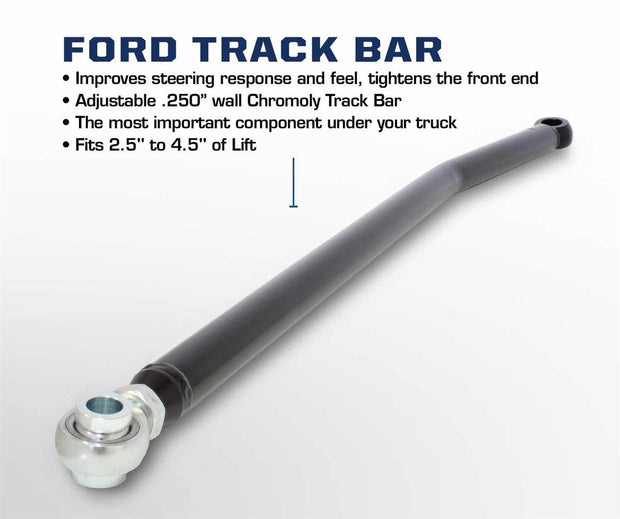

-Adjustable Track Bar
-Full Progressive Deaver Rear Leaf Springs

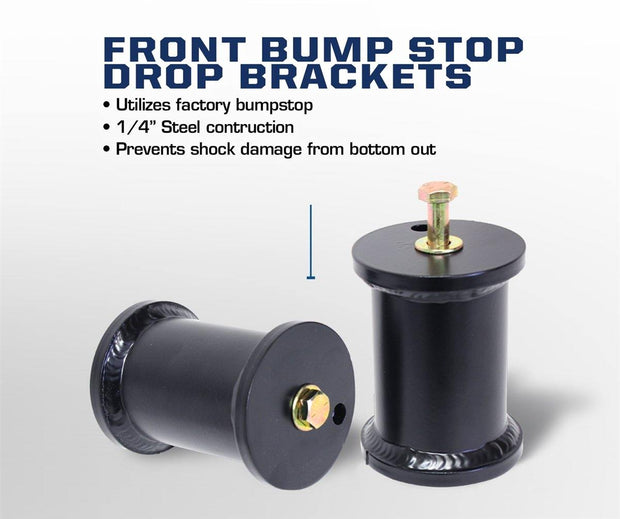

-Front Bump Stop Drops

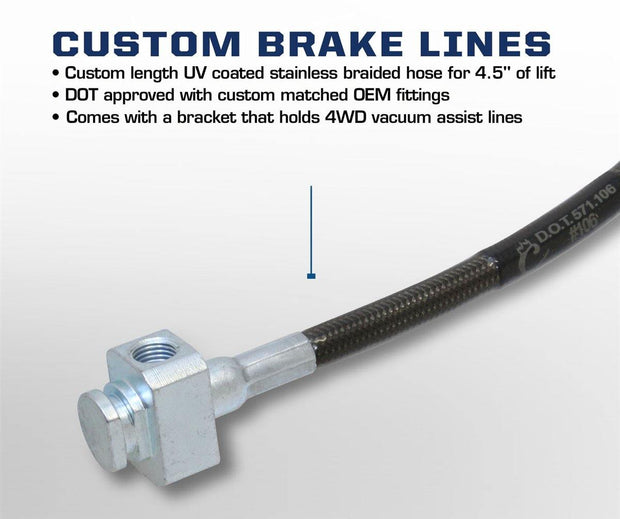

-Extended Braided Brake lines

FITMENT GUIDE

Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-F45-CO25-BYP-11
2008-2010 FORD F250 / F350 4x4 CS-F45-CO25-BYP-08
2005-2007 FORD F250 / F350 4x4 CS-F45-CO25-BYP-05
