Carli Ford Super Duty 05-16 2.5" Coilover (2.5" Lift) Suspension System


Free Ships in 1-5 Business Days

Regular price $5,470.00 Save $-5,470.00

0 in stock
USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. This system is well balanced between comfort and capability, and is upgradeable to incorporate the bypass shocks at any time should you need more.
LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.
RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.

This Ford Suspension system brings dramatic improvements to the every day street ride, and plenty of dampening for off road use. This system gives 2.5" of lift with 9 inches of wheel travel in the front and 12 inches of wheel travel in the rear. There is a full spring pack option as well as a front bypass shock option. The bypass mount is already built into the coil over mount, so the bypass can be added at any time.

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.

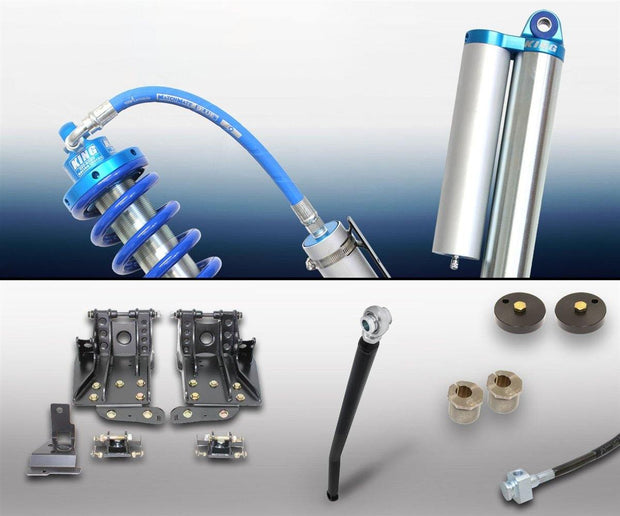

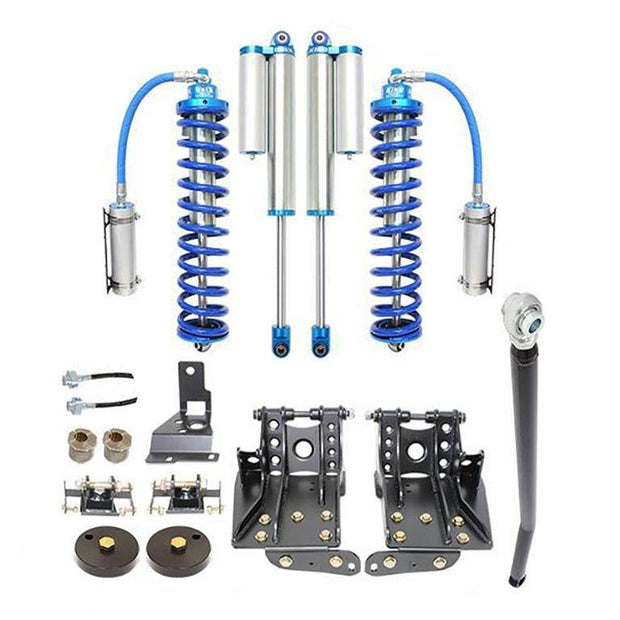

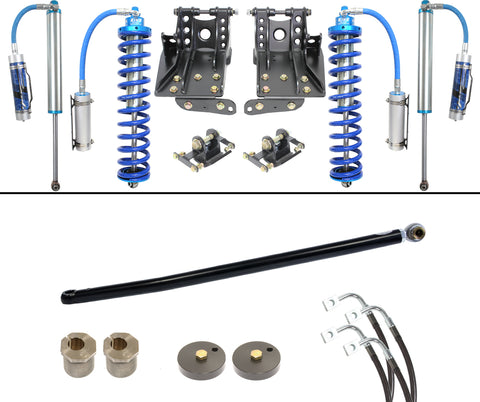

-King 2.5"x8" Custom Front Coilover Shocks
-King 2.5"x12" Custom Rear Shocks
-Coil Over Mounting Kit
-Adjustable Track Bar
-6 Leaf Progressive Add-A-Pack
-Billet Aluminum Front Bump Drops
-Stainless Braided Brake Lines


-17-4 Stainless Steel Shafts
-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Tighter street feel
-Increased Suspension Response Steering geometry is all within OEM specs
-No additional components are necessary
-Towing/hauling capacity is the same as OEM
-No reduction of capability


-Level 2.5" of Lift on the Front
-1 Inch of Lift in Rear
-Vehicle is "Leveled"


-8" of Front Wheel Travel
-13" of Rear Wheel Travel

*F350's will require the factory F250 rear block to obtain a level stance if using the standard included rear add-a-pack. F250 blocks are not necessary if full progressive leaf springs are chosen above. F250 rear blocks are available in the options above.


Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-FLVL-CO25-11
2008-2010 FORD F250 / F350 4x4 CS-FLVL-CO25-08
2005-2007 FORD F250 / F350 4x4 CS-FLVL-CO25-05

Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
4.5″ 0-3.5″ 10″ 13″ 2.5″ 37″ x 13.5″

Installation Instructions
