Carli Ford Super Duty 05-16 Coilover Bypass (2.5" Lift) Suspension System
Carli Ford Super Duty 05-16 Coilover Bypass (2.5" Lift) Suspension System
Carli Ford Super Duty 05-16 Coilover Bypass (2.5" Lift) Suspension System
Carli Ford Super Duty 05-16 Coilover Bypass (2.5" Lift) Suspension System

Carli Ford Super Duty 05-16 Coilover Bypass (2.5" Lift) Suspension System

CS-FLVL-CO25-BYP-11

Usually Ships in 10 to 12 Weeks

Regular price $7,485.00 Save $-7,485.00

0 in stock
USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. This system features and absolutely insane amount of capability in the dirt, but is still comfortable on road. If you want to jump your truck and power through whoops, this is your system. There is nothing more capable!
LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.
RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.

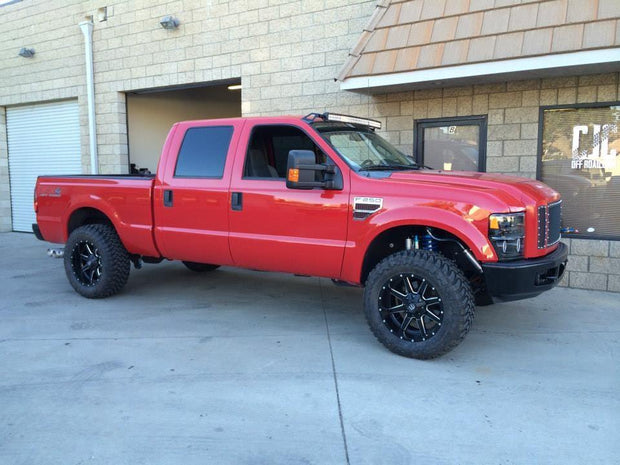

Our Ford Suspension system brings dramatic improvements to the every day street ride, and capability to handle heavy off road use. At the heart of our Super Duty Coil Over Suspension System lies a KING shock package which delivers impeccable performance and reliability. This system gives 2.5" of lift with 9 inches of wheel travel in the front and 12 inches of wheel travel in the rear. The progressive full springs custom built by Deaver will ensure ride quality, travel, and performance are unmatched. The bypass mount is already built into the coil over mount, making your custom King Bypass Shocks an easy bolt-on affair.

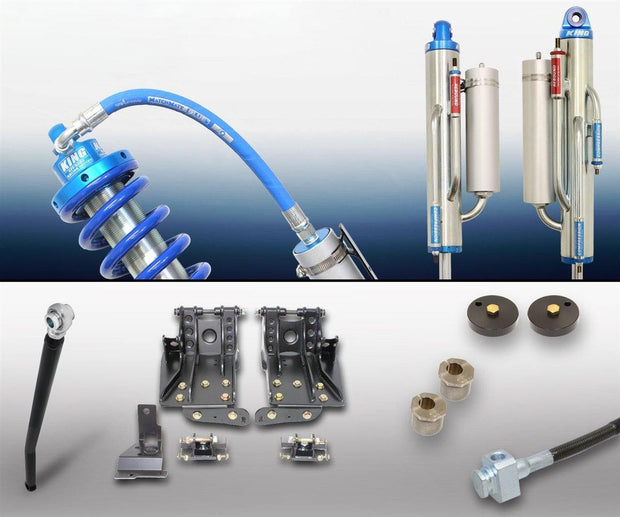

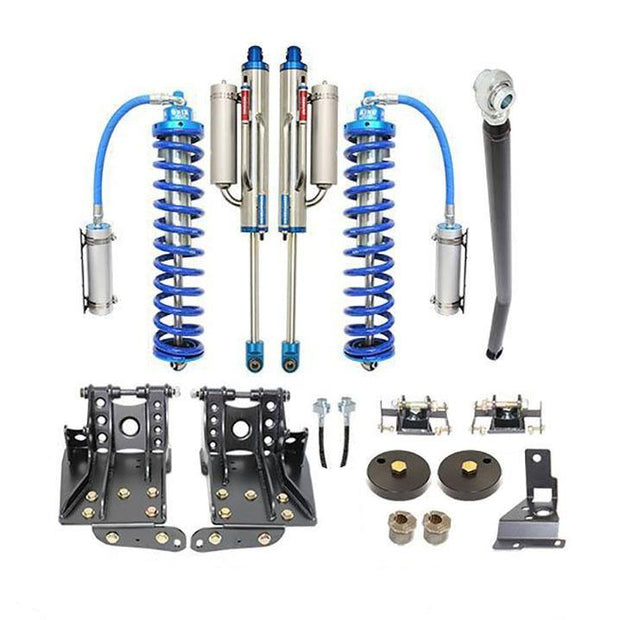

COMPONENTS

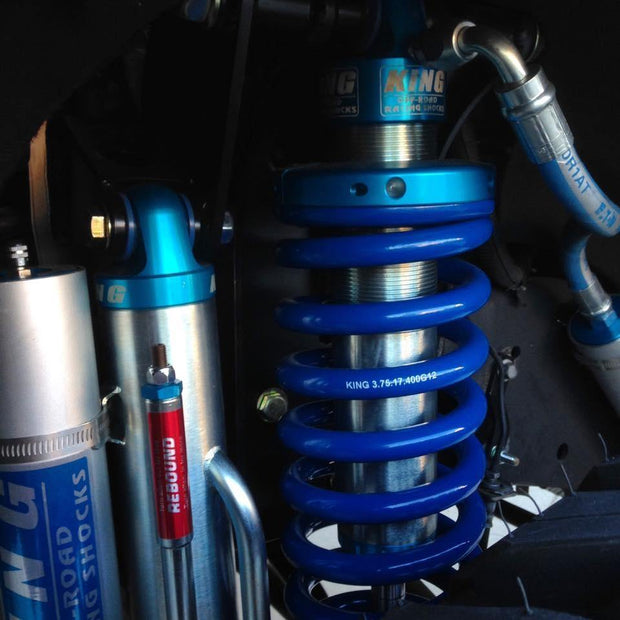

-King 2.5"x8" Custom Front Coilover Shocks
-King 2.5"x12" Custom Rear 3-Tube Bypass Shocks
-King 2.5"x8" Custom Front 2-Tube Bypass Shocks
-Coil Over Mounting Kit
-Adjustable Track Bar
-Billet Aluminum Front Bump Drops
-Stainless Braided Brake Lines

FEATURES

-17-4 Stainless Steel Shafts
-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Tighter street feel
-Increased Suspension Response Steering geometry is all within OEM specs
-No additional components are necessary
-Towing/hauling capacity is the same as OEM
-No reduction of capability

ALTERED VEHICLE CHARACTERISTICS

-Level 2.5" of Lift on the Front
-1 Inch of Lift in Rear
-Vehicle is "Leveled"

WHEEL TRAVEL

-10" of Front Wheel Travel
-12" of Rear Wheel Travel

FITMENT GUIDE

Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-FLVL-CO25-BYP-11
2008-2010 FORD F250 / F350 4x4 CS-FLVL-CO25-BYP-08
2005-2007 FORD F250 / F350 4x4 CS-FLVL-CO25-BYP-05

Installation Instructions
