Carli Ford Super Duty 05-16 Dominator 3.0 (2.5" Lift) Suspension System

CS-FLVL-D30-05

Usually Ships in 10 to 12 Weeks

Regular price $6,650.00 Save $-6,650.00

0 in stock
USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The Carli tuned King 3.0 Dominator shocks are hands down the smoothest all around package offered for a Ford Super Duty.
LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.
RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.
Carli Suspension's Ford Super Duty Dominator 3.0 leveling system is designed to be the best do it all suspension system available for Ford trucks. This Ford Suspension system brings dramatic improvements to the every day street ride, but the capability to absolutely hammer in the dirt. This system gives 2.5" of lift with 10 inches of wheel travel in the front and 13 inches of wheel travel in the rear. To maximize the full potential of this system, it comes standard with full Deaver Progressive Leaf Springs and stainless shock shafts from King for long life in hostile environments.

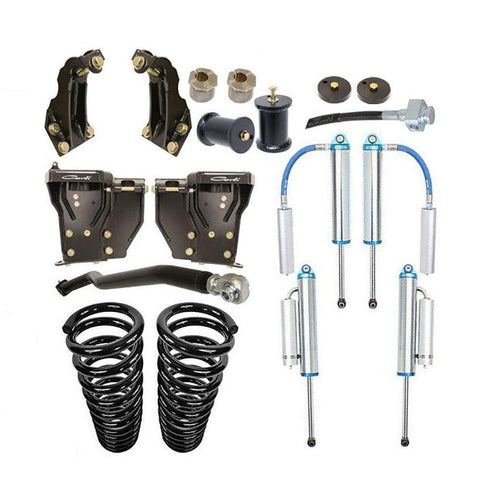

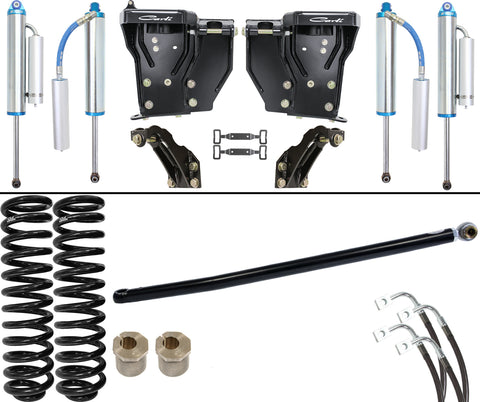

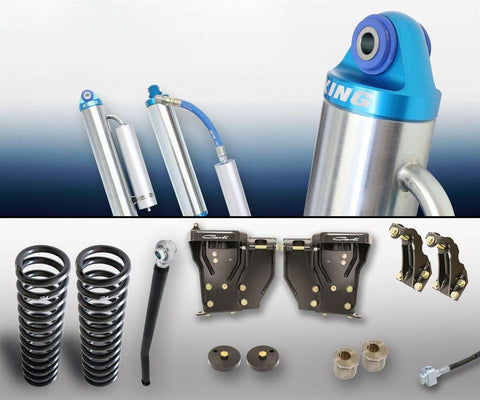

COMPONENTS

-King 3.0 Piggyback Shocks
-Stainless Shafts
-Fabricated Coil Bucket Mounting Kit
-Carli Front Leveling Coil Springs
-Adjustable Track Bar
-Front and Rear Bump Stop Drops
-Stainless Braided Brake Lines
-Rear Shock Mounts
-Caster Adjustment Shims

FEATURES

-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Tighter street feel Driving Characteristics
-Increased Suspension Response
-Steering geometry is all within OEM specs
-No additional components are necessary
-Bolt-On Performance

ALTERED VEHICLE CHARACTERISTICS

-2.5" of Lift on the Front
-1" of Lift on the Rear
-Level Ride Height
-10" of Front Wheel Travel
-13" of Rear Wheel Travel

FITMENT GUIDE

Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-FLVL-D30-11
2008-2010 FORD F250 / F350 4x4 CS-FLVL-D30-08
2005-2007 FORD F250 / F350 4x4 CS-FLVL-D30-05

Installation Instructions
