Carli Ford Super Duty 05-16 Pintop 2.5 (2.5" Lift) Suspension System

CS-FLVL-PT25-11

Free Ships in 3-5 Business Days

Regular price $3,920.00 Save $-3,920.00

0 in stock
USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The 2.5" diameter King Pintop shocks are tuned to tackle the streets or high speed off road driving.
RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.
LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.

This system was developed for outstanding on-road and highway performance while offering King shock with Carli's custom pistons and valve profile. Off road performance takes a huge step up, while maintaining Carli's signature street ride. Your truck will sit higher and as a result have more wheel travel.

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.

COMPONENTS

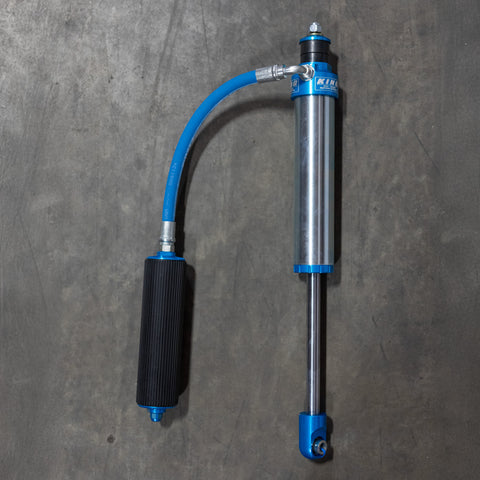

-King Pintop 2.5" Remote Reservoir Shocks

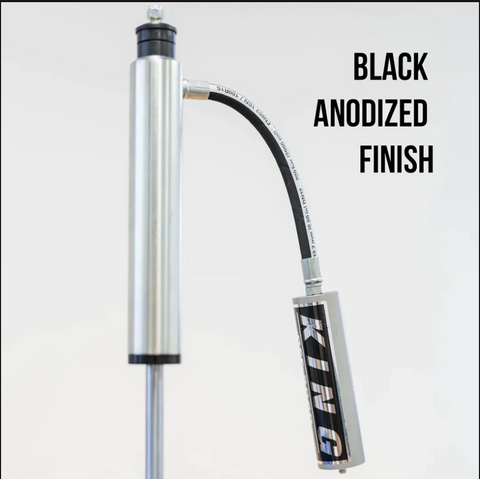

-King Piggy Back 2.5" Remote Reservoir Shocks
-Carli Linear-Rate Coil Springs
-Adjustable Track Bar
-6 Leaf Progressive Add-A-Pack
-Billet Aluminum Front Bump Drops
-Stainless Braided Brake Lines

FEATURES

-17-4 Stainless Steel Shafts
-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Tighter street feel
-Increased Suspension Response Steering geometry is all within OEM specs
-No additional components are necessary
-Towing/hauling capacity is the same as OEM
-No reduction of capability

ALTERED VEHICLE CHARACTERISTICS

-Level 2.5" of Lift on the Front
-F250: 2" of Rear Lift
-F350: 1" of Rear Lift

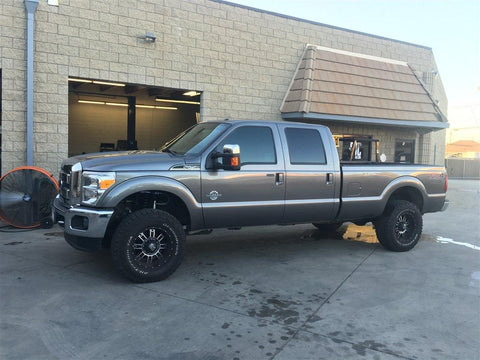

-Vehicle is "Leveled"
-9" of Front Wheel Travel
-12" of Rear Wheel Travel

*F350's will require the factory F250 rear block to obtain a level stance if using the standard included rear add-a-pack. F250 blocks are not necessary if full progressive leaf springs are chosen above. F250 rear blocks are available in the options above.

FITMENT GUIDE

Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-FLVL-PT25-11
2008-2010 FORD F250 / F350 4x4 CS-FLVL-PT25-08
2005-2007 FORD F250 / F350 4x4 CS-FLVL-PT25-05

Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
2.5″ 0-2″ 9″ 13″ 2.5″ 35″ x 12.5″



Installation Instructions
