Carli Ford Super Duty 05-16 Starter System (2.5" Lift)

CS-FLVL-STR-SIG-11

Free Ships in 1-5 Business Days

Regular price $1,670.00 Save $-1,670.00

0 in stock
USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The Fox 2.0 Commuter shocks have been carefully tuned for the softest and most comfortable ride on the street and mild dirt roads.

The Carli Ford Super Duty Starter system is designed for people who want a Level 2.5" suspension lift with a bit more performance and ride quality. Your truck will sit higher and have more wheel travel while maintaining stock ride quality, towing and payload capacity.

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.

COMPONENTS

-Carli Signature Series Shocks
-Carli Linear-Rate Coil Springs
-Carli Adjustable Track Bar
-Carli Caster Correction Shims
-Carli Brake Lines

FEATURES

-Superior Ride Quality
-Very Controlled Off Road
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Tighter Street Feel Driving Characteristics
-Increased Suspension Response
-Steering geometry is all within OEM specs, no additional components are necessary
-Towing/hauling capacity is the same as OEM, no reduction of capability

ALTERED VEHICLE CHARACTERISTICS

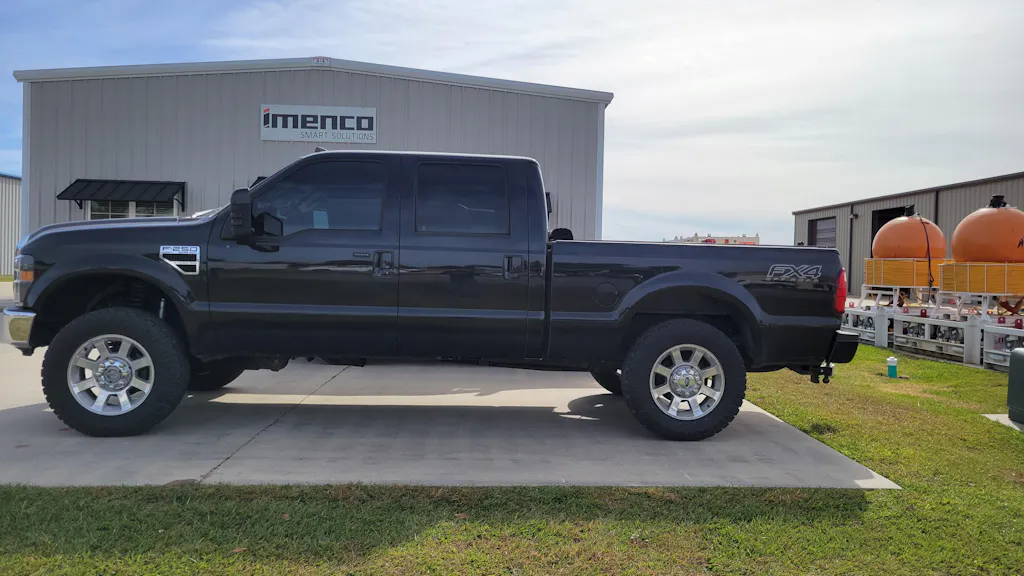

-Level 2.5" of Lift on the Front
-F250: 2" of Rear Lift
-F350: 1" of Rear Lift
-Vehicle is "Leveled"
-9" of Front Wheel Travel
-12" of Rear Wheel Travel

*F350's will require the factory F250 rear block to obtain a level stance if using the standard included rear add-a-pack. F250 blocks are not necessary if full progressive leaf springs are chosen above. F250 rear blocks are available in the options above.

FITMENT GUIDE

Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-FLVL-STR-11
2008-2010 FORD F250 / F350 4x4 CS-FLVL-STR-08
2005-2007 FORD F250 / F350 4x4 CS-FLVL-STR-05

Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
2.5″ 0-2″ 9″ 13″ 2.0 35″ x 12.5″



Installation Instructions
