CS-F45-UC30-11

Regular price $8,600.00 Save $-8,600.00

0 in stock
USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The tuning on the unchained system is able to handle the biggest hits and most aggressive driving you can possibly do. Jumps, whoops and high speeds are no match for this kit.
RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. These arms feature a fabricated notch making it possible to clear 37’s on a wider range of wheels.
Meet the Unchained system. Designed and tuned as a no-compromise on and off-road suspension, this kit starts with the biggest shocks that can safely fit without extensive modifications. Simply put, there is no bolt on Ford suspension system that is as capable as the 4.5 Unchained.
To maximize the full potential of this system, it comes standard with our Full Progressive Leaf Springs and Stainless Shock Shafts from King for long life in hostile environments. The Unchained System was designed for skilled, experienced drivers with considerable seat time in a heavy-duty vehicle driven in offroad environments. This system is NOT for Novice Off-Roaders and we recommend a full cab roll-cage be installed prior to searching out the capability of this system. All the above performance is packed into a bolt-on (fully returnable to stock) suspension system.
COMPONENTS

-Front KING 3.0, 2-Tube Bypass Piggyback Shocks with Extended Bump Zone
-Rear KING 3.0, 4-Tube Bypass Piggyback Shocks with Oversized Rebound
-Custom 17-4 Stainless Shafts
-Fabricated Coil Bucket Mounting Kit
-Carli Multi-Rate Coil Springs

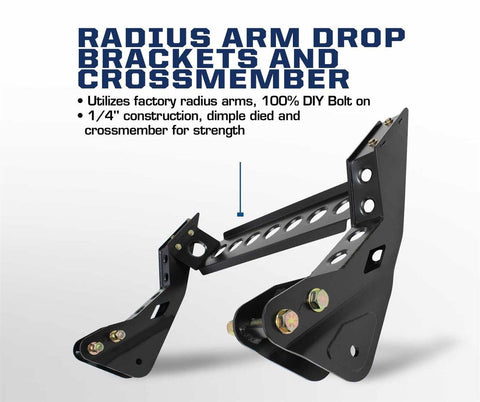

-Radius Arm Drop Bracket Kit with Dimple Die Cross Member
-Sway Bar End Links/Drops
-Adjustable Track Bar
-Full Progressive Leaf Spring
-Front and Rear Bump Stop Drops
-Extended Braided Brake Lines
-Fabricated Rear Shock Mounts
-Caster Adjustment Shims

FEATURES

-Controlled On Road Ride Quality
-Unmatched Off Road Dampening
-Increased Cornering Capability
-Reducing and/or Eliminating Body Roll
-Increased Suspension Response
-Steering geometry is all within OEM specs
-No additional components are necessary
-Bolt-On Performance

ALTERED VEHICLE CHARACTERISTICS

-4.5" of Lift on the Front
-2.5" of Lift on the Rear
-Level Ride Height
-11" of Front Wheel Travel
-13" of Rear Wheel Travel

FITMENT GUIDE

Year Model Part Number

2011-2016 FORD F250 / F350 4x4 CS-F45-UC30-11
2008-2010 FORD F250 / F350 4x4 CS-F45-UC30-08
2005-2007 FORD F250 / F350 4x4 CS-F45-UC30-05

Installation Instructions
