Carli 2005-2022 Ford Super Duty Fabricated Radius Arms

CS-FARA-LVL-05

Free Ships in 1-5 Business Days

Regular price $1,565.00 Save $-1,565.00

-949 in stock

Description

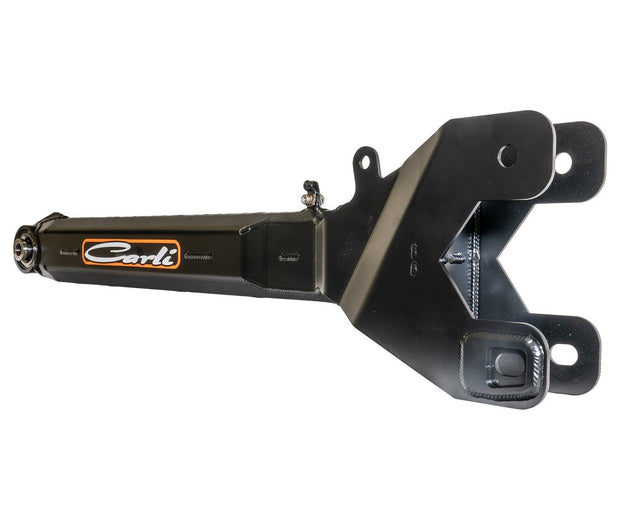

Delivering top-tier ride quality starts with top tier parts and our Fabricated Radius Arms for your 2005 Ford Super Duty should be the starting point for your Carli suspension. Conceived through CAD-assisted engineering, the heart of the Ford Radius Arms is an internal network of X-Braces and gussets that lock all facets into one cohesive monolith. Incorporated into the arms are a formed channel that relieves tire rub on the Radius Arm, making room for even the most advanced and aggressive off-road tires and deep-offset aftermarket wheels. Also featured are fully serviceable 3″ Spherical Bearings that eliminate the kinetic energy issues associated with vulcanized bushings. Your factory ABS harness is kept out of harm’s way thanks to an included clamp, while your shocks are saved from top-out damage by our Quad-Wrap Limit Straps. Easily bolted on, the Fabricated Radius Arms replace your factory arm while using factory mounts and brackets. 4.5″ Lifts will require the Carli Radius Arm Drops, sold separately.

The Carli arms correct 1°-4° of caster at the axle mount ensuring ANY Carli customer can achieve the illusive death-wobble preventing 4.5° of positive caster.

Fitment Notes:

These radius arms fit 2005-2022 Ford Super Duty trucks. They DO NOT fit 23+ trucks.



Install instructions

Customer Reviews

Based on 13 reviews
100%
(13)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mason Lanham
No Regrets

Backcountry, fully optioned on a 2022 F-250 6.7 Diesel

I can't thank the group at CJC enough. I researched this for months before deciding between Carli or ICON. I won't talk bad on ICON but the reason behind going with Carli is simple, attention to detail. Carli has options to change the factory sway bar, upper & lower stabilizers, radius arms, rear leaf springs, rear shackles, 2° shim. I mean these guys know their S*** when it comes to suspension. The fully optioned kit rides excellent, it does not make the bumps disappear but it does significantly reduce their presence. The team at CJC were more than happy to answer questions. When Cody says, "the change in your cup holder won't rattle." He isn't lying. The travel that this system offers is amazing and if you follow their suggested tire pressure settings the small bumps are hardly noticeable. I have absolutely no regrets and the Backcountry works great for how I use my truck, however I may upgrade to the Eventure in the future and can't wait to see how it performs. Thanks again CJC for your tireless quest in providing the ultimate ride!

M
Mohammed Ahmad MF Alkhater

Carli 2005-2022 Ford Super Duty Fabricated Radius Arms

A
Alex Peralta
What a difference

Looks great and feels so much better . Definitely do one side at a time a chalk both sides of front wheel while taking out old arm. I made the mistake and let the driver side roll a bit when I was doing first side and had to ratchet strap the axel to the cross member to get it back in place. Second side went smooth left the strap in place

J
John Russell

Carli 2005-2022 Ford Super Duty Fabricated Radius Arms

I
Ian Jones
Carli Pin Top 4.5"

Fast delivery and very helpful. CJC was very helpful in making sure I got the right system and parts. Very quick to respond to any questions I had. Couldn't be happier. Thanks to everyone at CJC. Keep up the good work!
