Carli Suspension 2014+ RAM 2500 Commuter 2.0 3.25" Lift System - Air Ride

CS-DC20-1419-D-AR

Regular price $3,700.00 Save $-3,700.00

-11 in stock

3.25″ Leveling Coil Springs: Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. These springs are shot-peened, pre-set and powder coated to ensure optimal performance and finish longevity!

Front, Adjustable Track Bar: When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application.

Front Bump Stop Drop Brackets: Ensures proper cycling of the front suspension withe the extended travel shocks provided.

Radius Arm Drop Brackets: Ensure perfect caster alignment (no need to max adjustments), correct geometry and spring pressures ensuring no bow in your coil spring.

Choice of Torsion Sway Bar or Drop Brackets for the Factory Sway Bar: When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, we offer two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.

Shock Package: Front and rear Fox 2.0” internal reservoir shocks, we’ve developed a Carli Signature shock tune maximizing the ride quality of the factory airbags delivering all around comfort and ride quality designed for on-road, in town, highway, and towing/hauling. The Fox 2.0s are fully rebuildable, built with hourglass bushings and boast extruded aluminum construction with a clear anodizing for corrosion resistance. Fox builds these shocks with their legendary red shock oil that flows well down to -55* F. This system was tuned with factory 20” wheels on factory tires.

Rear Track Bar Drop Bracket: Drops the factory rear track bar to be as flat as possible at the center of travel ensuring minimal “yaw” – side to side wag of rear suspension during the suspension cycle.

Rear Extended Sway Bar End Links: Accommodates the dropped geometry of the rear end.

Airbag Spacer: Ensures proper airbag position for lifted height.

Extended Rear Sensor Link: Full Metal (steel ends, aluminum body) Links to set the ride height.

Rear Bump Stop Drop Brackets: The bump stop drops work with the airbag spacer to ensure the bag is protected in its new position.

SKU: CS-DC20-1419-D-AR

Dodge Commuter System, Diesel, 4WD, 2014-18 & 2019+ 2500 BASE
AIR RIDE ONLY!

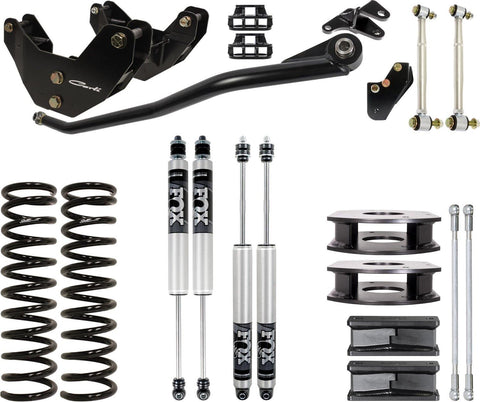

Base Kit Includes:

CS-DLRC-14-D Front Linear-Rate Coil Springs
CS-DC20SPKG-14-D-AR Carli Tuned Fox 2.0" IFP Shocks, Front and Rear, Air Ride Specific
CS-DATB-1419 Adjustable Track Bar with Stabilizer Bracket
CS-DRAD-14 Radius Arm Drops
CS-DFBD-1 Front Bump Drops
CS-DCM-20-HK Transmission Crossmember, Extended Hardware Kit
CS-DPRBDROP-14-R Rear Track Bar Drop
CS-DEL-R-14 Rear Sway Bar End Links
CS-DAR-14-BLOCK Airbag Spacer, 3" Lift Configuration
CS-DRBD-2.5 Rear Bump Stop Drop, 3" Lift Configuration
CS-DAR-14-LINK Extended Sensor Link, 3" Lift Configuration
