Carli Suspension Billet High Clearance Dodge Ram 2500/3500 Control Arms - CJC Off Road

Carli Suspension Billet High Clearance Dodge Ram 2500/3500 Control Arms

Name: Carli Suspension Billet High Clearance Dodge Ram 2500/3500 Control Arms
Brand: Carli Suspension
SKU: CS-DBCA-03
Price: 1360.0 USD
Availability: InStock

CS-DBCA-03

Free Ships in 2-3 Weeks

$1,360.00

Model Year

03-09 2500/3500 4x4

10-13 2500/3500 4x4

Add SPC Hardware

None

Upper frame side bolt/nut

Lower axle side cam bolts

Both (1 upper and 2 lower cam bolts)

Quantity

[{"id":39357527851106,"title":"03-09 2500\/3500 4x4 \/ None","option1":"03-09 2500\/3500 4x4","option2":"None","option3":null,"sku":"CS-DBCA-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Suspension Billet High Clearance Dodge Ram 2500\/3500 Control Arms - 03-09 2500\/3500 4x4 \/ None","public_title":"03-09 2500\/3500 4x4 \/ None","options":["03-09 2500\/3500 4x4","None"],"price":136000,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 2-3 Weeks","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39357527916642,"title":"03-09 2500\/3500 4x4 \/ Upper frame side bolt\/nut","option1":"03-09 2500\/3500 4x4","option2":"Upper frame side bolt\/nut","option3":null,"sku":"CS-DBCA-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Suspension Billet High Clearance Dodge Ram 2500\/3500 Control Arms - 03-09 2500\/3500 4x4 \/ Upper frame side bolt\/nut","public_title":"03-09 2500\/3500 4x4 \/ Upper frame side bolt\/nut","options":["03-09 2500\/3500 4x4","Upper frame side bolt\/nut"],"price":137400,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 2-3 Weeks","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39357527949410,"title":"03-09 2500\/3500 4x4 \/ Lower axle side cam bolts","option1":"03-09 2500\/3500 4x4","option2":"Lower axle side cam bolts","option3":null,"sku":"CS-DBCA-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Suspension Billet High Clearance Dodge Ram 2500\/3500 Control Arms - 03-09 2500\/3500 4x4 \/ Lower axle side cam bolts","public_title":"03-09 2500\/3500 4x4 \/ Lower axle side cam bolts","options":["03-09 2500\/3500 4x4","Lower axle side cam bolts"],"price":141000,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 2-3 Weeks","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39357527982178,"title":"03-09 2500\/3500 4x4 \/ Both (1 upper and 2 lower cam bolts)","option1":"03-09 2500\/3500 4x4","option2":"Both (1 upper and 2 lower cam bolts)","option3":null,"sku":"CS-DBCA-03","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Suspension Billet High Clearance Dodge Ram 2500\/3500 Control Arms - 03-09 2500\/3500 4x4 \/ Both (1 upper and 2 lower cam bolts)","public_title":"03-09 2500\/3500 4x4 \/ Both (1 upper and 2 lower cam bolts)","options":["03-09 2500\/3500 4x4","Both (1 upper and 2 lower cam bolts)"],"price":149600,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 2-3 Weeks","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39357528014946,"title":"10-13 2500\/3500 4x4 \/ None","option1":"10-13 2500\/3500 4x4","option2":"None","option3":null,"sku":"CS-DBCA-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Suspension Billet High Clearance Dodge Ram 2500\/3500 Control Arms - 10-13 2500\/3500 4x4 \/ None","public_title":"10-13 2500\/3500 4x4 \/ None","options":["10-13 2500\/3500 4x4","None"],"price":136000,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39357528047714,"title":"10-13 2500\/3500 4x4 \/ Upper frame side bolt\/nut","option1":"10-13 2500\/3500 4x4","option2":"Upper frame side bolt\/nut","option3":null,"sku":"CS-DBCA-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Suspension Billet High Clearance Dodge Ram 2500\/3500 Control Arms - 10-13 2500\/3500 4x4 \/ Upper frame side bolt\/nut","public_title":"10-13 2500\/3500 4x4 \/ Upper frame side bolt\/nut","options":["10-13 2500\/3500 4x4","Upper frame side bolt\/nut"],"price":137400,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39357528080482,"title":"10-13 2500\/3500 4x4 \/ Lower axle side cam bolts","option1":"10-13 2500\/3500 4x4","option2":"Lower axle side cam bolts","option3":null,"sku":"CS-DBCA-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Suspension Billet High Clearance Dodge Ram 2500\/3500 Control Arms - 10-13 2500\/3500 4x4 \/ Lower axle side cam bolts","public_title":"10-13 2500\/3500 4x4 \/ Lower axle side cam bolts","options":["10-13 2500\/3500 4x4","Lower axle side cam bolts"],"price":141000,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":39357528113250,"title":"10-13 2500\/3500 4x4 \/ Both (1 upper and 2 lower cam bolts)","option1":"10-13 2500\/3500 4x4","option2":"Both (1 upper and 2 lower cam bolts)","option3":null,"sku":"CS-DBCA-10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Carli Suspension Billet High Clearance Dodge Ram 2500\/3500 Control Arms - 10-13 2500\/3500 4x4 \/ Both (1 upper and 2 lower cam bolts)","public_title":"10-13 2500\/3500 4x4 \/ Both (1 upper and 2 lower cam bolts)","options":["10-13 2500\/3500 4x4","Both (1 upper and 2 lower cam bolts)"],"price":149600,"weight":17237,"compare_at_price":null,"inventory_management":"shopify","barcode":"Free Ships in 1-5 Business Days","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

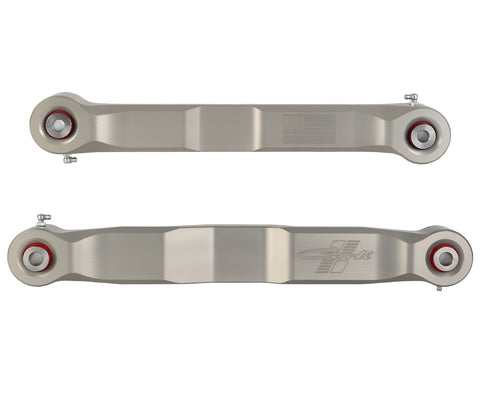

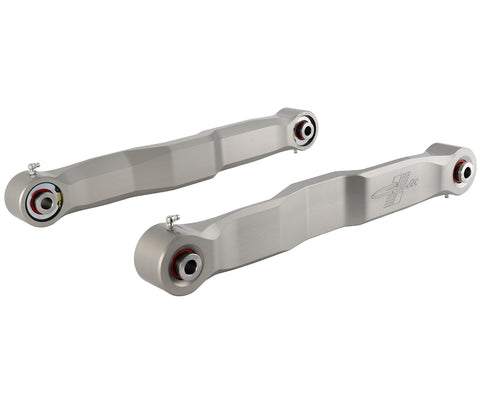

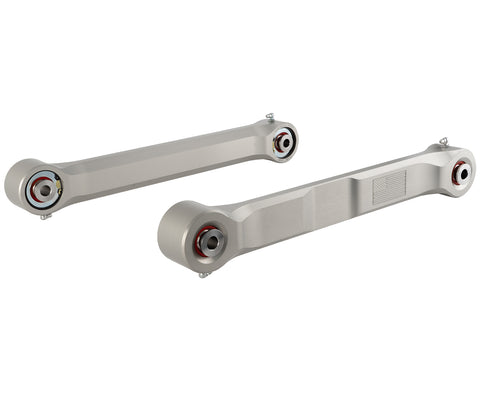

Designed from the ground up for maximum tire clearance and unmatched strength, Carli's Fabricated High Clearance Control Arms are everything one needs for enhanced ride and ultimate performance. Carli's control arms are .5" longer than OEM for optimum tire fitment in the wheel well with 3" coils, while the recessed pockets on both upper and lower arms regain needed turning radius when running wide offroad tires.

In the latest revision, Carli moved from a fabricated steel design to a completely billet arm machined from a solid piece of 6061 billet aluminum.

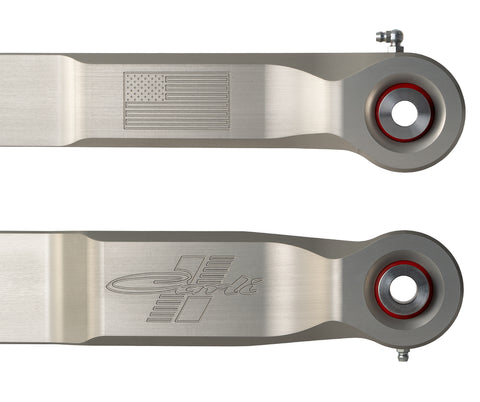

At either end is a machined in house 17-4 stainless ball center spherical joint that is fully serviceable and rebuildable. Having these spherical joints on each end eliminates the kinetic chatter caused by rubber bushing style set ups, in return creates a smoother ride and massive improvements in articulation over the factory joints.

SKU: CS-DBCA-03 / CS-DBCA-10

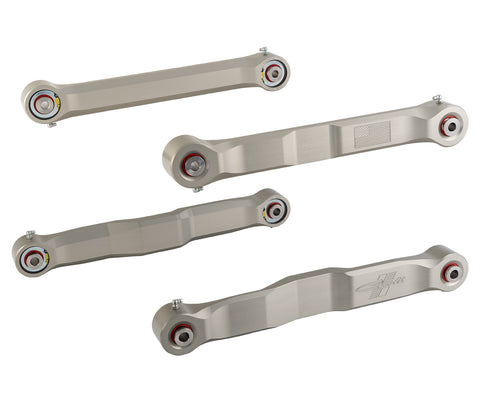

- Includes 4 Arms Pictured, 2 Upper, 2 Lower
- Re-centers front axle on 3" Suspension Systems
- 6061 Billet Construction
- Serviceable, Vibration Damping Joints with Stainless Ball Centers
- 37" Tire Fitment (9" Wide Wheel, 5.75" BS)

better bling than homemade

I have an 01 3500 4x4 and a 07.5 2500 4x4. I made my own extended control arms for my 2001 and lots of work and retapping the tube adapter what a pain. I got these Carli high clearance arms as I'm not sure if I'm going with 35's or 37's yet. These are guy jewelry pieces; you almost hate putting them on the dirty side of the truck. They are really quality parts that should last my lifetime on the truck. As to the 35/37 option, if you look at the galleries, Rams with 35's look like they missing something, the 37 trucks just fill out the wheel opening better. Can't wait to get the rest of the parts and finish the suspension upgrade.

Awesome

These are some heavy duty control arms compared to stock and some other lift kits. The engraved design is pretty cool and you really can fit 37s using these. Ride quality is really good. Haven't felt the teuck ride this good in a while.

Very Solid Built And CNC Labelled

Very easy to install, Clearly Labeled to know where they go. Just be sure to clearance any bumps or protrusions prior to installing so the joints can slide in with ease. Also bring your cutter wheel or Saw Zaw and go ahead and order both lower cam bolts. Mine is a 2012 and I still needed to cut after 4 days of soaking.

GREAT SERVICE AS ALWAYS

Carli back country kit.

Overall really good set up, truck rides nice and straight down the highway even before alignment. It was a good 10hour install on concrete, would recommend a lot of WD-40 on all bolts before cracking them loose, especially high mileage trucks. Also passenger upper control arm top bolt is impossible to get out unless you take the exhaust off. Also if you're running stock away bar with end links, be ready to buy replacement Bushings for the end links.

10-10 would recommend.
