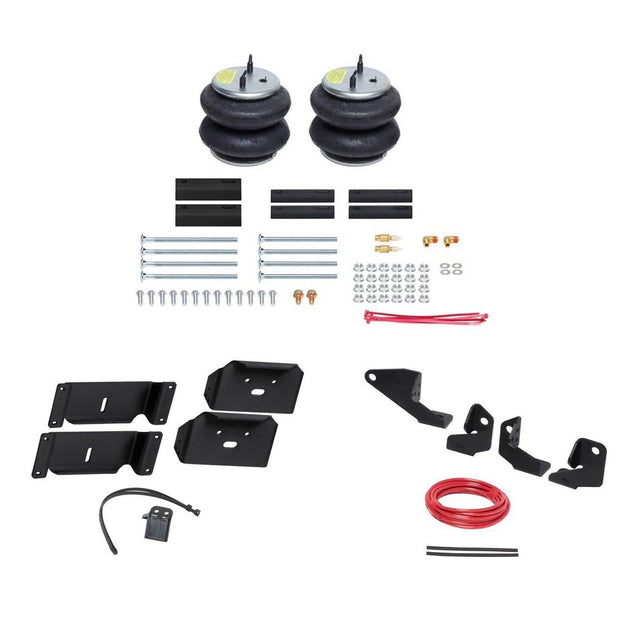

Looking to supplement the load capacity of your truck? This special airbag system will work on a Carli add a pack or full replacement leaf pack equipped 2017+ Ford F-250/350 to give you the best of both worlds. If you are running these bags with a Carli rear leaf pack, Daystar cradles are required to maintain droop travel and articulation. Without these cradles, the travel of the Carli leaf pack will damage or tear the stock bags. These cradles also allow you to retain full droop travel and articulation even with airbags, so you can haul like a stock truck while enjoying the added ride quality and off road capability of a modified one.
Please note that any 4WD Super Duty airbag system that mounts off the factory bocks will not be compatible with Carli leaf packs so if you have Carli leaf springs, you need this kit!
Firestone air spring systems are designed to maximize safe load carrying capacity, stability, and overall ride quality. They are designed and assembled in the USA. Ride Rite air springs use the same Firestone technology used on many heavy duty trucks, trailers, and buses on the road today. Ride-Rite air helper springs utilize a pair of convoluted air springs, which can be adjusted for changing loads. These air springs are capable of 3,200 to 5,000 lbs. of load leveling capacity. Please remember that air springs do not increase the load carrying capacity of your vehicle beyond factory specs.
These airbags have a 5,000 pound capacity per bag. This airbag system will allow full towing and payload capacity even with a Carli full replacement leaf pack set up.
Need a compressor? Click here.
Great product. Fit my carli leaf springs well.
I notched a star as the cradles did not align well with the airbags and although the hole was spotted, I had to drill/slot further so that the bags and cradle would properly align. Not a major issue, but would have been helpful to know before bolting them in.
Including this review and comment so that future installers will be aware.
Other than that, flawless communication and lightning fast delivery from CJC. Always glad to be a customer.
My 2022 F250 Platinum is equipped with Carli's 3.5" pintop, carli leaf, shackles, front torsion bar. The Bag design of this system with cradle system is different but give you full functionality of your upgraded suspension. Hated the idea of my suspension travel being limited due to other air bag setups. Not even sure why anyone would want that. This design is meant for comfort when not loaded and ready to work when loaded down. Easy setup, can't wait to put it to the test when pulling my skid steer and equipment.
