Built specifically for the Ram HD truck platform, Foundation 395 HD 18x9 wheels are designed to offer high capacity and customizable wheel options created from the ground up for heavy duty full size trucks. No other wheel on the market ticks all the boxes at the same price point! Please note that center caps are included with all wheels at no extra charge.
The 395 HD uses flow formed construction that strengthens the barrel of the wheel to reduce weight and increase durability without the cost of a forged wheel. The 8 spoke design and flow formed barrel give the Foundation 395 HD wheel a massive SAE J2530 load rating of 4,500lbs per wheel with a 37" tire. Most other wheels are rated with a stock tire, and we are not aware of any other off road wheel that has gone through the SAE J2530 rating process, which you can read more about here.
All Foundation wheels have bead retention built in, so you don't have to worry about losing a tire at low pressures off road, or deal with the hassles of a true bead lock on the street.
Careful thought was given to the wheel design to allow for ample fitment of sockets for easy wheel install/removal, easy cleaning, and a design that's as timeless as it is strong.

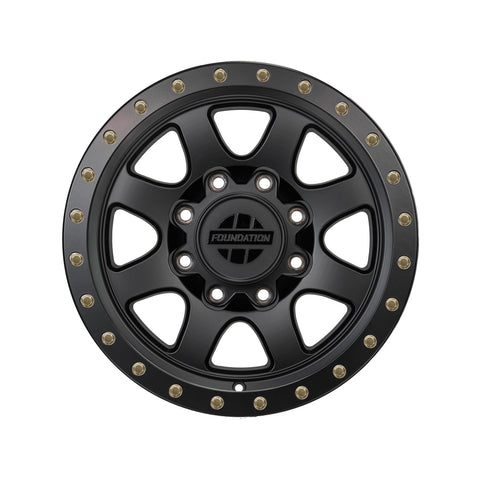

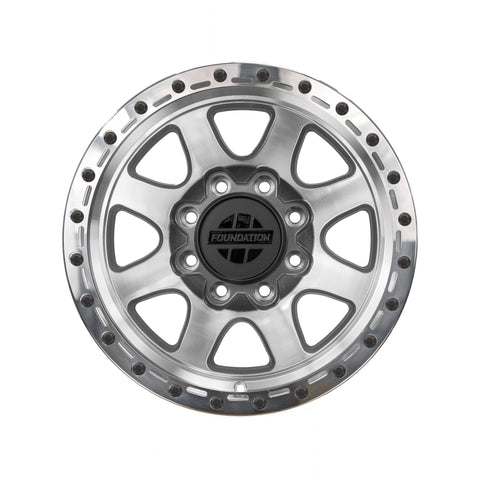

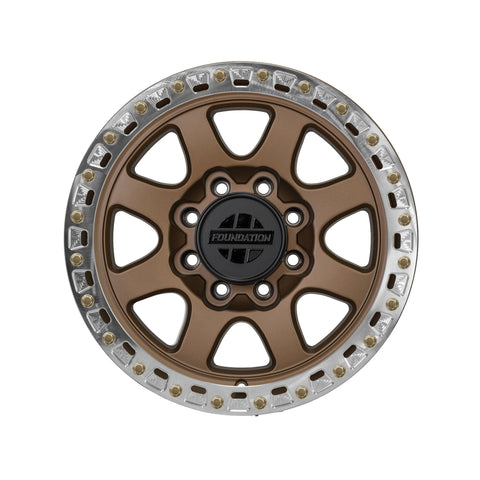

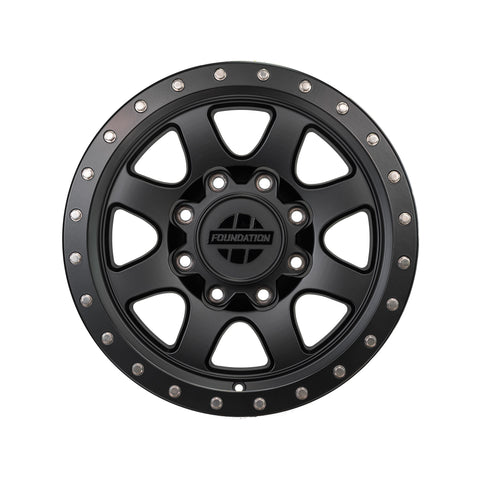

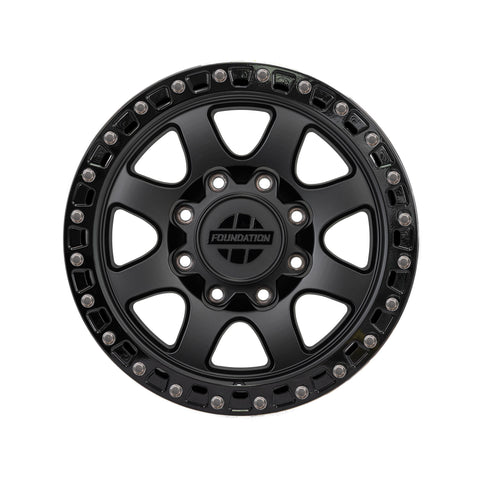

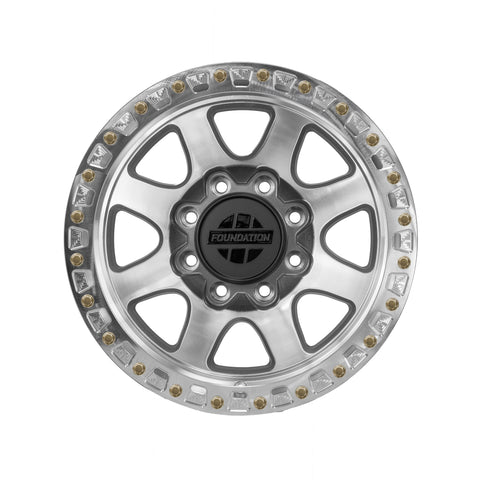

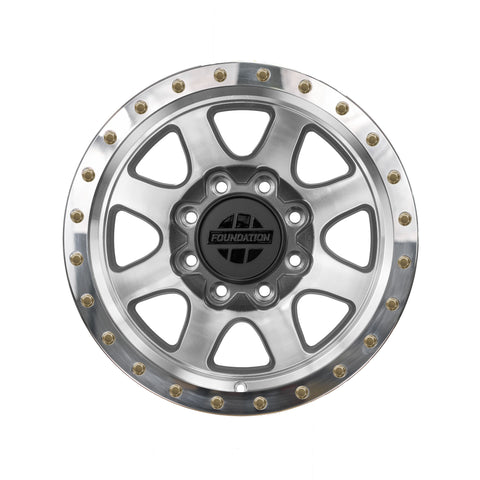

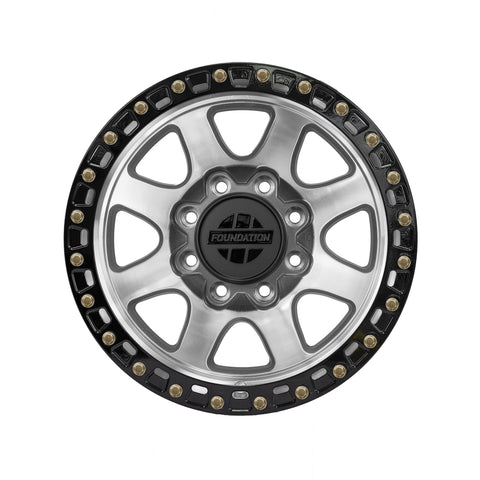

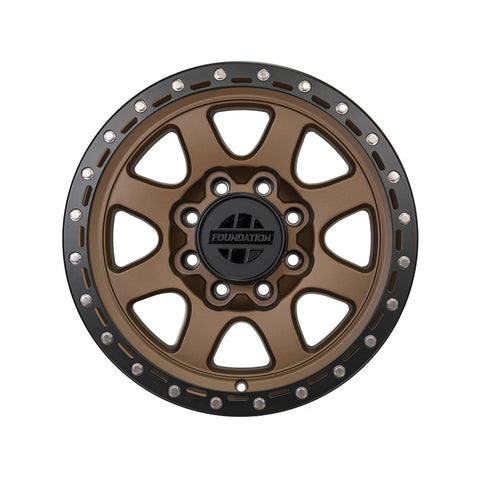

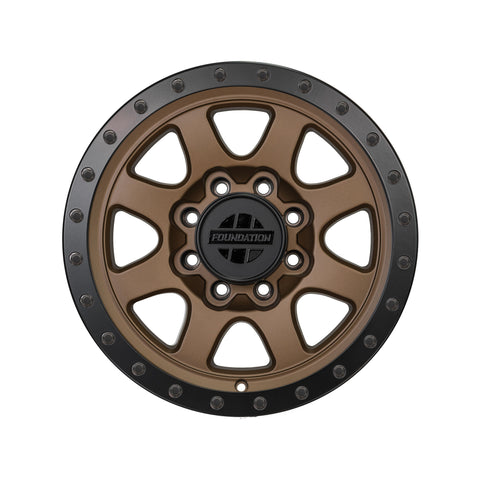

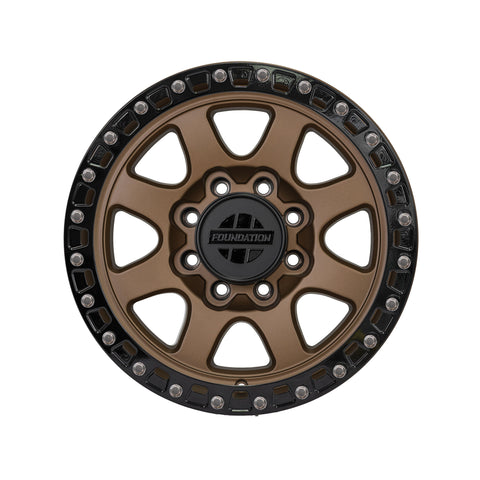

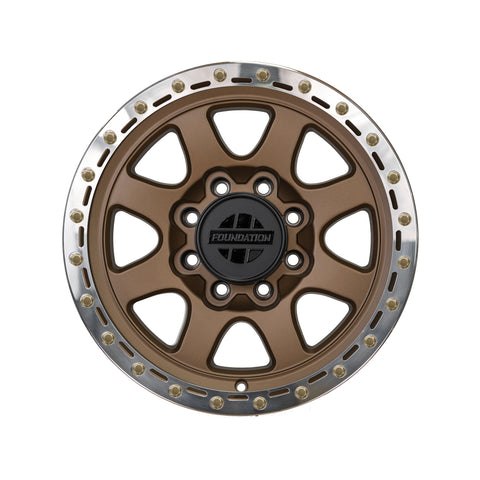

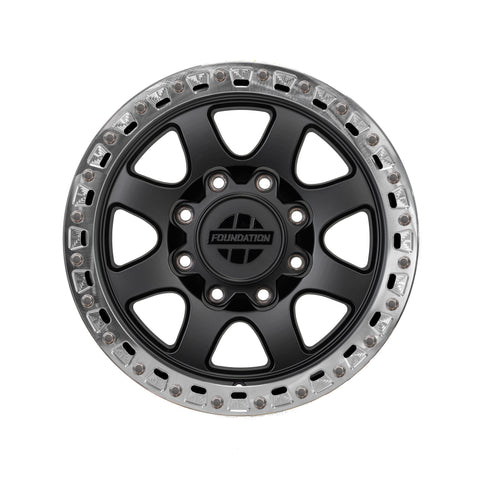

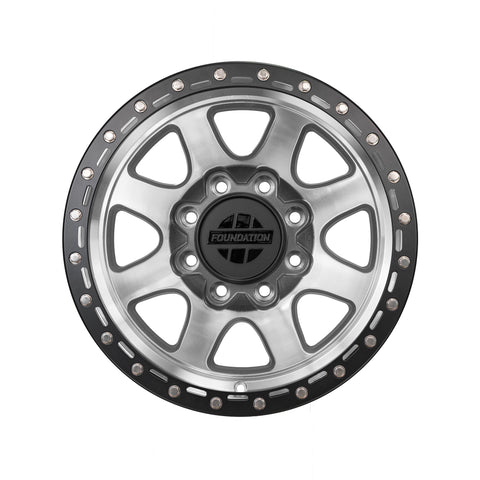

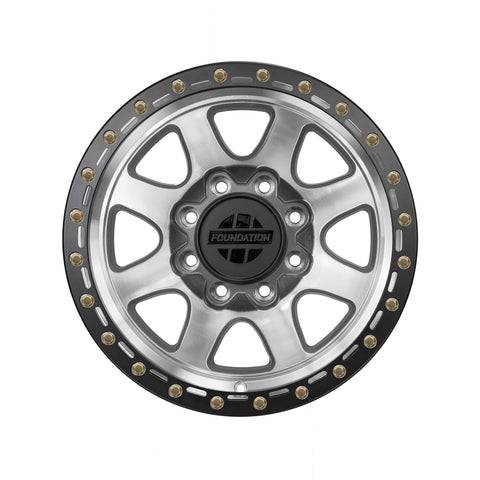

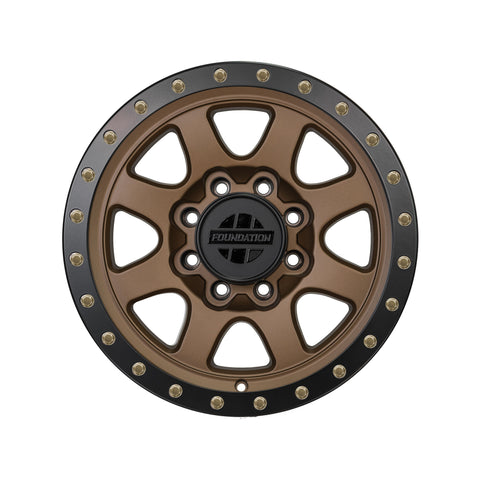

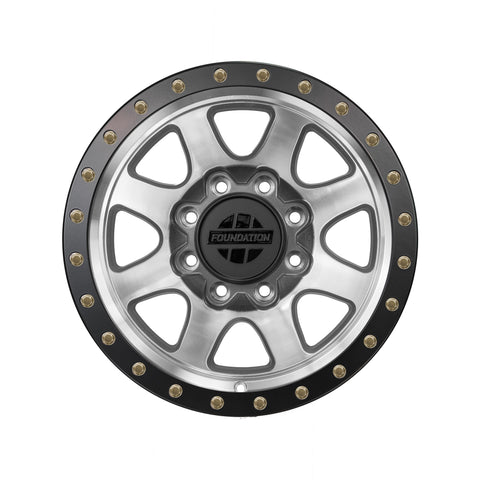

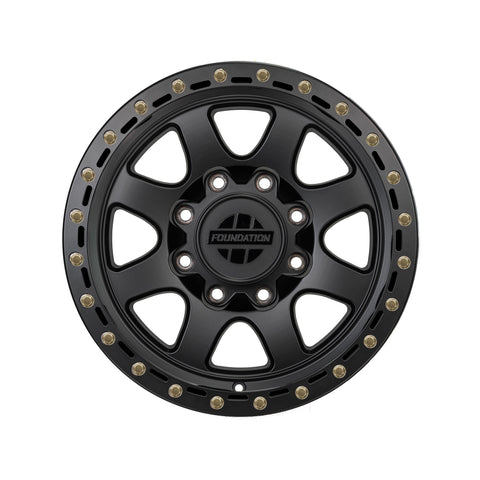

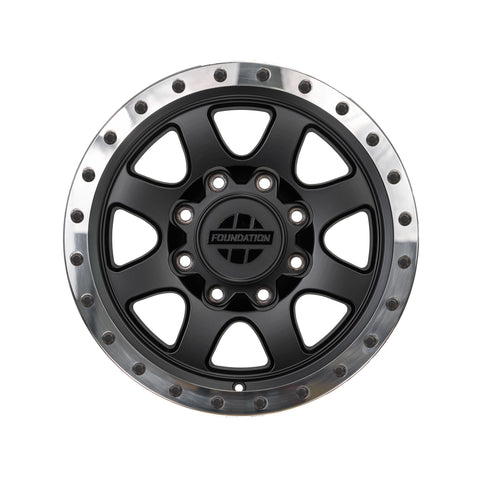

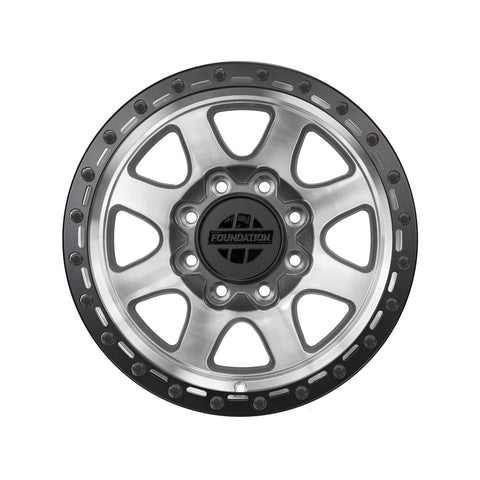

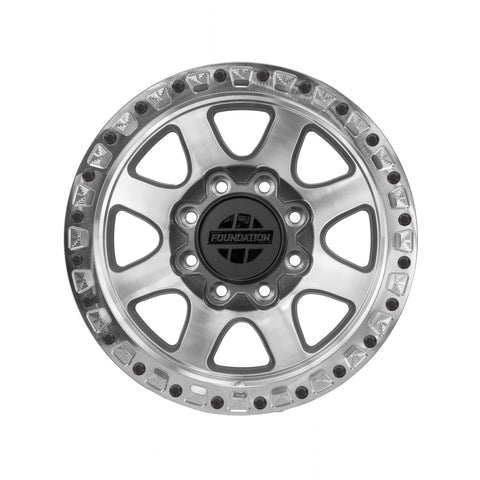

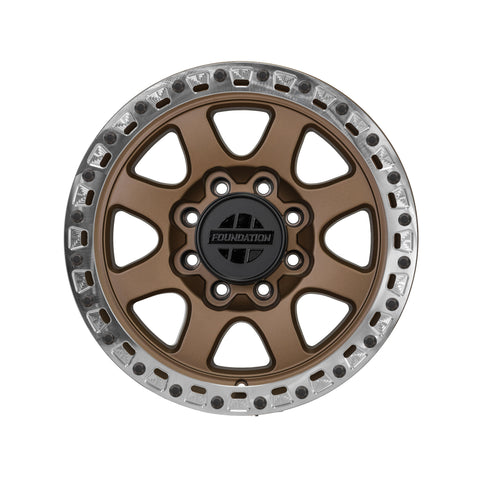

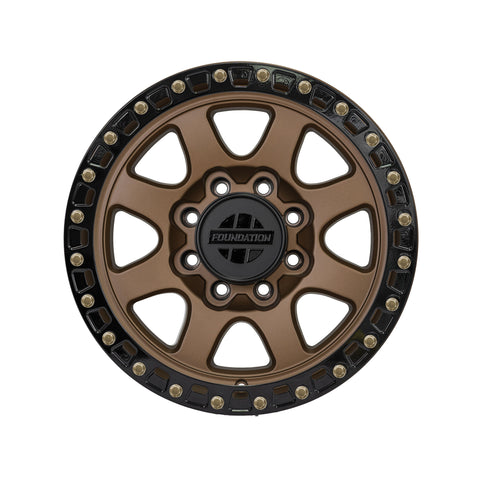

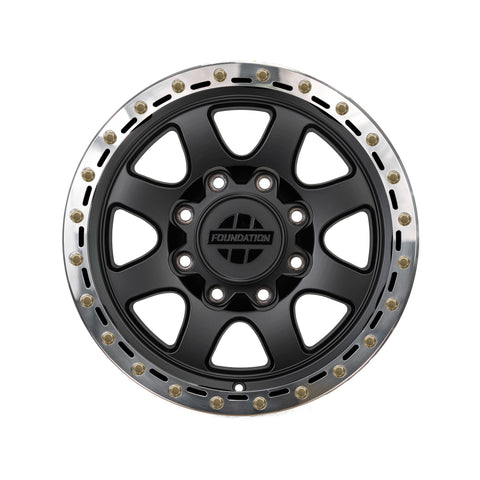

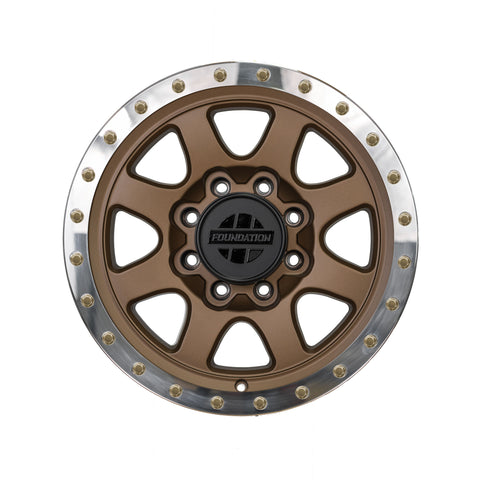

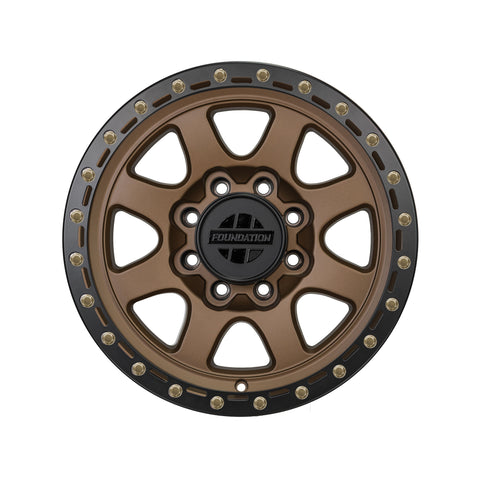

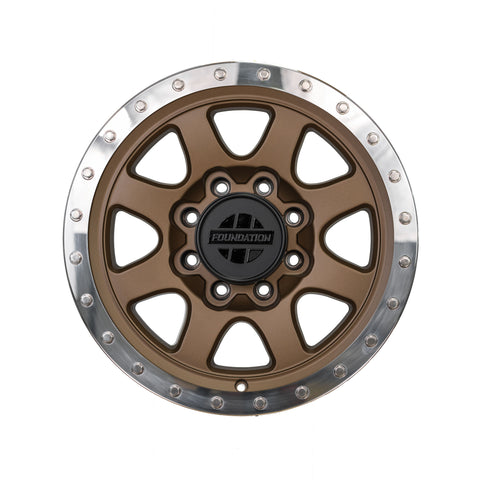

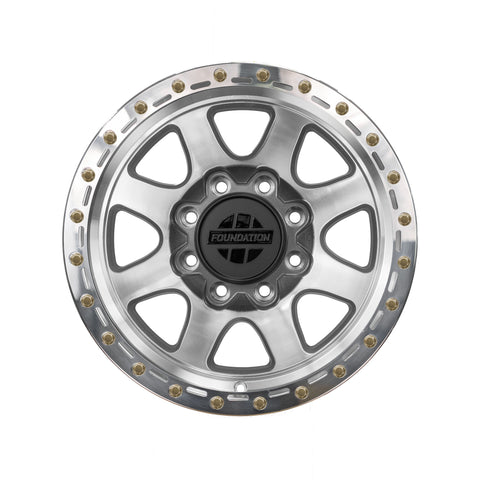

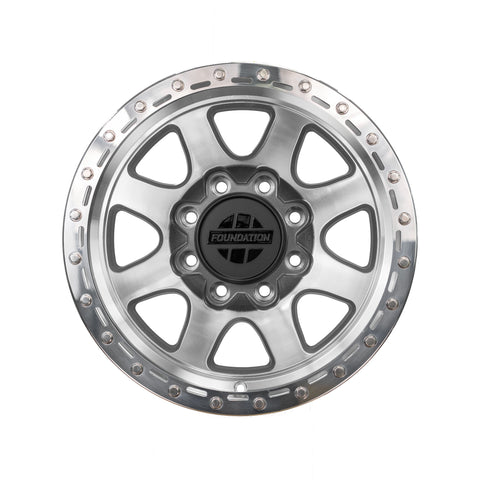

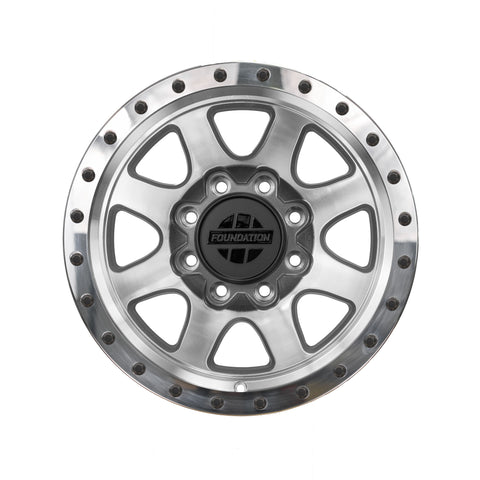

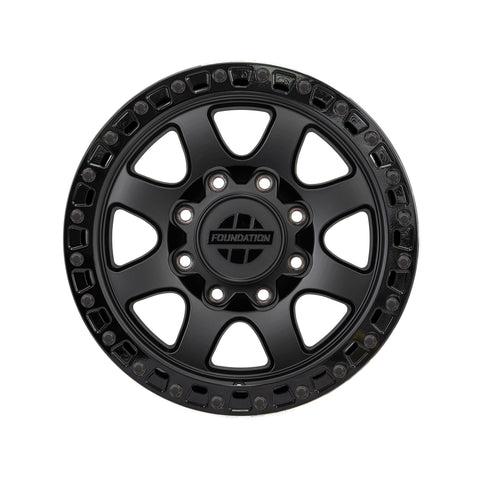

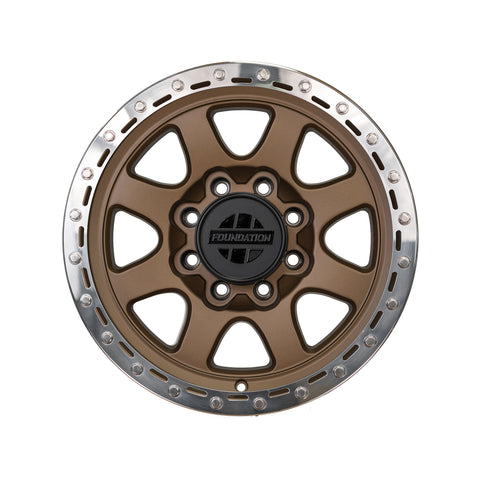

The Foundation 395 HD can be configured with multiple ring and ring color options. Choose from the smooth ring design for a clean look, or the drain hole style rings to prevent water build up with a more aggressive visual appearance. The rings are easily removable for custom finish and protect the wheels from rock rash. Should a ring get damaged, simply unbolt it, replace it, and keep wheeling! These are simulated bead lock wheels, meaning there's no hassle with leaking or tire mounting.
The center caps for these wheels fit all Ram trucks, or you can run the wheel without caps. If you have free spin hubs, we also offer these open front caps.
These wheels are a passion project to bring the best of the best to market at a reasonable price. Our goal was to tailor build a wheel specific to HD trucks, while also allowing unique, personalized touches depending on your build. Welcome to the Foundation family.
Fitment Specs:
18x9 Sizing
0 offset / 5" Backspace
+19 Offset / 5.75" Backspace
8x6.5 Bolt Pattern
Weight: About 30lbs depending on ring
These wheels are lug centric, but since the center caps snap on from the outside of the wheel, you can run center caps and hub centric rings if desired, which isn't possible with the push through caps on most other wheels. Hub centric rings are NOT required, as these wheels were designed and load tested in lug centric configuration.
Customer Reviews
there are a ton of wheel choices out thier, and it seems like the machined finish is really hot on the market, well this company took that one set further and polished there's and put a clear coat on so you don't have to spend Sundays keeping the wheels shinning, overall the ship ment was quick the -19 hit the mark, they do not stick out ,so no rock chips in the paint for me , that's a plus. I know there are some center cap changes in the works and can't wait to see what they come back with , these ready made my truck. it came factory with black wheels and they had to go , foundation wheel was definitely a great choice

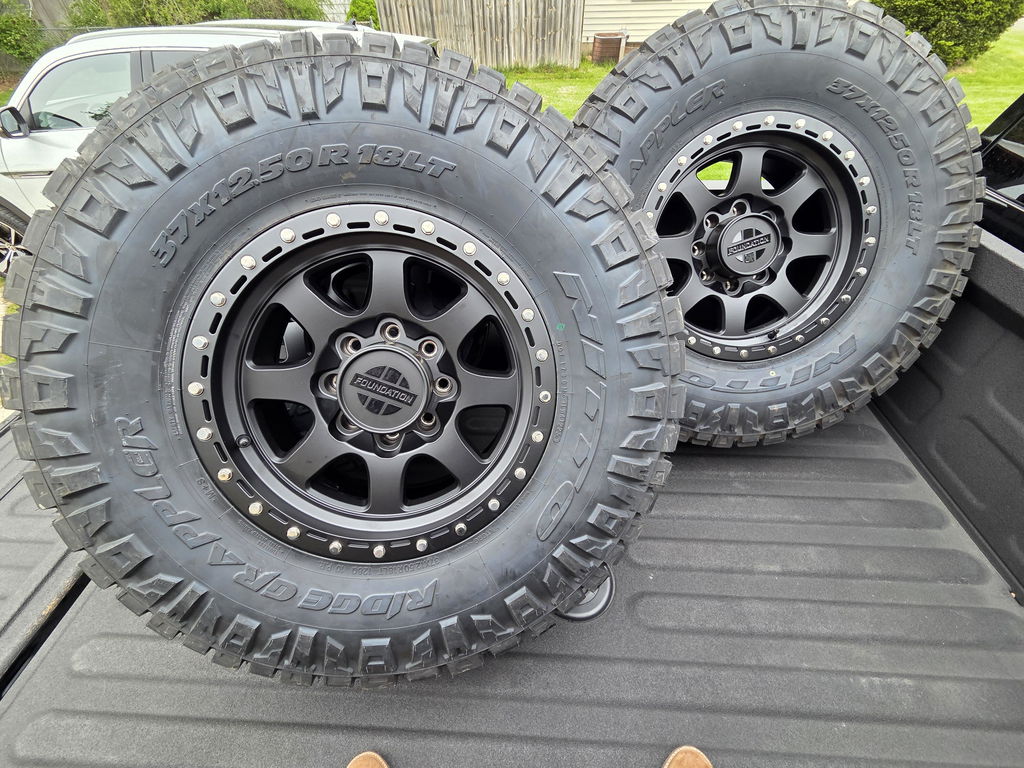

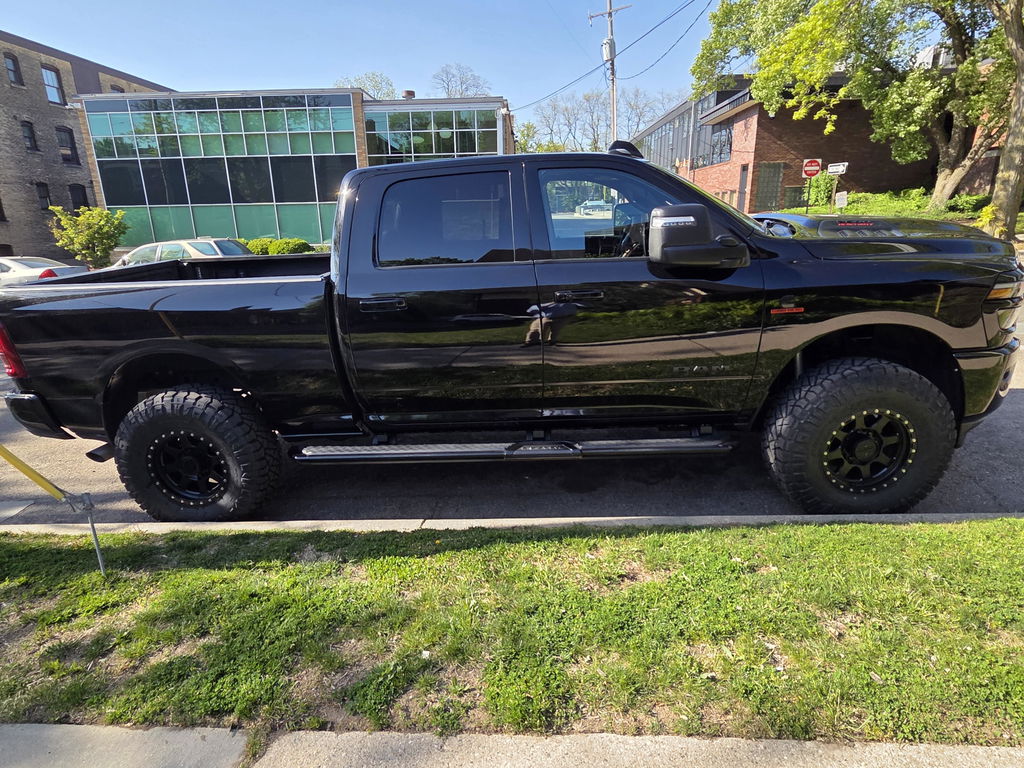

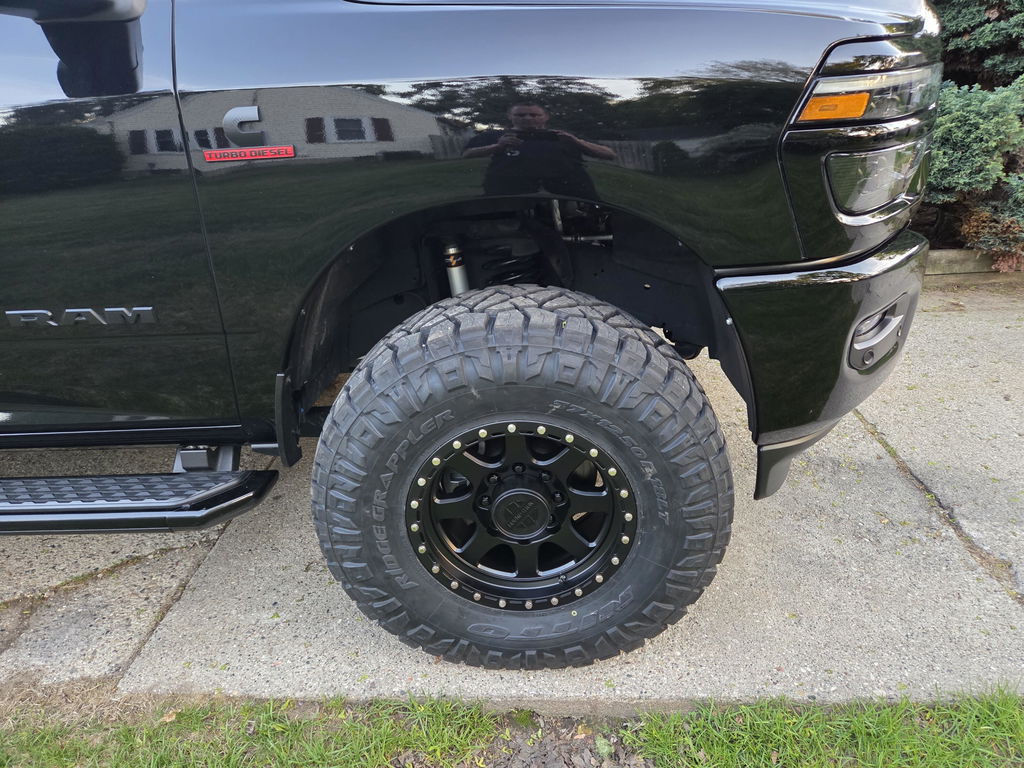

Ordered foundation wheels for my 2025 ram 2500 with 19” offset which worked great to fit 37” tires without a lift. I am very happy with the results and would recommend these wheels as it looks great and rides better than the stock 20” wheels. Ordering through CJC was great and wheels arrived quickly.

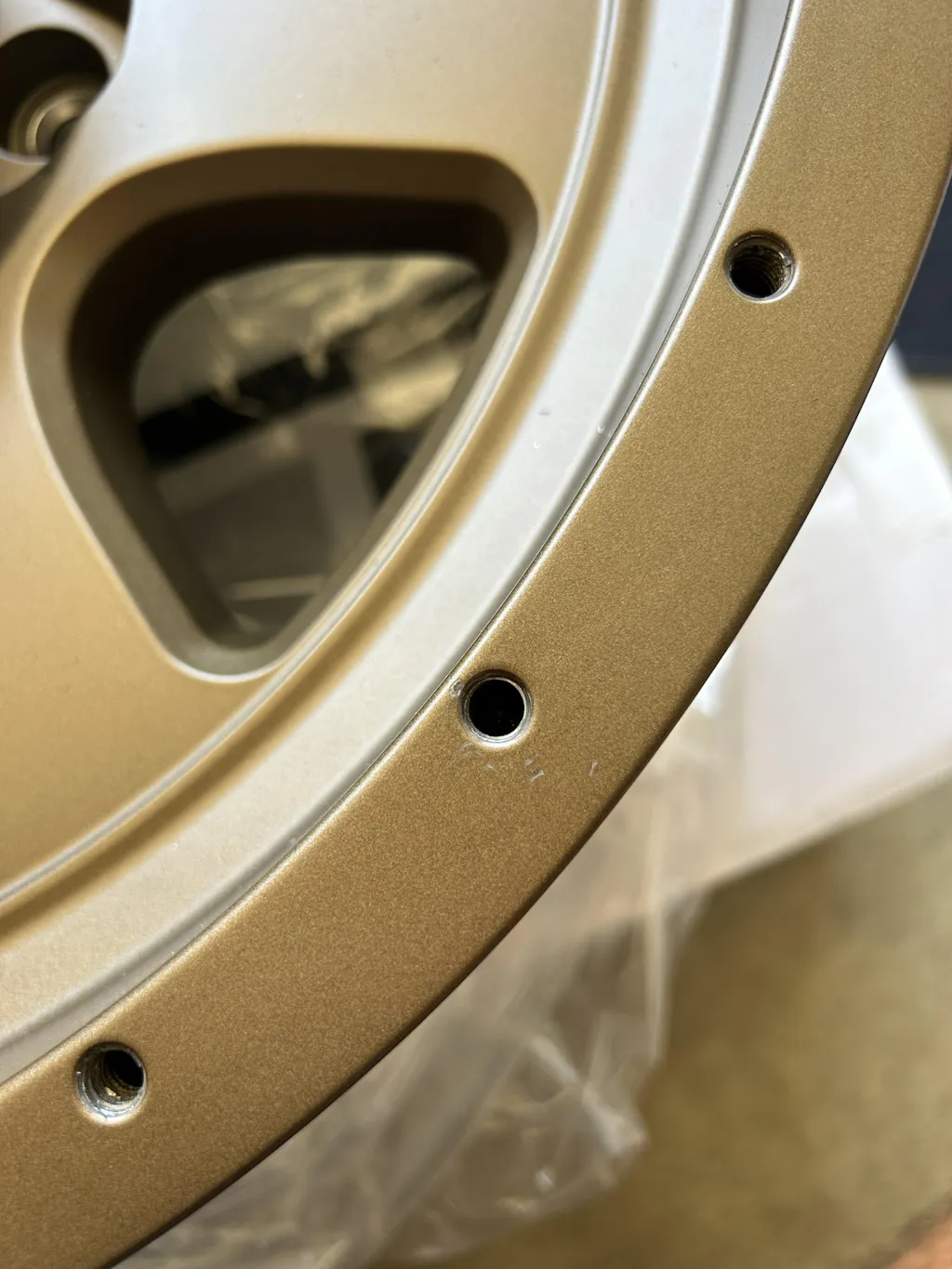

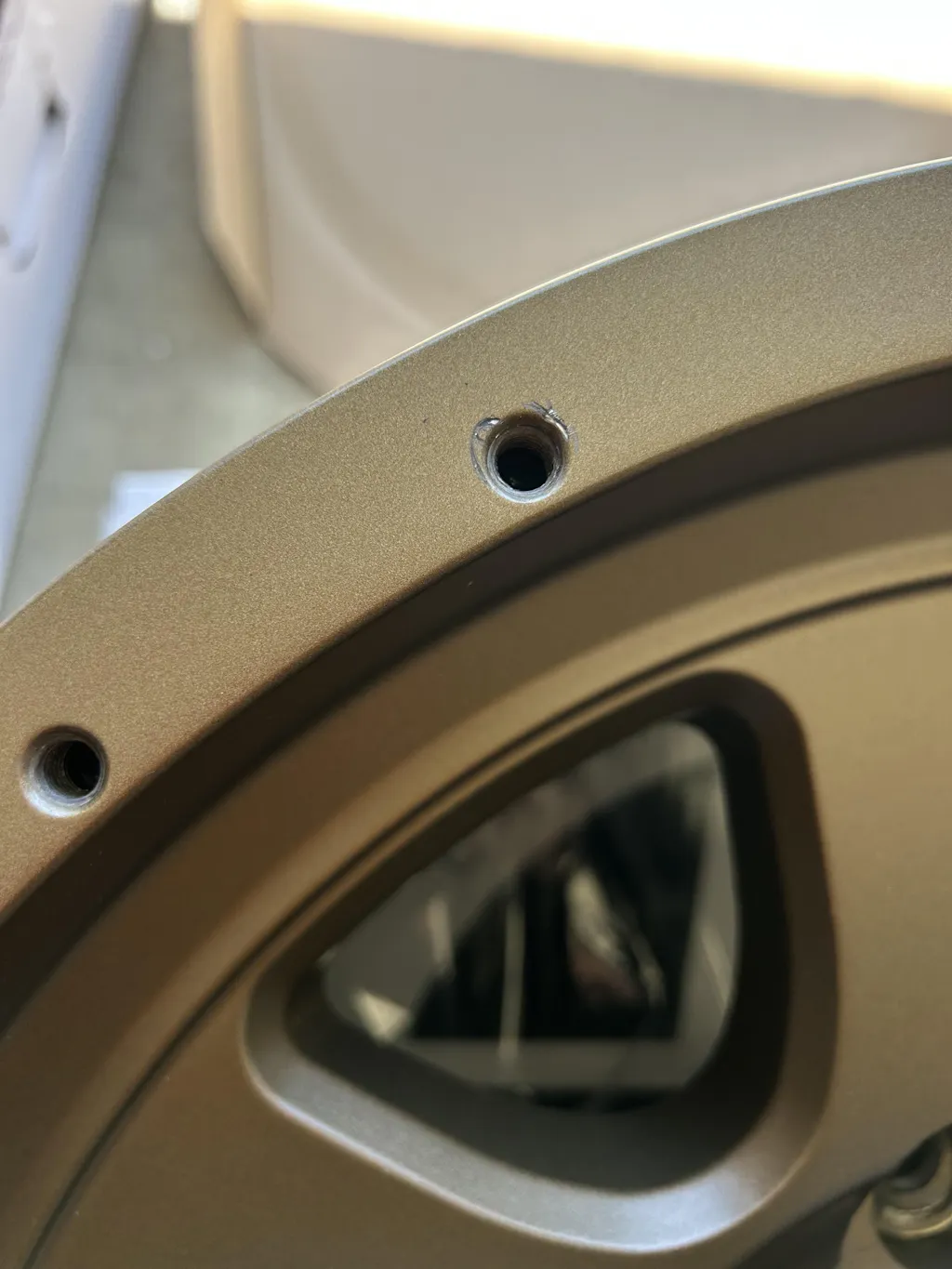

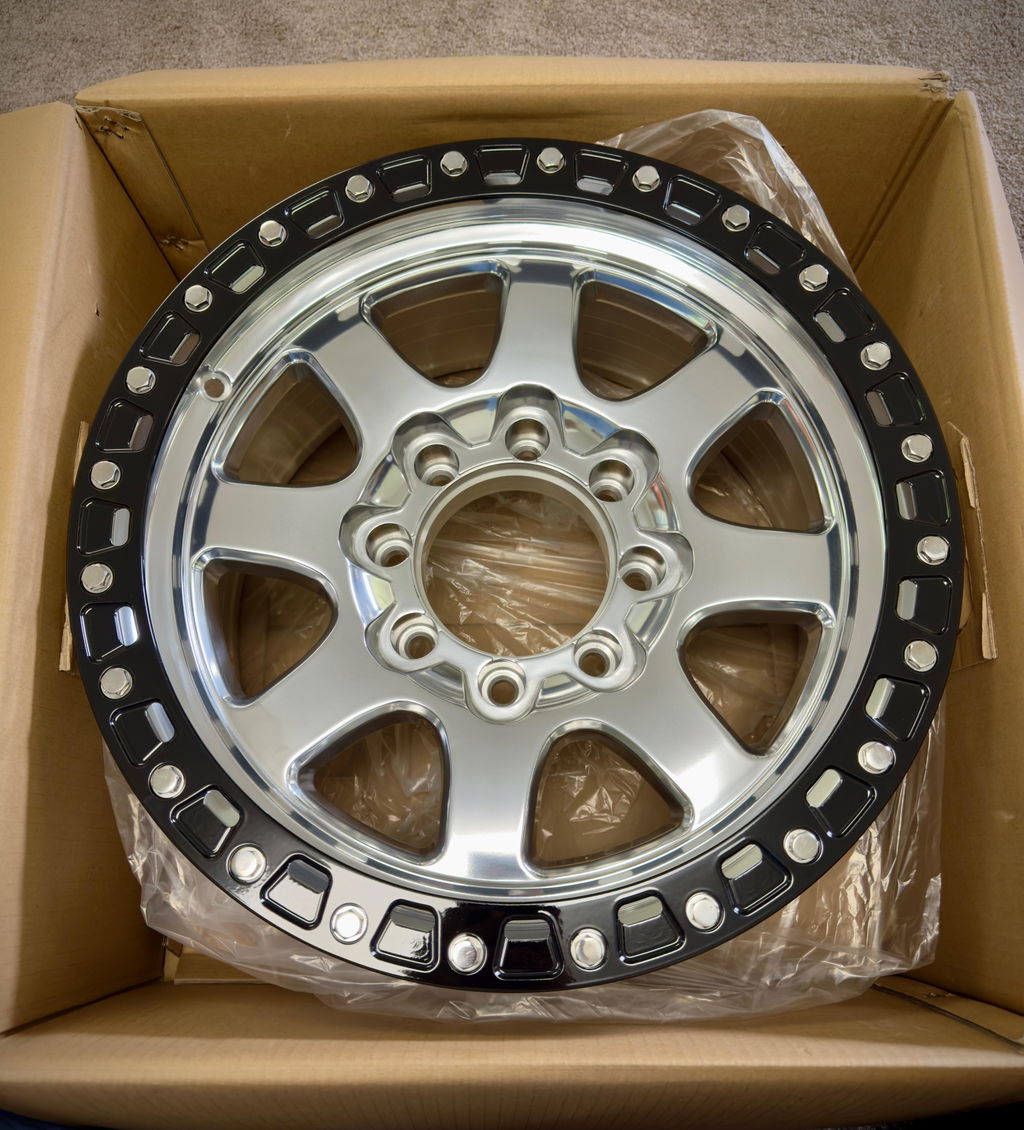

Online images of the polished 395s do not do it justice. It's a beautiful finish and goes perfectly with the clean design of the wheel. Everything came packed securely. The OMF gloss black rings are a work of art and line up perfectly on the wheel - it's an upgrade I am very happy I went with. One useful tip: take a bolt and run it through each of the threaded holes along each wheel before installing the rings. It reduces the chances of a bolt not going in straight. CJC's communication is always top notch, they are very helpful and super responsive to whatever questions I email them with.

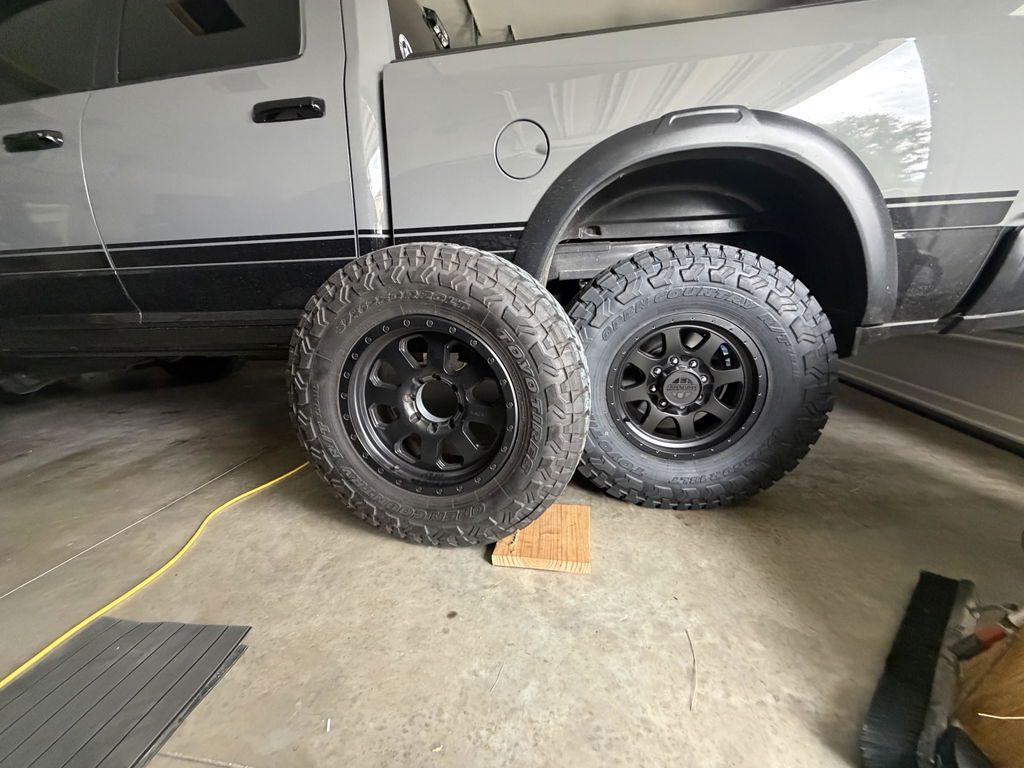

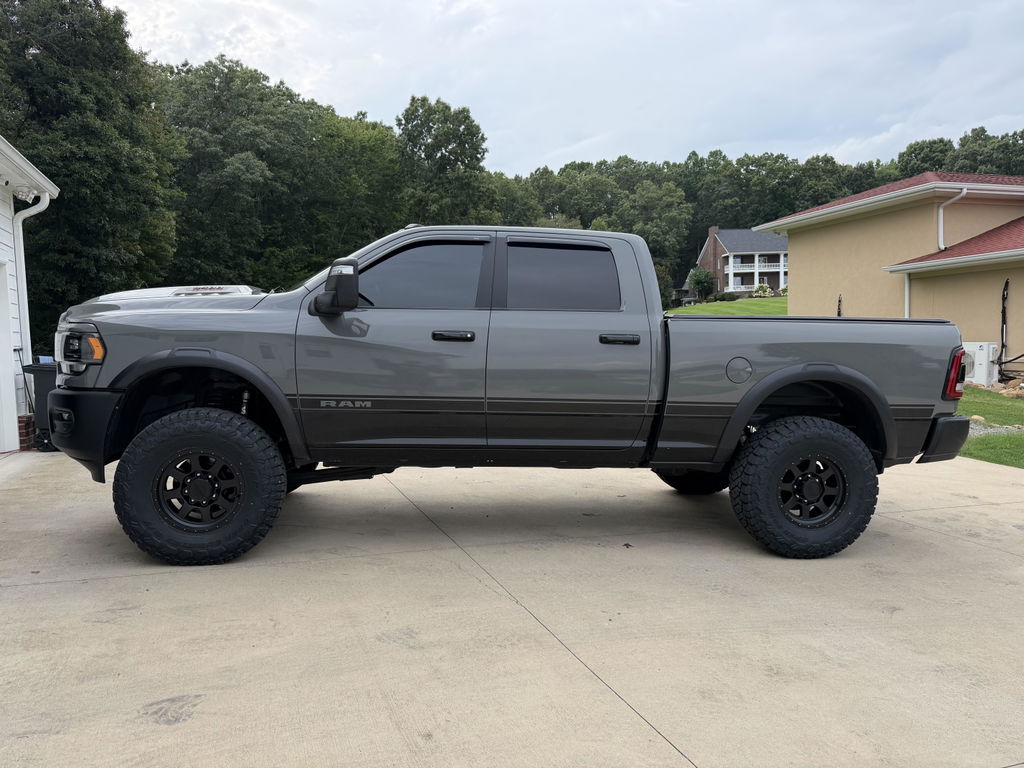

Absolutely beautiful wheel. I tried to make a switch from 37x12.5x20 with Toyo rt trails to and 18 wheel, same tire. Unfortunately the setup was shorter so I went back to my 20’s on Raceline wheels until someone comes out with some good 38” tire options (hopefully the rt pros) At that time I’ll def go back to 18’s for better look and ride quality. The guys at CJC were super helpful and easy to work with! Highly recommend for all your off road needs. They build some stunning Ram trucks!

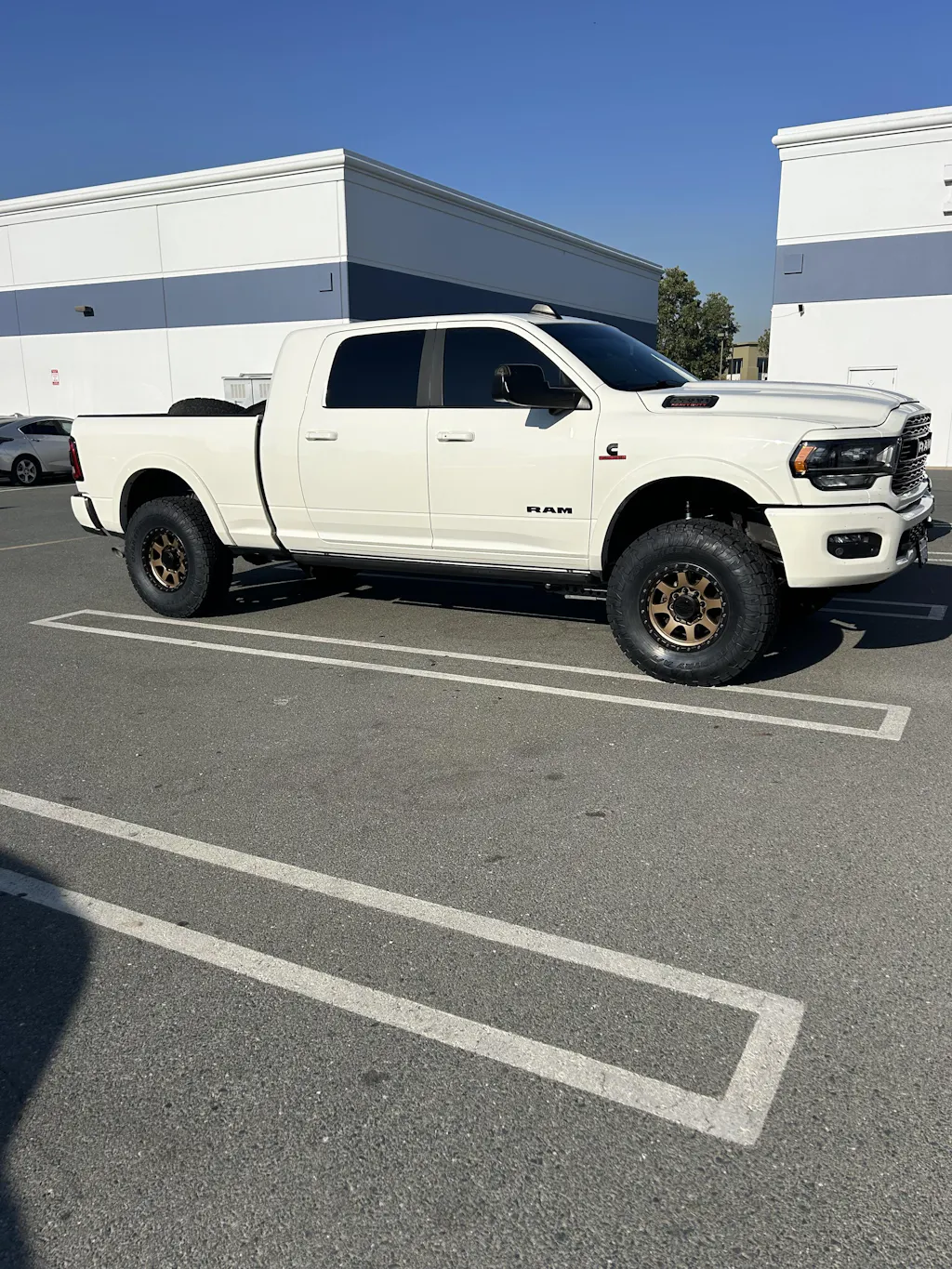

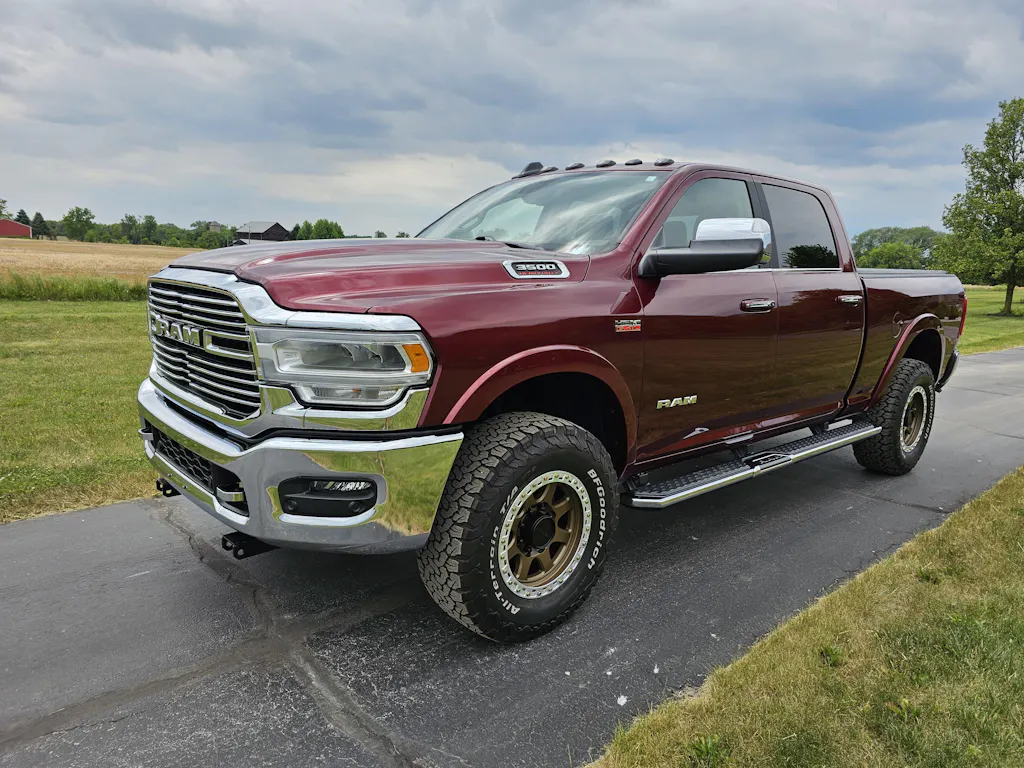

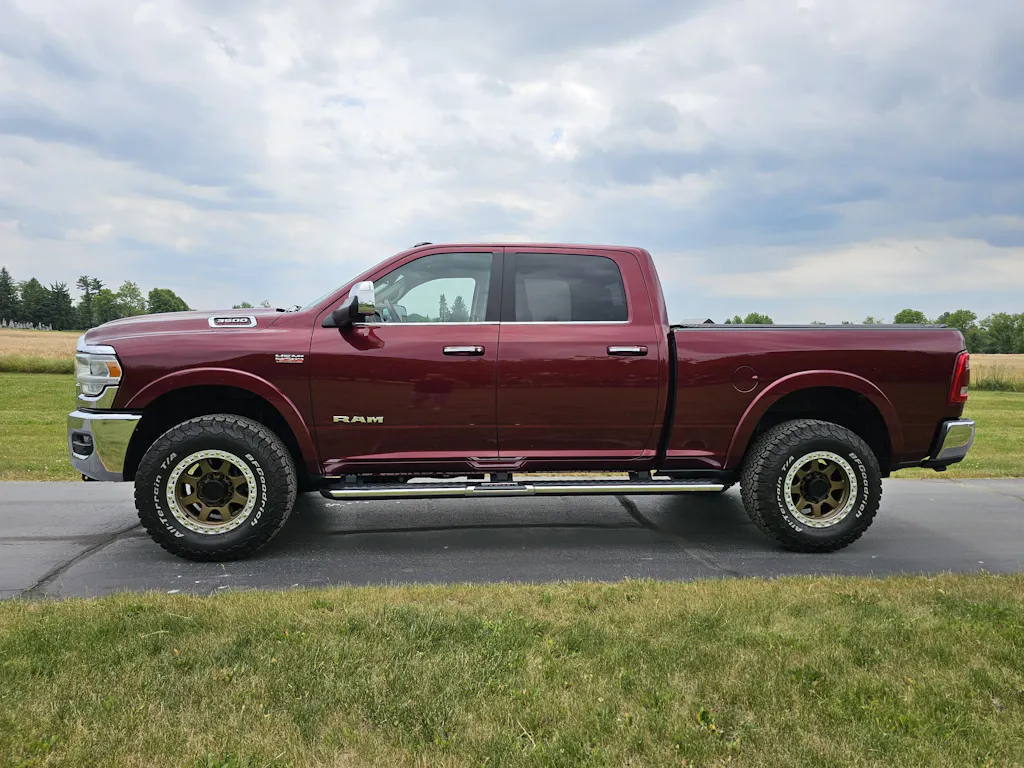

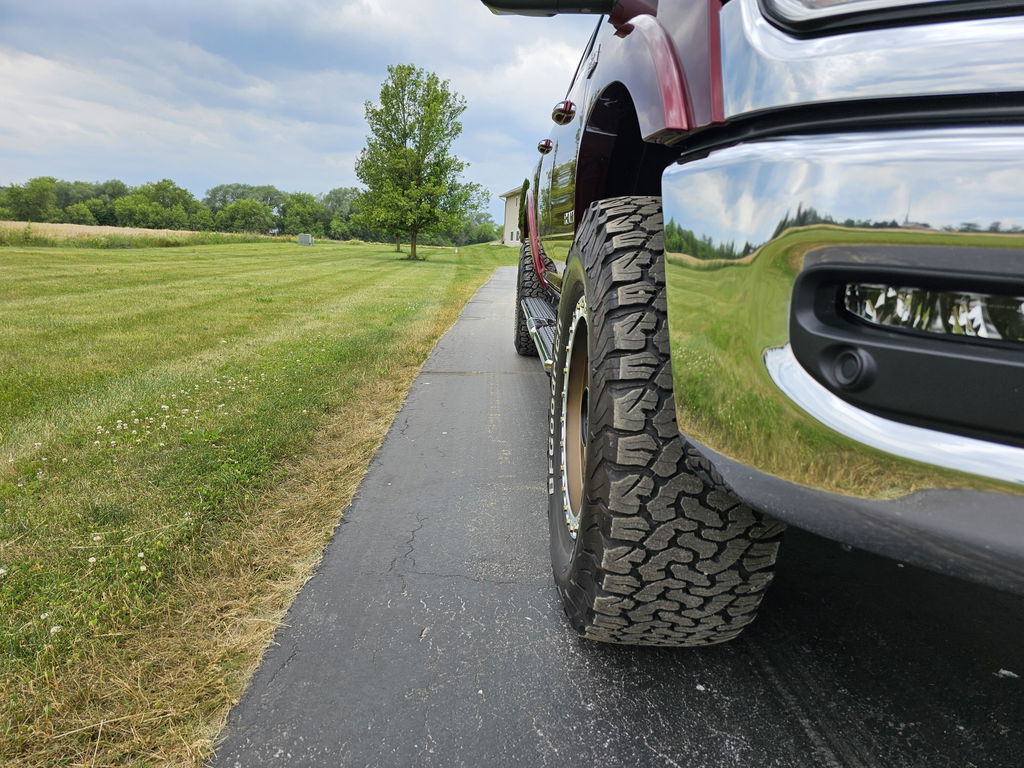

Went with the +19 offset, bronze wheel with OMF machined clear rings with gold zinc hardware. Truck is a stock height 2022 3500 6.4L. Tires are 35x12.5x18 All Terrin BFG. Zero clearance issues. Lock to lock no tire rub.
