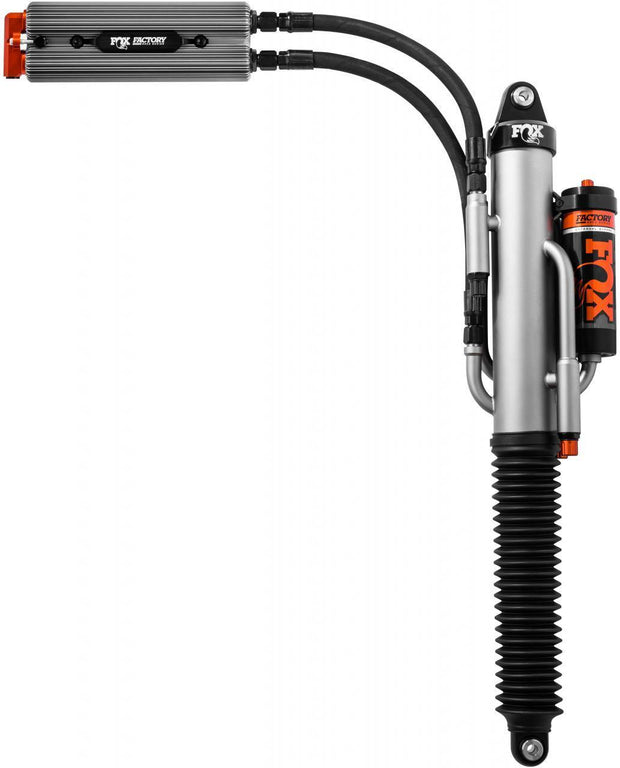

FOX 4WD 2017-2018 Raptor (0-1") 3.0 Factory Series Bypass Reservoir - QAB Adjuster - Rear

883-09-141

Regular price $3,399.95 Save $-3,399.95

0 in stock
Take your Gen 2 Raptor to the next level with this Factory Race Series front upgrade kit, designed to deliver a high level of adjustability via Dual Speed Compression (DSC) adjusters and improved cooling efficiency through an all-new Recirculating Reservoir Bridge and finned remote reservoir.

This kit delivers the next level of off-road performance without sacrificing every day ride quality and comfort.

Body - 3.0" Hard anodized aluminum
External Reservoir - NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
Components - Hard anodized, CNC-machined 6061-T6 billet aluminum
Spring - 3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear
Shaft - 7/8" 17-4 H900 hard chrome plated stainless steel
Piston - Hard anodized 6061-T6 billet aluminum high flow race piston
Valving - Specific for Gen 2 Raptor to maximize performance and comfort
Oil - JM92 Advanced Suspension Fluid
Bearing - Spherical, PFTE-lined, heat-treated steel
Mounting - Heat treated steel spherical heim mounting
Adjustments - Dual Speed Compression (DSC) adjuster and Ride-height/spring preload ring
