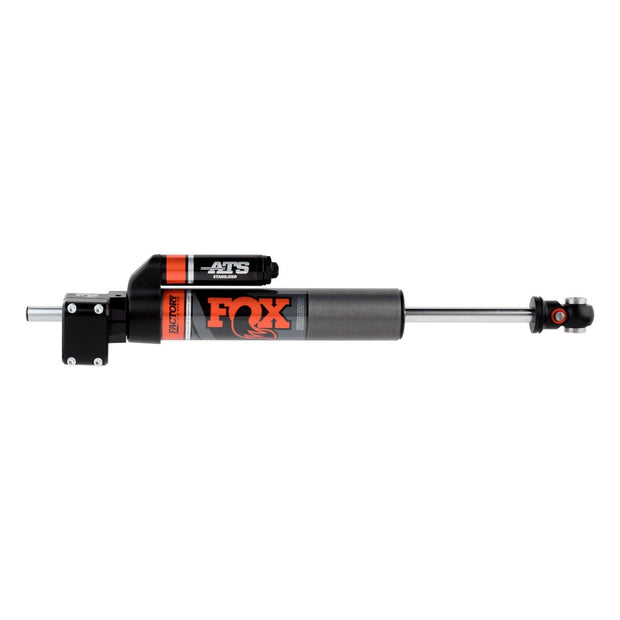

FOX FACTORY RACE SERIES 2.0 ATS STABILIZER for Jeep JL

983-02-148

Shipping in 2-4 Weeks

Regular price $439.99 Save $-439.99

0 in stock

The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.


Body 2.0” impact extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir External reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings Quiet nitrile rubber allows for increased suspension articulation
Adjustments Adjuster - 24 clicks of adjustability
Travel (in) 8.100
Compressed (in) 15.100
Extended (in) 23.200
Top Mount Eyelet
Bottom Mount Axle Mount
Fitment notes Axle Mount
