ICON Vehicle Dynamics Dodge Ram 1500 4wd suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series rear shocks with CDC Valve utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-UP Dodge Ram 1500 4wd Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
KEY FEATURES:
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
ICON CDC Valve allows quick and easy end-user adjustability
Adjustable coilovers from 0-2.5" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
Corrosion resistant CAD plated shock bodies with 7/8 shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install
WHEEL & TIRE FITMENT INFO:
OEM Wheels & Tires: Yes
Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
Aftermarket Tires: 33 x 11.50 Tall Tires
(Larger Tires May Fit but Fender Trimming and Modifications will be Required)

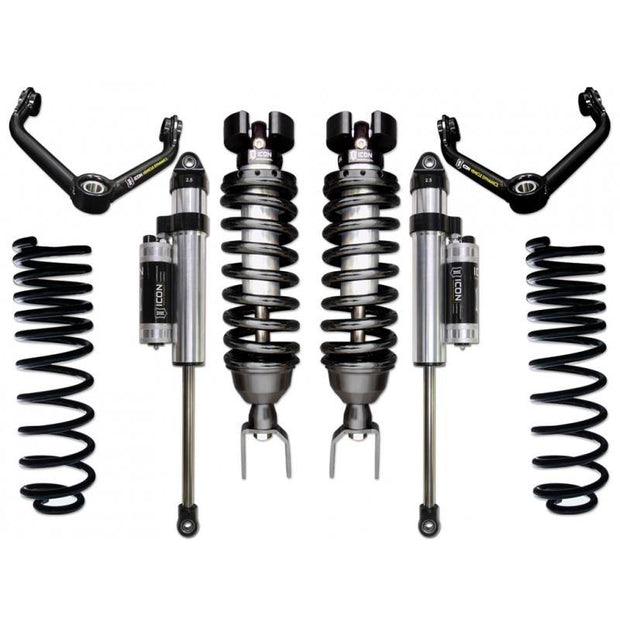

SYSTEM COMPONENTS:
211000 (QTY.1) | 09-UP RAM 1500 4WD 2.5 VS IR COILOVER KIT
218550DJ (QTY.1) | 09-UP RAM 1500 TUBULAR UCA KIT W/ DELTA JOINT
212150 (QTY.1) | 09-UP RAM 1500 REAR 1.5" DUAL RATE SPRING KIT
217715CP (QTY.1) | 09-UP RAM 1500 0-3" REAR 2.5 VS PB CDCV (PAIR)
OPTIONS:
191011 | ICON TUBULAR UCA COVER CAPS
198000 | ICON 2 PIN SPANNER WRENCH (FOR ADJUSTING PRELOAD OF COILOVERS)
