Icon 2014-UP RAM 2500 4WD 4.5" Suspension System - Stage 2 (Air Ride)

K214522A

Free Ships in 1-5 Business Days

Regular price $4,519.94 Save $-4,519.94

0 in stock

OVERVIEW:

ICON Vehicle Dynamics suspension systems for the 2014-UP RAM 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 2 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Series remote reservoir shocks help deliver balanced performance front to rear, making the Stage 2 system a great choice for any 2014-UP RAM 2500 4WD that's used for daily driving, towing, and recreational off-road driving. This suspension system has been designed specifically by ICON engineers to retain the functionality of factory rear air ride components while also allowing for rear ride height adjustability.


KEY FEATURES:

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Decreased body roll
  • Level stance from front to rear of vehicle
  • ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
  • Vehicle specific tuned front and rear 2.5 Series shocks provide superior damping and ride quality
  • Made in the USA


TECH INFO

  • 4WD applications only
  • Total lift height based on Crew Cab diesel configurations
  • Vehicles equipped with 2 piece driveshafts require carrier shim kit (Part #214211)


WHEEL & TIRE FITMENT INFO:

OEM Wheels & Tires: Yes

Aftermarket Wheels: 8" Wide Wheel With 5.75" Backspace

Aftermarket Tires: 37" x 12.50" Tall Tires

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)

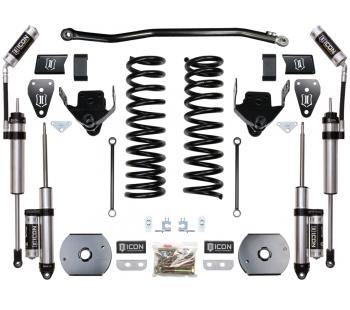

SYSTEM COMPONENTS:

214201 (QTY.1) | 14-UP RAM 2500 4.5" FRONT DUAL RATE SPRING KIT

214203 (QTY.1) | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT

214210 (QTY.1) | 14-UP RAM 3.75" REAR AIR RIDE KIT

214205 (QTY.1) | 14-UP RAM 2500 4.5" BOX KIT

217803P (QTY.1) | 14-UP RAM 2500 4.5" FRONT LIFT 2.5 VS RR PAIR

217704P (QTY.1) | 14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.5 VS PB PAIR
