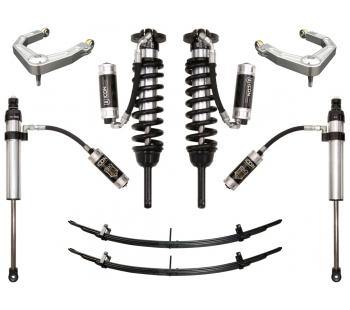

Icon 2016-UP Toyota Tacoma 0-2.75" Suspension System - Stage 6 w/Billet UCA


Usually Ships in 12-15 Weeks

Regular price $5,165.79 Save $-5,165.79

0 in stock

ICON Vehicle Dynamics 2016-UP Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 6 system includes vehicle-specific tuned 2.5” Extended Travel CDC coilover shocks featuring an external reservoir for enhanced cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.75” allowing the use of larger, more aggressive wheel and tire combinations. When combined with ICON upper control arms, ICON Extended Travel Remote Reservoir CDC coilovers add additional droop travel for outstanding off-road performance. ICON 2.5 Series Remote Reservoir CDC rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. ICON's CDC (Compression Damping Control) Valve allows the end user to quickly and easily adjust the compression valving of the shocks, which in turn provides the perfect ride across varying terrain and vehicle loadouts. The ICON Vehicle Dynamics 2016-UP Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to drastically enhance the capabilities of their truck off-road, improve handling characteristics on the road, and have the ability to customize their ride for the best performance in any situation.


  • Fits 2WD / 4WD applications
  • Increased wheel travel and ride quality over stock
  • ICON CDC Valve allows quick and easy end-user compression adjustability
  • Adjustable coilovers provide 0-2.75" of lift height
  • Extended Travel CDC coilovers matched with the uniball UCA increase droop travel for outstanding off-road handling
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.5 Series Remote Reservoir CDC shocks with 7/8" shaft
  • 100% bolt-on system
  • Made in the USA


  • CDC Valve shocks are application specific tuned like all ICON shocks
  • Internally calibrated per application based on motion ratio, shaft diameter, and vehicle weights
  • 10 detented stops and large adjuster knob provide easy-to-feel adjustments
  • Allows the end user to optimize vehicle's ride specific to his/her liking on all types of terrain
  • Clearly engraved knob for direct reading of current setting


OEM Wheels & Tires: Yes

Aftermarket Wheels: 8-8.5" Wide, 4.75" Backspace

Aftermarket Tires: 33 x 11.50

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)


58735C (QTY.1) | 2005-UP Toyota Tacoma 2.5" Remote Reservoir Extended Travel CDCV Coilover Shock Kit

58550 (QTY.1) | 2005-UP Toyota Tacoma Billet Uniball UCA Kit

51100 (QTY.1) | 1996-UP Toyota Tacoma Progressive Add-A-Leaf

57805CP (QTY.1) | 2005-UP Toyota Tacoma (0-3" Lift) 2.5 Series Rear Remote Reservoir CDCV Shock (Pair)


191011 | Uniball Cover Cap for Tubular UCA
158508 | 700 Pound Coil Spring Kit
191003 | Short Coilover Wraps
198000 | Spanner Wrench
56103 | 2005-UP Tacoma Rear Air Bump Kit
56105 | Rear Striker Kit for U-Bolt Flip
58450 | Uniball Tubular UCA
58550 | Uniball Billet UCA
614500 | Uniball Service Kit
51100 | 1.5" Rear Progressive Add-A-Leaf Pack
