Icon 2016-UP Toyota Tacoma 0-2.75" Suspension System - Stage 6 w/Tubular UCA

OVERVIEW:

ICON Vehicle Dynamics 2016-UP Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 6 system includes vehicle-specific tuned 2.5” Extended Travel CDC coilover shocks featuring an external reservoir for enhanced cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.75” allowing the use of larger, more aggressive wheel and tire combinations. When combined with ICON upper control arms, ICON Extended Travel Remote Reservoir CDC coilovers add additional droop travel for outstanding off-road performance. ICON 2.5 Series Remote Reservoir CDC rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. ICON's CDC (Compression Damping Control) Valve allows the end user to quickly and easily adjust the compression valving of the shocks, which in turn provides the perfect ride across varying terrain and vehicle loadouts. The ICON Vehicle Dynamics 2016-UP Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to drastically enhance the capabilities of their truck off-road, improve handling characteristics on the road, and have the ability to customize their ride for the best performance in any situation.

KEY FEATURES:

• Fits 2WD / 4WD applications
• Increased wheel travel and ride quality over stock
• ICON CDC Valve allows quick and easy end-user compression adjustability
• Adjustable coilovers provide 0-2.75" of lift height
• Extended Travel CDC coilovers matched with the uniball UCA increase droop travel for outstanding off-road handling
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Series Remote Reservoir CDC shocks with 7/8" shaft
• 100% bolt-on system
• Made in the USA

OEM Wheels & Tires: Yes

Aftermarket Wheels: 8-8.5" Wide, 4.75" Backspace

Aftermarket Tires: 33 x 11.50

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)

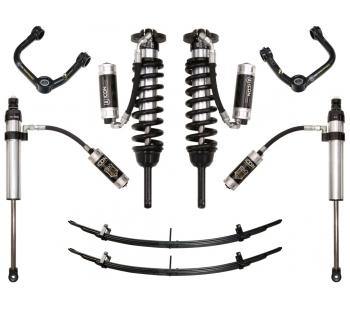

SYSTEM COMPONENTS:

58735C (QTY.1) | 2005-UP Toyota Tacoma 2.5" Remote Reservoir Extended Travel CDCV Coilover Shock Kit

58450 (QTY.1) | 2005-UP Toyota Tacoma Tubular Steel Uniball UCA Kit

51100 (QTY.1) | 1996-UP Toyota Tacoma Progressive Add-A-Leaf

57805CP (QTY.1) | 2005-UP Toyota Tacoma (0-3" Lift) 2.5 Series Rear Remote Reservoir CDCV Shock (Pair)
