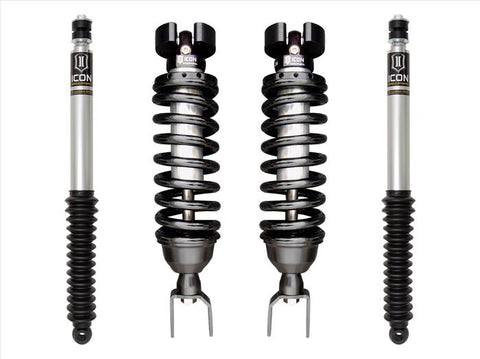

The ICON Suspension 2019-2023 Ram 1500 Stage 1 System is designed for serious drivers looking for maximum performance. With a focus on increasing wheel travel and damping ability, this system offers outstanding control and ride quality both on and off-road. It comes equipped with 2.5” coilover shocks with an internal reservoir for optimal cooling and ICON-engineered coil springs for superior vehicle "feel." These coilovers are also adjustable for a 2-3" lift and can accommodate larger wheel and tire combinations. Delta Joint upper control arms improve strength and durability while maintaining factory alignment specs and increasing caster. The rear shocks, designed specifically for this vehicle, provide a balanced performance between the front and rear. The Stage 1 system also features upper control arms with the patented Delta Joint, which offers the durability of a ball joint and the angle capabilities of a uniball. With a zinc-plated housing and a greaseable design, the Delta Joint is built to withstand exposure to the elements.
TECH DATA:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers yield 2-3" of front lift height over stock
- Corrosion resistant, 2.5” diameter, CAD plated coilover shock bodies with 7/8" shafts

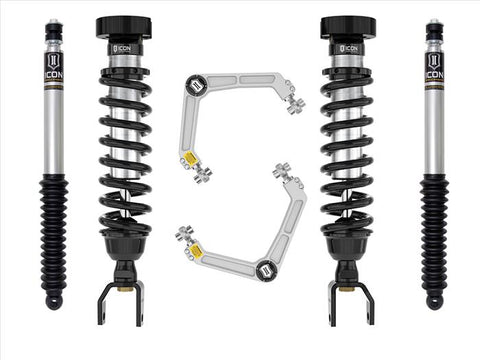

- Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range
- 2.0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
- 6061 Aircraft grade aluminum CNC machined components
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
DOWNLOAD INSTALLATION GUIDE
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks
- APPLICATION NOTE #105: Not for vehicles with rear factory air ride
- APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models
- TECH NOTE: 2019-2023 Ram 1500 Rebel will have lift height range of 1.25-2.25" over stock
- TECH NOTE: Will not fit Ram 1500 TRX
- TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock on most Ram 1500 submodels or with 0-2.5" of rear lift on Ram Rebel
