PSC 2nd Gen 1994-2002 Dodge Ram 2500/3500 Steering Box SG851 - XD
PSC 2nd Gen 1994-2002 Dodge Ram 2500/3500 Steering Box SG851 - XD

PSC 2nd Gen 1994-2002 Dodge Ram 2500/3500 Steering Box SG851 - XD

SG851

Regular price $899.99 Save $-899.99

-27 in stock

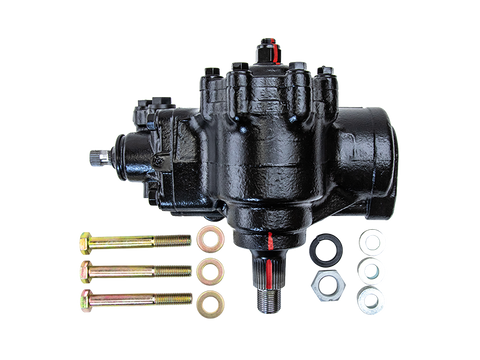

Improve the steering performance on your 2nd Gen Dodge RAM with the SG851 Big Bore Steering Gear. The larger 45mm sector shaft and increased lower sector shaft support bearing eliminate side-to-side movement, allowing for better handling on and off the road. Upgrade to this redesigned gear for an improved driving experience on your second gen.

APPLICATION:

1994-2002 Dodge RAM 2500/3500 4WD Trucks

FEATURES:

Extreme Duty Replacement Steering Gear that eliminates the need for aftermarket steering braces

45mm Diameter Sector Shaft and Larger Support Bearing

16:1 Steering Ratio – 3.25 Turns Lock-To-Lock

Compatible with Factory and Aftermarket Pitman Arms

Compatible with OEM High-Pressure and Return Line Hose Assemblies

Mounting Hardware Included

NOTES:

This product CANNOT be installed on 2WD Dodge 2500/3500

This product is not compatible with aftermarket steering gear brace solutions

Due to the increased overall size of the PSC XD steering gear, installation hardware including spacers and bolts are included in the kit to space the steering gear off the frame
