Features:
- 12 user-programmable switches
- RCR-TOUCH® switch cover (United States Design Patent No. US D922,969 S)
- Waterproof, solid state power module
-
150amp capacity with 17 outputs
- 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
- 11 rated @ 15A, which can be combined for larger loads
- 1 Low Side driver switch, rated @ 2A
- Built-in Bluetooth module
- Program and operate accessories with phone or tablet
- System can be used to start vehicle

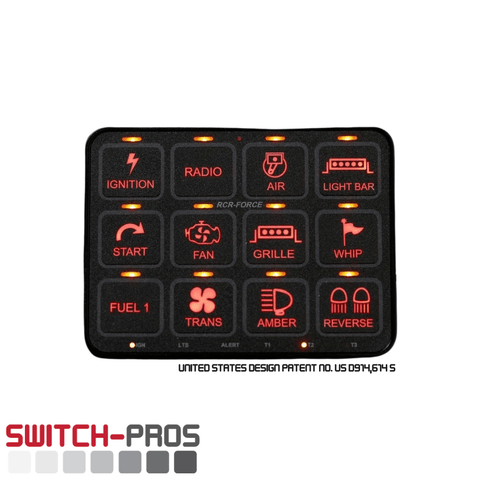

Switch Panel Specs:
- RCR-Touch® cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
- Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)
- Splash proof with Polycarbonate overlay faceplate

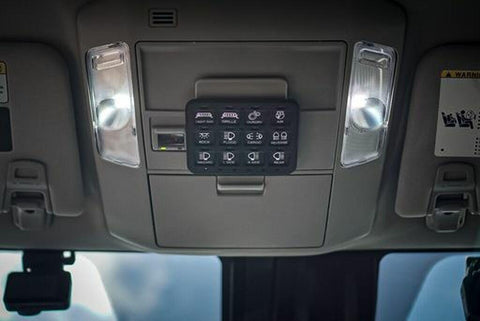

- Pre-machined for factory-look installation
- RGB backlighting
- Orange LED switch indicators
- 6 Programmable LED Status indicators
Power Module Specs:
- 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
- 150A maximum rating
- 7”L x 3.5”W x .5”H (excluding connectors)
- Waterproof and Solid State
- Underhood rated 125° to -40°C
- LED Ignition Input Status Indicator

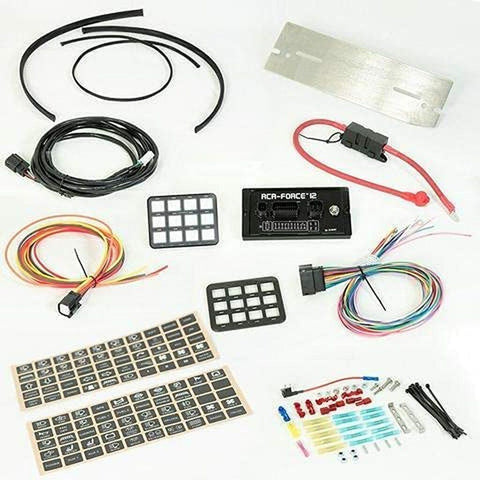

Kit Also Includes:
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 150A inline Circuit protection
- 100 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- Color Coded Output wires
- Wire harness with waterproof, sealed automotive grade connectors
Switches Can Be Programmed For:
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Every Master Switch can control up to 4 other switch outputs
- On-On-Off logic
- Touch Panel lockout
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Safety Lockout for specific switches
- Time Delay off
Additional Features:
- No bulky relay box
- RGB Backlighting with unlimited color options
- Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Sleep Mode for minimal power consumption
- Color coded output wires
- Daisy Chain up to 3 Switch Panels to One Power Module
- Free app for iOs and Android platforms
- Splash proof switch panel with Polycarbonate overlay faceplate
- LED Input Status Indicators for easy troubleshooting
- Battery Voltage Readout on App screen
