USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNED // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving. The Pathfinder system offers phenomenal capability and ride no matter the situation thanks to the increased shock diameter and reservoirs for heat dissipation.
FABRICATED RADIUS ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength radius arm replacement. They also have more tire clearance than the factory arms thanks to a notched design. If you want the best of the best for your truck, look no further.
SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck’s ride. To keep the factory ride, select the end link option.
The Carli Pathfinder Spec 2.5" Leveling Kit is deigned to offer the most performance possible from a leveling kit. Using Carli's custom built and tuned SPEC 2.5" diameter shocks paired with their soft ride 2.5" lift front coils, you're able to improve ride while maintaining full factory payload and towing capacity. This kit also includes a Carli track bar and all the small supporting parts needed to have this be a bolt in upgrade on your RAM truck. Whether you're towing a travel trailer or heading off-road, this system delivers superior performance you can rely on.

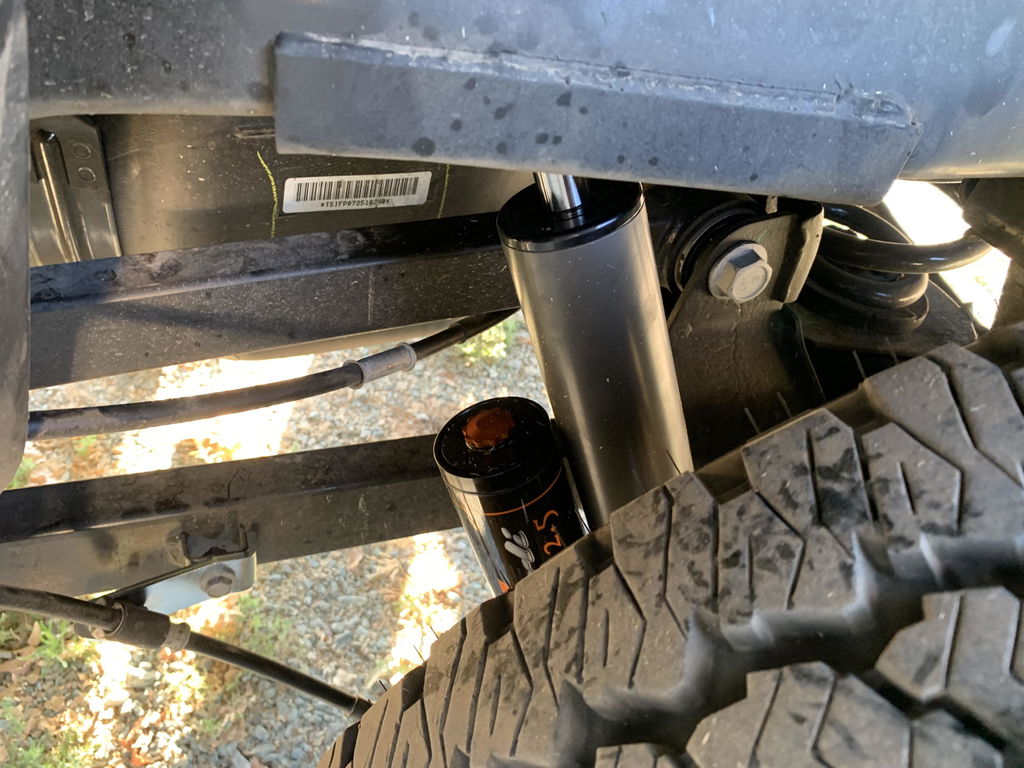

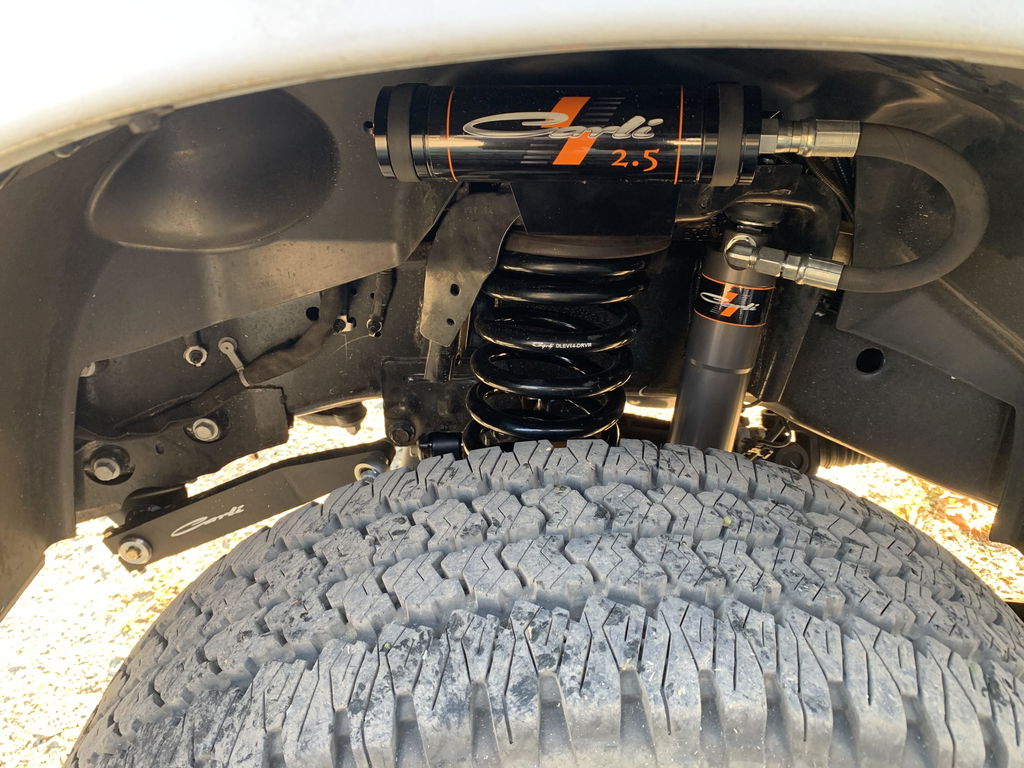

This system features a 2.5” lift with Linear Rate Coil Springs combined with Carli's custom built and tuned SPEC series 2.5” Remote Reservoir Shocks, designed in-house for exceptional ride comfort and handling on and off the road. Included are rear piggyback reservoir shocks, also custom tuned to enhance the factory rear coil springs’ performance.
You're likely cross shopping this system with the Carli Backcountry or Carli King Pintop levels, so the goal with this Pathfinder system was to offer King level performance at a lower price point, and with softer on road ride. The extra .5" of shock diameter also makes for increased control over the 2" diameter Backcountry shocks, setting this system as a perfect middle ground between the two.
The included Adjustable Track Bar re-centers the axle and E-Brake Line Relocation Brackets ensure plenty of clearance for the oversized rear shocks.
Ride quality can be substantially increased with the addition of Carli's Torsion Sway Bar, and the addition of a Carli Low Mount Steering Stabilizer is recommended for any tire over factory size. While not required, those are great add on items to this base system!
THIS IS A DIESEL ONLY SYSTEM
This system fits Dodge Ram 2500 4x4 trucks from 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, and 2025 with factory rear coil springs. If you have a Ram 2500 with rear air, Carli has a different and dedicated lineup of systems specifically designed for your truck.
This system will NOT be upgradeable to the 3" height Carli Suspension Systems. It’s designed to be a solution for customers wanting a quality, big- shock system boasting huge off-road capability, minimal lift and NO reduction in payload or hauling capacity.

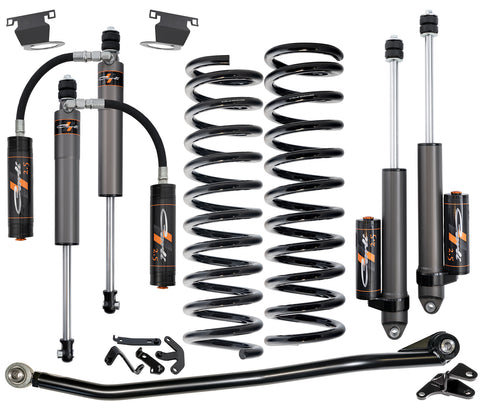

INCLUDES
-Front Carli SPEC 2.5 Carli Tuned Shocks
-Rear Carli SPEC 2.5 Carli Tuned Shocks
-Front Linear Rate Diesel Coils
-Carli Adjustable Track Bar
-Carli Reservoir Mounts
-Carli E-Brake Relocation Tabs
SPECIFICATIONS
SKU: CS-DLVL-PF-13-D
Leveling Pintop 2.5 System, Diesel, 2014-18 & 2019+ 2500 Base Kit
-2.5" Front Lift
-Stock Rear Height/Towing Capacity
-Level Ride Height
-Designed for Diesel Applications Only
Installation Instructions
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | Tire Fitment |
|---|---|---|---|---|---|
| 2.5″ | 0″ | 8.3″ | 9″ | 2.0″ | 35″ / 37" |
