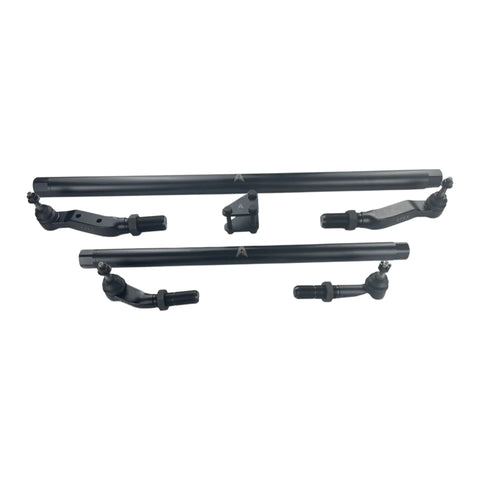

The Apex 2014 to current Ram 2500/3500 steering linkage kit is the highest quality option for your Ram truck. Massive DOM tubing backed by easily replaceable and serviceable joints makes for a bullet proof design that's a direct bolt in with no drilling or modification necessary. If you have a 2014-2018 Dodge Ram with a welded drag link from Mopar's "fix" this is the perfect solution!
It's no secret that Ram has struggled to make quality steering linkage for their trucks, and this steering kit from Apex tackles all the common failure points of the OEM steering. Apex may be new to the Ram world, but their designs are proven in the Jeep market and we're excited to carry this new offering.
Stabilizer Fitment Notes:

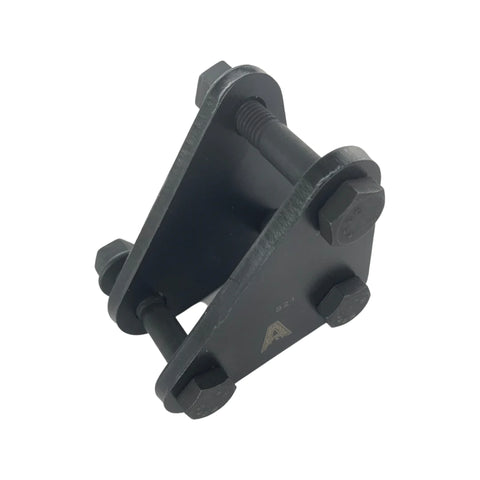

Low Mount Carli stabilizers must use the provided Carli brackets and hardware, so you will not use the bracket provided by Apex.
High mount stabilizers will be 2019+ even for 2014-2018 trucks. This has to do with the proper sizing for the drag link design, but we have confirmed fitment and all 14+ trucks work with this combonation.
WHAT IT FITS:
Dodge Ram 2500 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 4WD trucks.
Dodge Ram 3500 2013 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 4WD trucks.
- SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
- CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
- SAE 4140 Hot Forged Chromoly Ball Studs: For the strongest possible metallurgy.
- Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
- Rolled Threads: Made by pressing the shape of the threads into the ball stud instead of cutting. This strengthens the threads instead of weakening them and allows for easy movement of hardware. This ain't no Ikea furniture!
- Step Threads: Allows for very easy movement of hardware on install and superior holding when torqued (installer choice).
- Rugged Metal to Metal Bearing
- CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold.
- Accordion Boot: Ideal for high-articulation components, more flexibility means longer life.
- Polished Aluminum: Highly polished, raw aluminum
- Black Aluminum and DOM Steel: Powder coated black
- Grade 8 - Class 10.9 Hardware: Superior tensile strength.
- Castle Nut: Industry standard where high vibration loads occur.

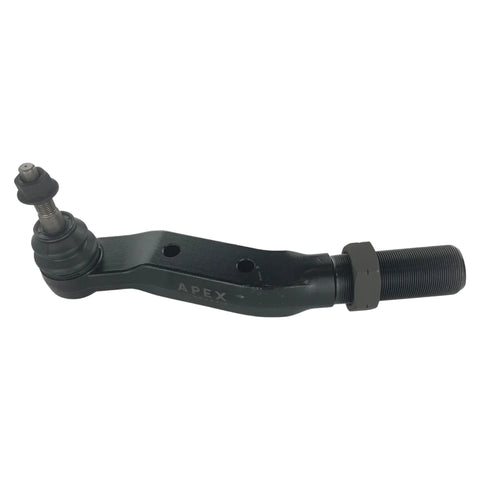

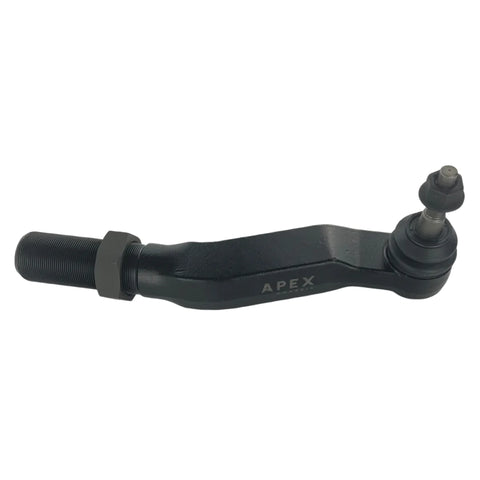

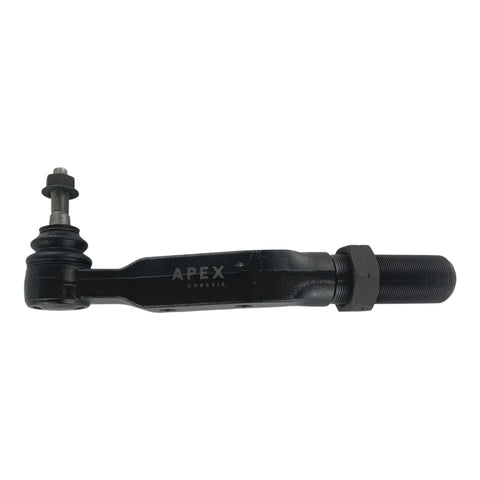

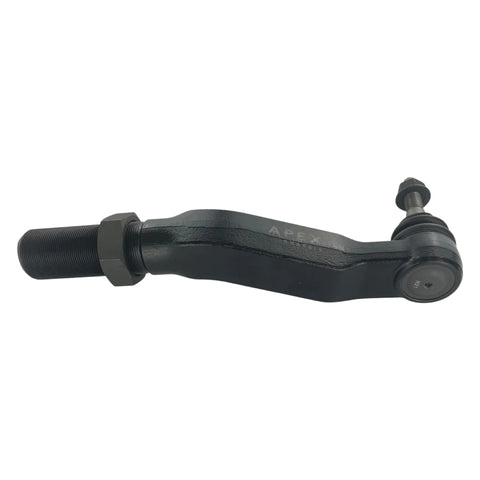

- Tie Rod: 2" DOM SAE 1020 Tube: Heavy walled steel tubing provides the tightest most robust steering on the market.

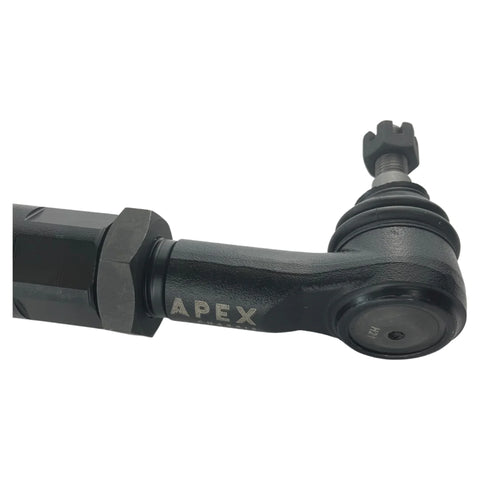

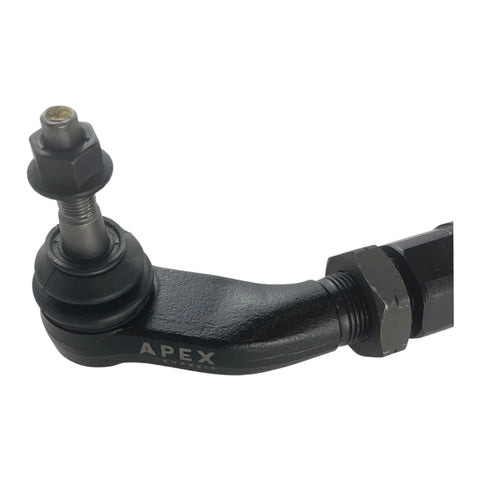

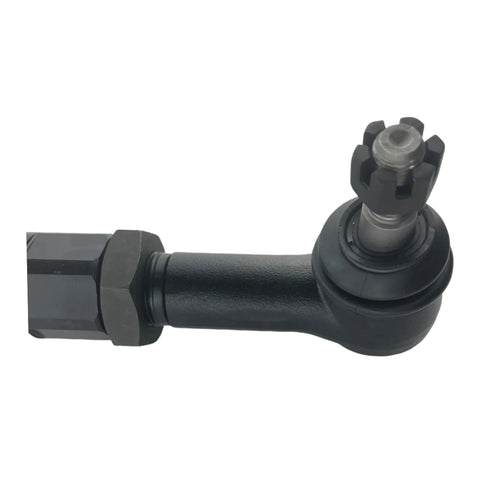

- Drag Link: 1.75" DOM SAE 1020 Tube: Heavy walled steel tubing provides the tightest most robust steering on the market.
- Tie Rod: 2.125" 7075-T6 Aluminum Rod: The best aluminum available for this application. Extremely durable but has some flex and memory if you really bash it into something.
- Drag Link: 2" 7075-T6 Aluminum Rod: The best aluminum available for this application. Extremely durable but has some flex and memory if you really bash it into something.
- Pre Threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
- Greaseable: Because it should be.
- Pre-Greased: Just in case you forget, we have you covered.
- Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
- Zerk Fittings: Included for every application.
- ProLock Link Connect System (TM): Exclusively from APEX - This patent pending system utilizes a precision keyway cut into the threads of our tie rod ends, and a pre-bent keyway washer that locks onto the wrench flats of the connecting rod to completely stop any tie rod rotation once the jam nut is set. The jam nut, once torqued to spec, is then locked in place with 3 set-screws inset into the jam nut.
-
Pre Bent Ninja Washers (tm): An APEX exclusive is our Ninja Washer which is a unique method of securing the lock nut to the tube, erasing the need for lightly built adjusting tubes with ugly pinch clamps.
And who doesn't want a ninja on their front end! - Greaseable, High Articulation Spherical Bushing: For extreme durability our passenger side tie rod is fitted with an oversized greaseable high articulation spherical bushing. This allows for maximum articulation and load disbursement, for better performance, and longer life.
- Minimum Engagement Mark on Drag Link End Threads: If this mark in the thread of the drag link is showing it means you are beyond the safe engagement of threads into the adjusting sleeve. You may be lifted too high and need to switch to a flip kit or you may need to equal out the adjusting sleeve between the two ends.
