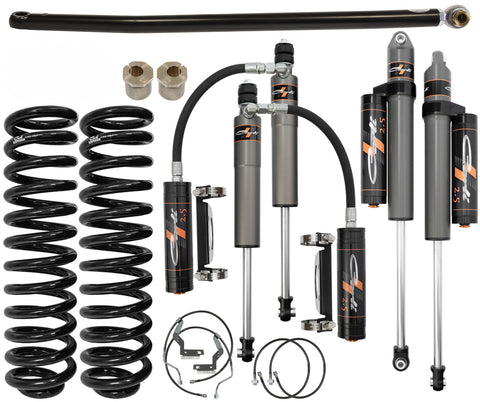

The Pathfinder system strikes a balance between the Backcountry and Pintop, designed for Super Duty owners who want smooth on-road comfort with reliable off-road capability. It offers a controlled ride for light to moderate off-roading while excelling on pavement by absorbing bumps for a comfortable drive. Featuring Carli-SPEC 2.5” aluminum shocks with a durable anodized finish and high-performance red shock oil, it ensures long-lasting, consistent performance. With a 2.5” lift, adjustable track bar, and upgraded components, the Pathfinder provides a premium, dependable suspension that enhances daily driving and weekend adventures alike.
The rear can be outfitted with a replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton) or factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity and pairs with the factory 2” block). This is where the F250 and F350 are a bit different. Since 2008, the main spring packs on these two trucks is different; the F250 has a lighter rate spring pack than its 350 counterpart. The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If capacity is a concern, an aftermarket airbag system should be installed to complement the Full Progressive Leaf Springs to restore the F350 capacity. We recommend a system that will allow the airbags to disconnect from the lower mount during suspension cycling to ensure you’re able to take advantage of all your rear suspension travel. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.
If ordering this kit with an Add-a-Pack, Super Duties equipped with a 3-5/8″ tall block from the factory will require the factory 2″ tall Block to achieve a leveled stance with the Add-a-Pack. Part Number: 7C3Z-5598-L and 7C3Z-5598-K
| Front Lift | Rear Lift | Front Travel | Rear Travel | Shock Diameter | |
|---|---|---|---|---|---|
| 2.5″ | 0-2″ | 8.7″ | 12.9″ | 2.5″ |
