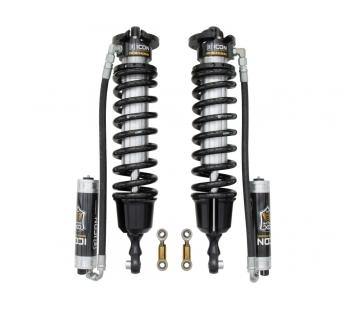

Icon Vehicle Dynamics 2007-UP Toyota Tundra 3.0 Series Remote Reservoir CDCV Coilover Kit

58755

Free Ships in 1-5 Business Days

Regular price $3,854.50 Save $-3,854.50

0 in stock
While ICON’s 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few Tundra owners seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2007-UP Toyota Tundra 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.

Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.

These 3.0 Series coilovers were designed as an OEM shock replacement, making install a simple and straightforward bolt-on affair. Built in ride height adjustability yields 1.63-3.5” of front lift height allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components such as Eibach coil springs and FK Rod End bearings are used to ensure these shocks function to their maximum potential without issue.



KEY FEATURES:

Significant increase in damping ability for excellent performance in extreme off-road conditions
Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road
Adjustable coilovers provide 1.63-3.5” of front lift height
Direct bolt-in to OEM shock location makes for an easy install
ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations
10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase
High quality ICON-engineered Eibach springs offer increased travel and performance
PTFE lined COM12 spherical bearings ensure maximum strength and durability
Heavy duty 1” CNC machined shock shafts
Multi stage CAD plated shock body with hard anodized piston and top cap
Fully serviceable
“ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Made in the USA

CDC VALVE FEATURES:

CDC Valve shocks are application specific tuned like all ICON shocks
Internally calibrated per application based on motion ratio, shaft diameter, and vehicle weights
10 detented stops and large adjuster knob provide easy-to-feel adjustments
Allows the end user to optimize vehicle's ride specific to his/her liking on all types of terrain
Clearly engraved knob for direct reading of current setting


TECH INFO:
Sway bar tips must be rounded off for coil cup clearance


WHEEL & TIRE FITMENT INFO:

OEM Wheels & Tires: Yes

Aftermarket Wheels: 8-8.5" Wide, 5.75" Backspace

Aftermarket Tires: 35 x 12.50

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)
