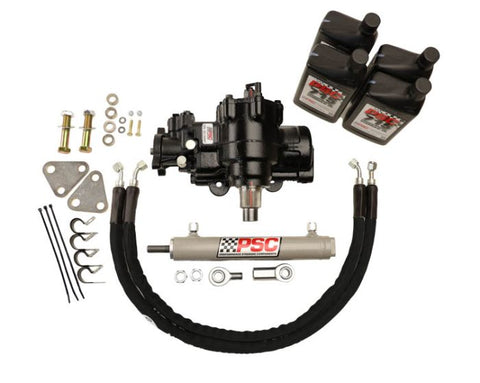

The PSC 2020-2024 5th Gen Dodge Ram 2500/3500 Steering Box SG857 -XD is designed by industry experts with a larger lower sector shaft support bearing and a 45mm sector shaft to reduce side-to-side movement. Its 80mm internal piston assembly allows for improved load-pushing capability and the 16:1 steering ratio delivers exceptional handling and effortless maneuvering.
APPLICATION:
2020-2024 Dodge RAM 2500/3500 4WD Trucks with LaneSense Lane Departure Warning
FEATURES:
Extreme Duty Replacement Steering Gear that eliminates the need for aftermarket steering braces
45mm Diameter Sector Shaft and Larger Support Bearing
16:1 Steering Ratio – 3-1/2 Turns Lock-To-Lock
Compatible with Factory and Aftermarket Pitman Arms
Compatible with OEM High-Pressure and Return Line Hose Assemblies
Fully assembled hoses and fittings, ready to bolt-on for quicker, easier installation
All mounting brackets and hardware for 100 percent bolt-on to factory tie rod
BIG BORE XD® Steering Gear featuring PSC Ported, Balanced and Tuned Valving
PSC 715 Power steering fluid
Mopar 68534021AC Direct Replacement
100 Percent New with No Core Charge
Designed to Work with Factory Torque Overlay
PSC Ported and Tuned Valving
