Carli's Pintop 2.5 system offers a great solution for the daily driver/weekend warrior. With improved on road ride quality, the Pintop 2.5 also offers the benefits of King 2.5 shocks in terms of durability, longevity, improved on road rid and handling, and enhanced off road performance.
This kit utilizes the factory shock towers with specifically engineered front King 2.5 shocks, allowing for clearance of motor modifications such as twin turbos not typically available with 2.5" and bigger shock setups.
*2010-present vehicles have 2 possible sizes of Sway Bar End Links. Place a socket on the nut that compresses the rubber End Link bushings; fitment of an 18mm socket will indicate the need for the 12mm part number. We highly recommend end links on any 03+ Ram truck.
This system fits Dodge Ram 2500 Hemi 4x4 trucks from 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013.

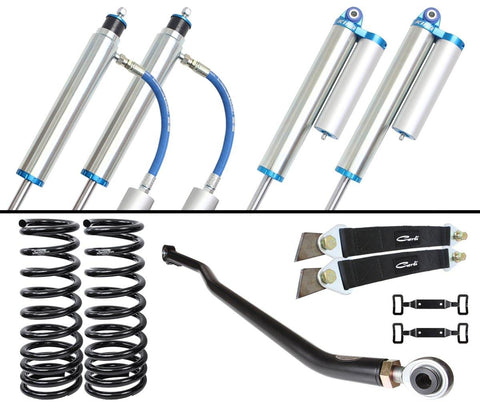

-Carli 3" Front Lift Coil Springs
-Carli Pintop 2.5 Shock Package with Limit Straps and Reservoir Mounts
-Carli Adjustable Track Bar
-Carli Stainless Sway Bar End Links With F.K. Bearings
-Carli Torsion Sway Bar (2003+ trucks only)
-Carli Adjustable Track Bar (2003+ trucks only. 1994-02 trucks should use a track bar conversion kit that includes a new upper bracket, such as this one)
-Carli Control Arms
-Carli Rear 5 Leaf Progressive Add a Packs
-Carli Full Progressive Rear Leaf Springs
Year Model Part Number
2010-13 DODGE RAM 2500 4x4 Diesel (10mm End Links) CS-DPT25-10-D
2010-13 DODGE RAM 2500 4x4 Diesel (12mm End Links) CS-DPT25-10-D-12mm
2010-12 DODGE RAM 3500 4x4 Diesel (10mm End Links) CS-DPT25-10-D
2010-12 DODGE RAM 3500 4x4 Hemi CS-DPT25-10-H
|Front Lift||Rear Lift||Front Travel||Rear Travel||Shock Diameter||Tire Fitment|
|3.0″||1″ – 2″||10″||10.6″||2.5″||37″ x 12.5″|
