Carli Dodge 2010-2013 Pintop 2.5 3" Lift Suspension System

CS-DPT25-10-D

Free Ships in 1-5 Business Days

Regular price $4,075.00 Save $-4,075.00

0 in stock
USA MADE // Carli is committed to production in the USA. Every single Carli Product is American made and sourced, down to the tape and boxes themselves.
CUSTOM TUNING // Unlike your average lift, Carli Suspension uses only custom tuned shocks. Each shock package goes through months of testing, development, tuning, and valving to match exactly to the truck and suspension system. The Pintop system features Carli custom pistons and tuning housed in a 2.5" King shock with stainless shock shafts. Carli tunes these shocks to ride well on the street, but also tackle everything from crawling, to high speed off road driving.
CONTROL ARMS // Hand fabricated and welded in California with the highest quality joints for improved flex, these arms are a high strength control arm replacement. To run 37’s, you will need the high clearance fabricated arms, that have a notch for tire clearance.
SWAY BAR UPGRADE // Eliminates the harshness caused by the stiff factory sway bar, letting your suspension do its job and move independently. This is one of the single biggest improvements you can make to your truck’s ride. To keep the factory ride, select the end link option. (TSB is for 03+ only)
LEAF PACK OPTIONS // Balancing ride and capability, the add a pack retains factory payload but improves small bump compliance by increasing the leaf count and reducing leaf thickness in half the pack. With the full leaf pack, a 15% payload reduction gets the best possible ride quality from the rear of the truck. Small chatter or large hit, this leaf pack will swallow it whole. The HD pack is ONLY for chase trucks or trucks with over 2,000lbs in bed at all times.

Carli's Pintop 2.5 system offers a great solution for the daily driver/weekend warrior. With improved on road ride quality, the Pintop 2.5 also offers the benefits of King 2.5 shocks in terms of durability, longevity, improved on road rid and handling, and enhanced off road performance.

This kit utilizes the factory shock towers with specifically engineered front King 2.5 shocks, allowing for clearance of motor modifications such as twin turbos not typically available with 2.5" and bigger shock setups.

*2010-present vehicles have 2 possible sizes of Sway Bar End Links. Place a socket on the nut that compresses the rubber End Link bushings; fitment of an 18mm socket will indicate the need for the 12mm part number. We highly recommend end links on any 03+ Ram truck.

This system fits Dodge Ram 2500 and Dodge Ram 3500 4x4 trucks from 2010, 2011, 2012, 2013.

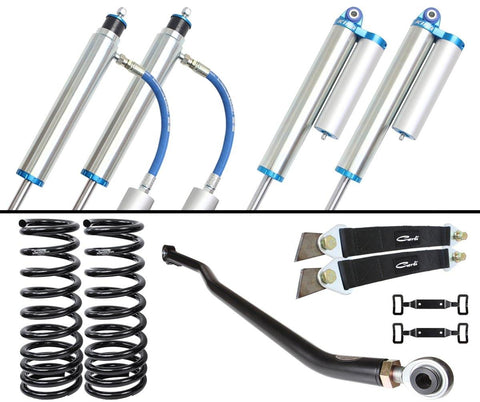

FEATURES

-Carli 3" Front Lift Coil Springs
-Carli Pintop 2.5 Shock Package with Limit Straps and Reservoir Mounts
-Carli Adjustable Track Bar

OPTIONAL

-Carli Stainless Sway Bar End Links With F.K. Bearings
-Carli Torsion Sway Bar (2003+ trucks only)
-Carli Adjustable Track Bar (2003+ trucks only. 1994-02 trucks should use a track bar conversion kit that includes a new upper bracket, such as this one)
-Carli Control Arms
-Carli Rear 5 Leaf Progressive Add a Packs
-Carli Full Progressive Rear Leaf Springs

FITMENT GUIDE

Year
Model Part Number

2010-13 DODGE RAM 2500 4x4 Diesel (10mm End Links) CS-DPT25-10-D
2010-13 DODGE RAM 2500 4x4 Diesel (12mm End Links) CS-DPT25-10-D-12mm
2010-12 DODGE RAM 3500 4x4 Diesel (10mm End Links) CS-DPT25-10-D

2010-12 DODGE RAM 3500 4x4 Diesel (12mm End Links) CS-DPT25-10-D-12mm
2010-13 DODGE RAM 2500 4x4 Hemi CS-DPT25-10-H
2010-12 DODGE RAM 3500 4x4 Hemi CS-DPT25-10-H
2003-09 DODGE RAM 2500/3500 4x4 Diesel CS-DPT25-03-D
2003-09 DODGE RAM 2500/3500 4x4 Hemi CS-DPT25-03-H
98.5-02 DODGE RAM 2500/3500 4x4 Diesel CS-DPT25-985
94-98 DODGE RAM 2500/3500 4x4 Diesel CS-DPT25-94

WHEEL/TIRE FITMENT
This system will fit up to a 35” tire with stock control arms (we recommend purchasing our extended, Mild Steel Control Arms) on wheels with 5.75-6” of backspacing. If running factory wheels, we recommend an All Terrain 35” tire to avoid rubbing. For 37” tire fitment, Carli's High-Clearance Control Arms and Adjustable Track Bar can be paired to a wheel with 5.75” of Backspacing. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.
Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
3.0″ 1″ – 2″ 10″ 10.6″ 2.5″ 37″ x 12.5″

Installation Instructions
