The Dominator 3.0 is Carli's original flagship ride quality performer for 1994-2012 Dodge Ram 2500/3500 4x4 trucks. The larger displacement combined with Carli's custom low-flow piston and latest shock tune offers the smoothest dampening control and high speed bottom-out resistance. There's nothing smoother than a Carli tuned King 3.0.
In our opinion, the Dominator 3.0 offers the best all around ride quality of any suspension offerings for a Ram 2500/3500 truck. The size and displacement of the 3.0 shocks allows for tuning that almost eliminates and kind of felt choppiness while offering enough dampening to improve the truck's handling both on and off road.
Carli provides the option of whether to include the sway bar end links or torsion sway bar as well as rear progressive add a packs or full progressive leaf springs with this system. For 2003-2009 trucks especially, the replacement sway bar end links are highly recommended as 2"+ of front lift tends to overextend the factory sway bar end links. The progressive add a packs are designed to retain factory weight capacity while softening the rear of the truck as the rear suspension compresses. The full progressive leaf springs replace the entire factory leaf spring pack and are designed to retain about 85% percent of the factory weight capacity. In terms of ride quality, the full progressive leaf springs offer one of the most significant improvements in ride quality available for these trucks.
**2010-present vehicles have 2 possible sizes of Sway Bar End Links. Place a socket on the nut that compresses the rubber End Link bushings; fitment of an 18mm socket will indicate the need for the 12mm part number.
This system fits Dodge Ram 2500 Hemi 4x4 trucks from 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013.

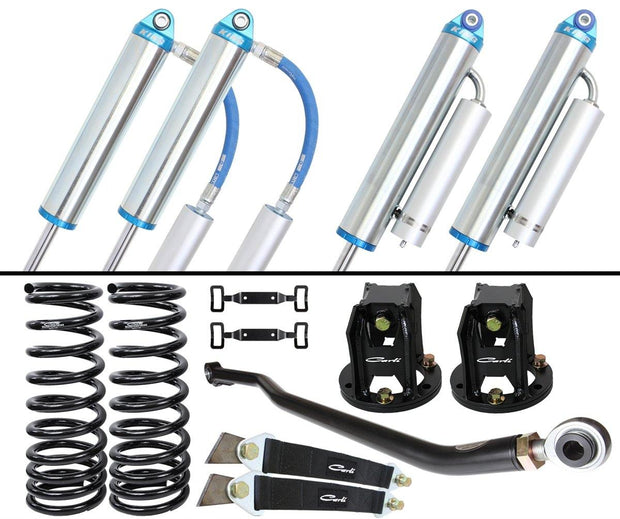

-Carli 3" Front Lift Coil Springs
-Carli Dominator 3.0 King Shock Package with Limit Straps and Reservoir Mounts
-Carli Adjustable Track Bar
-Carli Fabricated Shock Towers
-Carli Dominator Rear Gusset Kit
-Carli 4" Hole Saw and Arbor
-Carli Stainless Sway Bar End Links With F.K. Bearings
-Carli Torsion Sway Bar (2003+ trucks only)
-Carli Adjustable Track Bar (2003+ trucks only. 1994-02 trucks should use a track bar conversion kit that includes a new upper bracket, such as this one)
-Carli Control Arms
-Carli Rear 5 Leaf Progressive Add a Packs
-Carli Full Progressive Rear Leaf Springs
Year Model Part Number
2010-13 DODGE RAM 2500 4x4 Diesel (10mm End Links) CS-D30-10-D
2010-13 DODGE RAM 2500 4x4 Diesel (12mm End Links) CS-D30-10-D-12mm
2010-12 DODGE RAM 3500 4x4 Diesel (10mm End Links) CS-D30-10-D
2010-12 DODGE RAM 3500 4x4 Hemi CS-D30-10-H
|Front Lift||Rear Lift||Front Travel||Rear Travel||Shock Diameter||Tire Fitment|
|3.0″||1″ – 2″||10″||12″||3.0″||37″ x 12.5″|
