-Warrantied for life.
-In lieu of enumerating the materials, processes, and design characteristics of Carli's Ball Joints, they're just going to stand behind this component for as long as you own it. If for any reason the performance of Carli's Ball Joint declines, Carli will stand behind it. For the life of your purchase. After the finalization of the R&D process Carli is confident that this part will never fail.
For more details on Carli's limited lifetime warranty, click here.
Carli's new 2003-2013 Dodge Ram 2500/3500 4x4 adjustable track bar is a must for any Dodge 2500/3500 4x4 suffering from wandering steering or with an aftermarket lift. The track bar will center the axle side to side and ensure proper suspension geometry. The track bar will also give a tighter feel to the front end by eliminating the O.E.M rubber bushings. Included with each track bar are all required spacers, crush sleeves, and shims to fit each specific vehicle's stock hardware. On one end is a custom F.K. Heim Joint that offers articulation and rigidity with an improved service life over other styles of bushing. On the opposite end is an heavy duty captured uniball bearing for maximum strength and life-span. A laser-cut gusset surrounds the uniball welded cup to ensure that this track bar will be the last you ever buy.SPECIFICATIONS
-Constructed from 1.50" x .375" wall Chromoly tube
-CNC bent for perfect fitment
-Fixture-welded in house
-Pre-loaded captured bushing
-Captured 7/8" FK Uniball on frame side and heim joint on the axle side
-Includes misalignment spacers
-Includes sleeves for both 14MM and 16MM applications
Fits 1994-2013 Dodge Ram 2500 4x4 and 1994-2012 Dodge Ram 3500 4x4 trucks. Fitment on 1994-2002 trucks is possible with a 3rd Party conversion bracket, but we cannot guarantee fit or clearance.

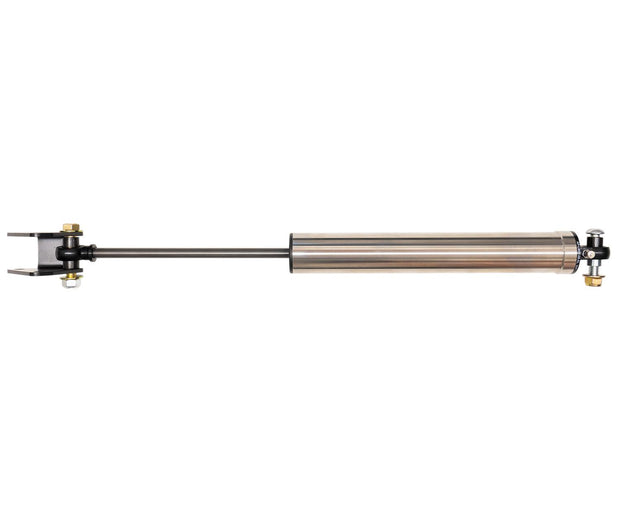

Recommended unloaded tire pressure is 45F/40R. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size.
-Front Fox 2.0 IFP Carli Tuned Shocks
-Rear Fox 2.0 IFP Carli Tuned Shocks
-Front Linear Rate Coils
-2.5" Front Lift
-Stock Rear Height/Towing Capacity
-Level Ride Height
-Designed for Diesel Applications Only
|Front Lift||Rear Lift||Front Travel||Rear Travel||Shock Diameter||Tire Fitment|
|2.5″||0″||9″||9″||2.0″||35″ / 37"|
