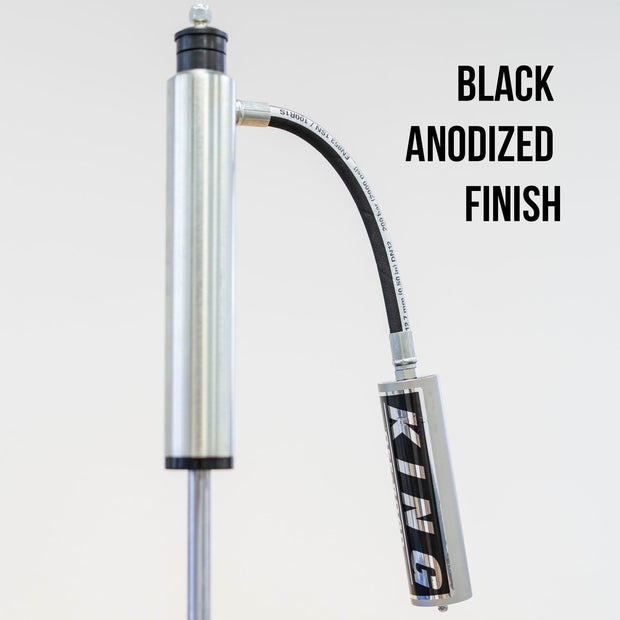

The Carli 2.5" Pintop is the premier bolt on 2014+ Ram 2500 suspension system on the market. With no permanent modifications to the truck, this setup transforms ride quality on and off road. Carli's tuned coils double suspension travel and smooth out the ride, while Carli tuned King 2.5" diameter shocks keep everything under control. Completely different from an off the shelf King shock, Carli spent months developing and tuning this system to balance commuting with everything from rock crawling to high speed whoops.
The system is backed up by all the supporting parts normally left out by cheaper
"lift kits" including a Carli track bar, radius arm drops, rear sway bar end links a rear track bar drop and more. You can also upgrade things further with the addition of a steering stabilizer, sway bar, and fabricated radius arms.
This system fits Dodge Ram 2500 4x4 trucks from 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 and 2023 with factory rear coil springs.
This system will fit 35s with no trimming on a 0 to +27 offset wheel that is no wider than 9." To fit 37s on a Ram truck we recommend a +18 to +27 offset wheel that is no wider than 9,” as well as some mild trimming of the plastic fender liner and maybe pinch weld depending on the tire.

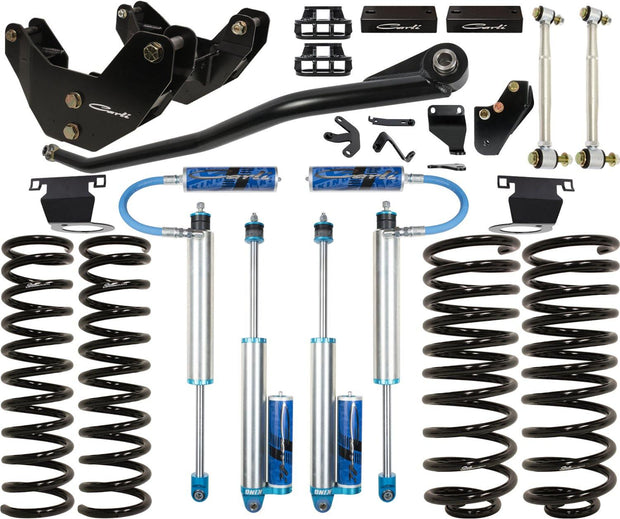

-Carli 2014+ Ram 2500 Pintop 2.5 Shock Package
-Carli Front Linear Rate 2014+ Ram 2500 Coil Springs
-Carli Rear Multi Rate 2014+ Ram 2500 Coil Springs
-Carli 2014+ Ram 2500 Adjustable Track Bar
-Carli 2014+ Ram 2500 Rear Track Bar Drop Bracket
-Carli 2014+ Ram 2500 Radius Arm Drop Brackets
-Carli Front Bump Stop Drops
-Carli 2014+ Ram 2500 Rear Sway Bar End Links
-Carli Front Billet Sway Bar Drop Brackets
-Carli 2014+ Ram 2500 Torsion Sway Bar
-Carli Ram Fabricated Radius Arms
-3" Front Lift
-1" Rear Lift
-Level Ride Height
-Unparalleled ride quality
-Incredible off road performance
-All inclusive system - no suspension upgrades required
-Most geometrically sound system on the market
-Coils have proper forces applied due to radius arm drop brackets
-Rear coil suspension "wag" is minimized
Year Model Part Number
2014-23 DODGE RAM 2500 4x4 Diesel CS-DPT25-1419-D
2014-23 DODGE RAM 2500 4x4 Hemi CS-DPT25-1419-H
|Front Lift||Rear Lift||Front Travel||Rear Travel||Shock Diameter||Tire Fitment|
|3.25″||1″||9.3″||11″||2.5″||35" / 37"
Well first off what a lot work but I got done in my garage with me and my son installing it he also has the same kit but very easy to install lot good insulation instructions. After getting all done driving it what a difference it was after getting it done with the correct wheels and tires went with the 37 and lift kit would like to add other stuff but don’t know what to do next. I think at lest a free tshirt should come with your kits I’m a 3x you want send one lol thanks
I bought the Carli back country 6" for my 05 Ram and i loved it. I decided to go with the Pintop this time for my 2019. Ride amazing best money I've spent on my truck thus far. The customer service from CJC is amazing. And I they're quick this is the second time I've used CJC and will next time.
Couldn’t be happier hands down the best in the business!
I recently purchased and installed the Carli 3.25" pintop kit and the difference is ride quality is unbelievable. The customer service I received was great! Parts were shipped quickly and well packaged. I had many questions and CJC Off Road was able to answer everything! I will DEFINITELY be using CJC and Carli again.
I called Carli and talked to a professional told him what I was looking to do and he wrote up a custom order. It was shipped and delivered to Havasu 3 days later. I had everything installed and took it out this weekend. Brand new Ram 2500. I was literally doing 50 mph plus on a unmaintained road to our Cabot that normally takes between 45-60 minutes to get to the cabin because it’s so jacked up. I made it in 15 minutes like a Cadillac. I will highly recommend Carli to everyone.
