Carli Dodge Ram 2500/3500 Extreme Duty Ball Joints 2003-2013
Carli Dodge Ram 2500/3500 Extreme Duty Ball Joints 2003-2013
Carli Dodge Ram 2500/3500 Extreme Duty Ball Joints 2003-2013
Carli Dodge Ram 2500/3500 Extreme Duty Ball Joints 2003-2013
Carli Dodge Ram 2500/3500 Extreme Duty Ball Joints 2003-2013
Carli Dodge Ram 2500/3500 Extreme Duty Ball Joints 2003-2013

Carli Dodge Ram 2500/3500 Extreme Duty Ball Joints 2003-2013

CS-DBJP-03

Usually ships in 5-6 weeks

$895.00 Save $-895.00
9580 in stock

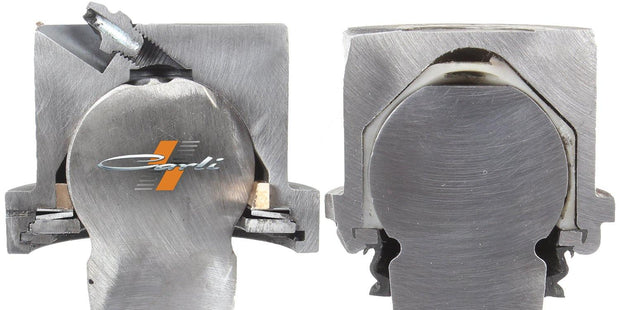

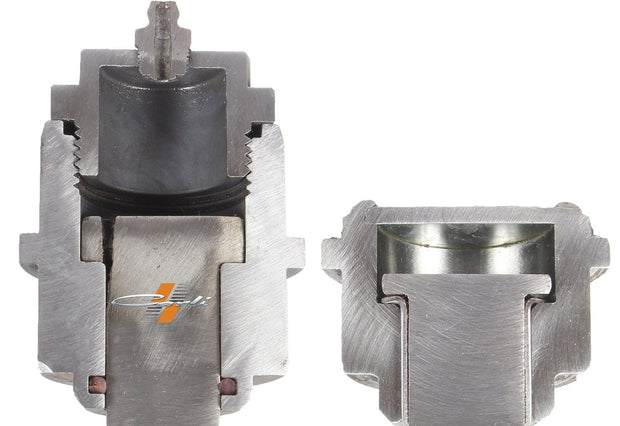

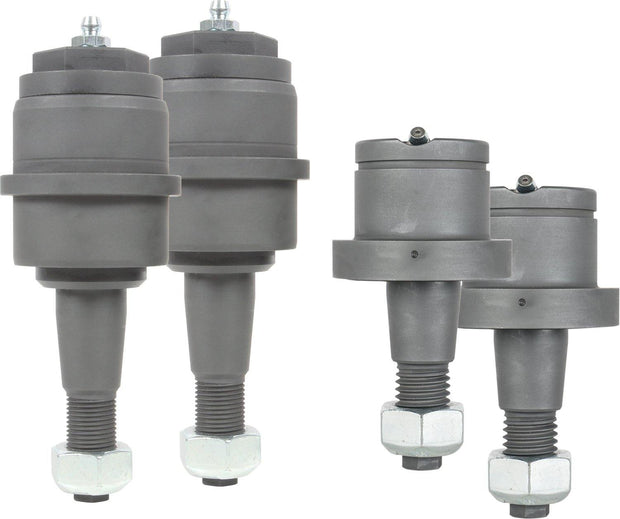

Carli's ball joints start out as a chunk of specialty chosen material which is machined to Carli's unique design and then heat treated to a specified rockwell (hardness). From there the ball joints head to an aero-space lube company where a proprietary dry-lube coating is applied to their specified thickness. Carli tops them off with an accessible zerk fitting for easy servicing, plus they even include a tube of high quality synthetic grease with each ball joint set.

SPECIFICATIONS

-Warrantied for life.
-In lieu of enumerating the materials, processes, and design characteristics of Carli's Ball Joints, they're just going to stand behind this component for as long as you own it. If for any reason the performance of Carli's Ball Joint declines, Carli will stand behind it. For the life of your purchase. After the finalization of the R&D process Carli is confident that this part will never fail.

Installation Instructions

For more details on Carli's limited lifetime warranty, click here.

You may also like

Quick view
CARLI SUSPENSION 03-13 Carli Dodge Ram Adjustable Track Bar
from $495.00
Quick view
Synergy 2003-2012 Dodge Ram 2500/3500 Heavy Duty Steering Kit
from $900.00
Quick view
Synergy Suspension 1994-2018 Dodge Ram 2500/3500 4X4 Steering Box Brace
$200.00
Quick view
Carli Suspension 2014-2018 Dodge Ram 2500/3500 Adjustable Track Bar
$495.00
Quick view
Carli Suspension 2014+ Dodge Ram Low Mount Steering Stabilizer
$320.00

CARLI SUSPENSION 03-13 Carli Dodge Ram Adjustable Track Bar

CS-DATB-03

Usually Ships in 1-5 days

$495.00 Save $-495.00

Carli's new 2003-2013 Dodge Ram 2500/3500 4x4 adjustable track bar is a must for any Dodge 2500/3500 4x4 suffering from wandering steering or with an aftermarket lift. The track bar will center the axle side to side and ensure proper suspension geometry. The track bar will also give a tighter feel to the front end by eliminating the O.E.M rubber bushings. Included with each track bar are all required spacers, crush sleeves, and shims to fit each specific vehicle's stock hardware. On one end is a custom F.K. Heim Joint that offers articulation and rigidity with an improved service life over other styles of bushing. On the opposite end is an heavy duty captured uniball bearing for maximum strength and life-span. A laser-cut gusset surrounds the uniball welded cup to ensure that this track bar will be the last you ever buy.

SPECIFICATIONS

-Constructed from 1.50" x .375" wall Chromoly tube
-CNC bent for perfect fitment
-Fixture-welded in house
-Pre-loaded captured bushing
-Captured 7/8" FK Uniball on frame side and heim joint on the axle side
-Includes misalignment spacers
-Includes sleeves for both 14MM and 16MM applications

FITMENT

Fits 1994-2013 Dodge Ram 2500 4x4 and 1994-2012 Dodge Ram 3500 4x4 trucks. Fitment on 1994-2002 trucks is possible with a 3rd Party conversion bracket, but we cannot guarantee fit or clearance.

Installation Instructions
CARLI SUSPENSION 03-13 Carli Dodge Ram Adjustable Track Bar
CARLI SUSPENSION 03-13 Carli Dodge Ram Adjustable Track Bar
CARLI SUSPENSION 03-13 Carli Dodge Ram Adjustable Track Bar
Carli Dodge Ram Adjustable Track Bar UPDATED
CARLI SUSPENSION 03-13 Carli Dodge Ram Adjustable Track Bar
CARLI SUSPENSION 03-13 Carli Dodge Ram Adjustable Track Bar
CARLI SUSPENSION 03-13 Carli Dodge Ram Adjustable Track Bar
Carli Dodge Ram Adjustable Track Bar UPDATED

Synergy 2003-2012 Dodge Ram 2500/3500 Heavy Duty Steering Kit

8525-01

Usually Ships in 1-5 days

$900.00 Save $-900.00

This Heavy Duty steering kit is a larger and stronger, bolt-on replacement for the stock steering. No drilling or reaming of the knuckles is required. It uses the updated factory T-style steering design to eliminate toe-change caused by the 02-08 Y-style steering. Using the factory T-style steering design also results in no induced bump steer inherent with most aftermarket "cross over" steering kits. The Tie Rod also uses low misalignment "wobble stopper" Tie Rod End Boots to prevent unwanted Tie Rod "flop" which results in a dead spot in the steering when changing direction. The complete kit includes a heavy duty Drag Link, heavy duty Tie Rod, and Steering Stabilizer Bracket for use with stock or aftermarket steering stabilizers using a 1/2" mounting bolt.





  • Drag Link is bent to clear factory axle brackets and is compatible from stock to 6" lifted vehicles. (Vehicles over 6" of lift will require a drop pitman arm for compatibility)
  • Drag Link is made from 1-1/2" solid 1018 bar.
  • Synergy Double Adjuster Sleeve: allows adjustment of Drag Link length without removing it from the vehicle.
  • Suspension components feature an abrasive resistant powder coat finish for maximum durability and corrosion resistance.
  • 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools.
  • Drag Link comes with Synergy HD metal on metal tie rod ends, 4133-L.
  • Strongest Dodge Drag Link on the market!



  • Tie Rod is bent similar to the factory bar to clear sway bar mounts.
  • Provides 2" of additional ground clearance from stock tie rod.
  • Made from 1-1/2" x .188 wall 4130 Chromoly and Heat Treated for maximum strength - 200% stronger than stock tie rod.
  • Synergy Double Adjuster Sleeve: allows adjustment of tie rod length without removing it from the vehicle.
  • Suspension components feature an abrasive resistant powder coat finish for maximum durability and corrosion resistance.
  • 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools.
  • Tie Rod comes with Synergy HD metal on metal tie rod ends, 4134-L.
  • Tie rod ends include low misalignment "wobble stopper" grease boots to prevent unwanted Tie Rod "flop".
  • Strongest Dodge Tie Rod on the market!



  • Fabricated clamp to retain factory or aftermarket stabilizer with 1/2" mounting bolt.
  • Fox 985-24-046 Steering Stabilizer recommended.



  • 8567-01 Drag Link
  • 8568-01 Tie Rod
  • 8568-10 Tie Rod Stabilizer Clamp
Note:

If your truck has already been upgraded to the "T" style 08.5+ steering or if your truck is a 2009 or newer, your current pitman arm will work correctly with this steering. If your truck is a 2003-2008 and your steering has not been updated, we give the option to purchase the updated Mopar pitman arm for $40.

Installation Instructions 1

 Installation Instructions 2

Customer Reviews

Based on 1 review Write a review
Synergy 2003-2012 Dodge Ram 2500/3500 Heavy Duty Steering Kit
Synergy 2003-2012 Dodge Ram 2500/3500 Heavy Duty Steering Kit
Synergy 2003-2012 Dodge Ram 2500/3500 Heavy Duty Steering Kit
Synergy 2003-2012 Dodge Ram 2500/3500 Heavy Duty Steering Kit
Synergy 2003-2012 Dodge Ram 2500/3500 Heavy Duty Steering Kit
Synergy 2003-2012 Dodge Ram 2500/3500 Heavy Duty Steering Kit
Synergy 2003-2012 Dodge Ram 2500/3500 Heavy Duty Steering Kit
Synergy 2003-2012 Dodge Ram 2500/3500 Heavy Duty Steering Kit

Synergy Suspension 1994-2018 Dodge Ram 2500/3500 4X4 Steering Box Brace

8557-04

Availability: Usually Ships in 4-8 Weeks

$200.00 Save $0.00


Synergy Manufacturing's Dodge Ram 2500/3500 4x4 Steering Box Brace is the ideal solution to support the sector shaft and tighten up the front end of your 1994-2018 Dodge Ram 2500/3500 4x4! Eliminate steering box wander due to frame flex to tighten up the front end of your truck!

FEATURES

-Ties front frame horns together
-Helps eliminate steering box "wander"
-Tightens up steering feel and extends the life of your truck's steering box
-Laser cut, CNC bent and precision welded using 1/4" Hot Rolled Steel plates, and 2.0" x .120" thick square tubing
-Black powder coat finish for maximum corrosion resistance
-100% Bolt-on installation. No cutting or drilling required!

Installation Instructions
Synergy Suspension 1994-2018 Dodge Ram 2500/3500 4X4 Steering Box Brace
Synergy Suspension 1994-2018 Dodge Ram 2500/3500 4X4 Steering Box Brace
Synergy Suspension 1994-2018 Dodge Ram 2500/3500 4X4 Steering Box Brace
Synergy Suspension 1994-2018 Dodge Ram 2500/3500 4X4 Steering Box Brace
Synergy Suspension 1994-2018 Dodge Ram 2500/3500 4X4 Steering Box Brace
Synergy Suspension 1994-2018 Dodge Ram 2500/3500 4X4 Steering Box Brace
